Singleton class for user-defined functions plugins. More...

#include <FFaUserFuncPlugin.H>

Inheritance diagram for FFaUserFuncPlugin:

Collaboration diagram for FFaUserFuncPlugin:

Public Member Functions
bool	validate (const std::string &lib, int nchar=0, char *sign=NULL)
	Checks if the named library can be loaded as a plugin. More...

bool	getSign (int nchar, char *sign) const
	Returns the signature string of the loaded plugin. More...

int	getFuncs (int maxUF, int *funcId, bool silence=false) const
	Returns a list of function types defined in the plugin. More...

int	getFuncName (int id, int nchar=0, char *name=NULL) const
	Returns a function type name. More...

int	getParName (int id, int ipar=1, int nchar=0, char *name=NULL) const
	Returns a function parameter name for a given function type. More...

double	getDefaultParVal (int id, int ipar) const
	Returns a default parameter value for a given function type. More...

const char **	getPixmap (int id) const
	Returns a pointer to a pixmap to display in the property panel. More...

int	getFlag (int id) const
	Returns the function flag for a given function type, id. More...

double	getValue (int bId, int fId, const double *params, double x, int &err) const
	Evaluates single-argument user-defined functions. More...

double	getValue (int bId, int fId, const double params, const double args, int &err) const
	Evaluates multi-argument user-defined functions. More...

double	getDiff (int bId, int fId, int ia, const double params, const double args, int &err) const
	Evaluates a derivative of multi-argument user-defined functions. More...

int	wave (int bId, int fId, double d, double g, const double params, const double args, double &h, double u, double du) const
	Evaluates user-defined wave functions. More...

Public Member Functions inherited from FFaDynamicLibraryBase
bool	load (const std::string &libName, bool silence=false)
	Loads the library named libName. More...

bool	unload (const std::string &libName, bool silence=false)
	Unloads the library named libName. More...

void	unloadAll ()
	Unloads all libraries and clears the function cache. More...

bool	areLibsLoaded () const
	Returns whether dynamics libraries have been loaded or not. More...

const char *	getLibrary (size_t idx=1) const
	Returns the file name of the dynamic library, if loaded. More...

Friends
class	FFaSingelton< FFaUserFuncPlugin >

Additional Inherited Members
Static Public Member Functions inherited from FFaSingelton< FFaUserFuncPlugin >
static FFaUserFuncPlugin *	instance ()
	Returns the actual instance of this class. More...

static void	removeInstance ()
	Deletes the dynamically allocated instance. More...

static bool	allocated ()
	Returns true, if the instance has been allocated. More...

Protected Types inherited from FFaDynamicLibraryBase
enum	LanguageBinding { Undefined , C , Fortran }
	Enums defining the supported language bindings. More...

Protected Member Functions inherited from FFaDynamicLibraryBase
	FFaDynamicLibraryBase ()
	Default constructor. More...

virtual	~FFaDynamicLibraryBase ()
	The destructor unloads all dynamically loaded libraries. More...

DLPROC	getProcAddr (const std::string &fName, bool silence=false) const
	Returns the function pointer for the named function. More...

DLPROC	getProcAddr (const std::string &cName, const std::string &fName, LanguageBinding &lang, bool silence=false) const
	Returns the function pointer for the named function. More...

DLPROC	getProcAddress (const std::string &fName, size_t procID) const
	Returns the function pointer for the given function. More...

DLPROC	getProcAddress (const std::string &cName, const std::string &fName, LanguageBinding &lang, size_t procID) const
	Returns the function pointer for the given function. More...

Protected Member Functions inherited from FFaSingelton< FFaUserFuncPlugin >
	FFaSingelton ()
	The constructor is protected to allow objects of sub-classes only. More...

	FFaSingelton (const FFaSingelton &)=delete
	Disable default copy constructor. More...

FFaSingelton &	operator= (const FFaSingelton &)=delete
	Disable default assignment operator. More...

Detailed Description

Singleton class for user-defined functions plugins.

Member Function Documentation

◆ getDefaultParVal()

double FFaUserFuncPlugin::getDefaultParVal	(	int	id,
		int	ipar
	)		const

Returns a default parameter value for a given function type.

Parameters

[in]	id	Unique id identifying the function type
[in]	ipar	Function parameter index

◆ getDiff()

double FFaUserFuncPlugin::getDiff	(	int	bId,
		int	fId,
		int	ia,
		const double *	params,
		const double *	args,
		int &	err
	)		const

Evaluates a derivative of multi-argument user-defined functions.

Parameters

[in]	bId	Base id of the function instance
[in]	fId	Unique id identifying the function type
[in]	ia	Index of the argument of differentiate with respect to
[in]	params	Array of constant function parameters
[in]	args	Function arguments
[in]	err	Error indicator

◆ getFlag()

int FFaUserFuncPlugin::getFlag ( int id ) const

Returns the function flag for a given function type, id.

This flag is used to trigger different handling of the user-defined function in the Fedem dynamics solver:
0 : No particular treatment, the function is evaluated only when needed
1 : (Pre)evaluate this function in the beginning of each increment
2 : Evaluate this function at the end og each time increment
4 : This is a user-defined wave function

◆ getFuncName()

int FFaUserFuncPlugin::getFuncName	(	int	id,
		int	nchar = `0`,
		char *	name = `NULL`
	)		const

Returns a function type name.

Parameters

[in]	id	Unique id identifying the function type
[in]	nchar	Max length of the function type name
[out]	name	The function type name corresponding to id

Returns: Number of arguments for the function type

◆ getFuncs()

int FFaUserFuncPlugin::getFuncs	(	int	maxUF,
		int *	funcId,
		bool	silence = `false`
	)		const

Returns a list of function types defined in the plugin.

Parameters

[in]	maxUF	Max number of user-defined function types
[out]	funcId	List of unique ids identifying each function type
[in]	silence	If true, suppress error messages

Returns: Number of different function types in the plugin

◆ getParName()

int FFaUserFuncPlugin::getParName	(	int	id,
		int	ipar = `1`,
		int	nchar = `0`,
		char *	name = `NULL`
	)		const

Returns a function parameter name for a given function type.

Parameters

[in]	id	Unique id identifying the function type
[in]	ipar	Function parameter index
[in]	nchar	Max length of the function parameter name
[out]	name	The name of the parameter

Returns: Total number of parameters for this function type

◆ getPixmap()

const char ** FFaUserFuncPlugin::getPixmap ( int id ) const

Returns a pointer to a pixmap to display in the property panel.

◆ getSign()

bool FFaUserFuncPlugin::getSign	(	int	nchar,
		char *	sign
	)		const

Returns the signature string of the loaded plugin.

Parameters

[in]	nchar	Max length of the signature string
[out]	sign	A signature string describing the loaded plugin

◆ getValue() [1/2]

double FFaUserFuncPlugin::getValue	(	int	bId,
		int	fId,
		const double *	params,
		const double *	args,
		int &	err
	)		const

Evaluates multi-argument user-defined functions.

Parameters

[in]	bId	Base id of the function instance
[in]	fId	Unique id identifying the function type
[in]	params	Array of constant function parameters
[in]	args	Function arguments
[in]	err	Error indicator

◆ getValue() [2/2]

double FFaUserFuncPlugin::getValue	(	int	bId,
		int	fId,
		const double *	params,
		double	x,
		int &	err
	)		const

Evaluates single-argument user-defined functions.

Parameters

[in]	bId	Base id of the function instance
[in]	fId	Unique id identifying the function type
[in]	params	Array of constant function parameters
[in]	x	Function argument
[in]	err	Error indicator

◆ validate()

bool FFaUserFuncPlugin::validate	(	const std::string &	lib,
		int	nchar = `0`,
		char *	sign = `NULL`
	)

Checks if the named library can be loaded as a plugin.

Parameters

[in]	lib	Full path to the dynamic library
[in]	nchar	Max length of the signature string
[out]	sign	A signature string describing the loaded plugin

This method is only used to detect whether the name shared object library lib is a plugin containing user-defined function types or not. The method returns true if that is the case, otherwise false.

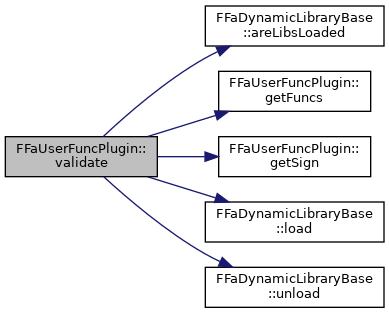

Here is the call graph for this function:

◆ wave()

int FFaUserFuncPlugin::wave	(	int	bId,
		int	fId,
		double	d,
		double	g,
		const double *	params,
		const double *	args,
		double &	h,
		double *	u,
		double *	du
	)		const

Evaluates user-defined wave functions.

Parameters

[in]	bId	Base id of the function instance
[in]	fId	Unique id identifying the function type
[in]	d	Water depth
[in]	g	Gravity constant
[in]	params	Array of constant function parameters
[in]	args	Function arguments
[out]	h	Wave elevation
[out]	u	Particle velocity
[out]	du	Particle acceleration

Friends And Related Function Documentation

◆ FFaSingelton< FFaUserFuncPlugin >

friend class FFaSingelton< FFaUserFuncPlugin >

friend

The documentation for this class was generated from the following files:

fedem-foundation/src/FFaFunctionLib/FFaUserFuncPlugin.H
fedem-foundation/src/FFaFunctionLib/FFaUserFuncPlugin.C
