FiUserElmPlugin Class Reference

Singleton class for user-defined element plugins. More...

#include <FiUserElmPlugin.H>

Inheritance diagram for FiUserElmPlugin:

Collaboration diagram for FiUserElmPlugin:

Public Member Functions
bool	validate (const std::string &libName, int nchar=0, char *sign=NULL)
	Checks if the named library can be loaded as a plugin. More...
bool	getSign (int nchar, char *sign, bool silence=false)
	Returns the signature string of the loaded plugin. More...
int	getElementTypes (int maxUE, int *eType)
	Returns a list of element types defined in the plugin. More...
int	getTypeName (int eType, int nchar, char *name)
	Returns the name of an element type. More...
int	init (const double *gdata)
	Initializes the plugin. More...
int	init (int eId, int eType, int nenod, int nedof, int &niwork, int &nrwork)
	Returns the required length of the work areas for a given element. More...
int	init (int eId, int eType, int nenod, int nedof, const double *X, const double *T, int *iwork, double *rwork)
	Initializes the state-independent part of the element work areas. More...
int	mass (int eId, int eType, int nenod, const double *X, int *iwork, double *rwork, double &mass)
	Calculates the total mass for a given user-defined element. More...
int	update (int eId, int eType, int nenod, int nedof, const double *X, const double *T, const double *V, const double *A, int *iwork, double *rwork, double *Kt, double *Ct, double *M, double *Fs, double *Fd, double *Fi, double *Q, double t, double dt, int istep, int iter)
	Updates the state of a given user-defined element. More...
int	origin (int eId, int eType, int nenod, const double *X, const double *T, const int *iwork, const double *rwork, double *Tlg)
	Calculates the local origin of a user-defined element. More...
int	result (int eId, int eType, int idx, const int *iwork, const double *rwork, int nchar, char *name)
	Returns the name of a result quantity of a user-defined element. More...
int	result (int eId, int eType, int idx, const int *iwork, const double *rwork, double &value)
	Returns the value of a result quantity of a user-defined element. More...
Public Member Functions inherited from FFaDynamicLibraryBase
bool	load (const std::string &libName, bool silence=false)
	Loads the library named libName. More...
bool	unload (const std::string &libName, bool silence=false)
	Unloads the library named libName. More...
void	unloadAll ()
	Unloads all libraries and clears the function cache. More...
bool	areLibsLoaded () const
	Returns whether dynamics libraries have been loaded or not. More...
const char *	getLibrary (size_t idx=1) const
	Returns the file name of the dynamic library, if loaded. More...

Protected Member Functions
	FiUserElmPlugin ()
	Default constructor. More...
virtual	~FiUserElmPlugin ()
	Empty destructor. More...
Protected Member Functions inherited from FFaDynamicLibraryBase
	FFaDynamicLibraryBase ()
	Default constructor. More...
virtual	~FFaDynamicLibraryBase ()
	The destructor unloads all dynamically loaded libraries. More...
DLPROC	getProcAddr (const std::string &fName, bool silence=false) const
	Returns the function pointer for the named function. More...
DLPROC	getProcAddr (const std::string &cName, const std::string &fName, LanguageBinding &lang, bool silence=false) const
	Returns the function pointer for the named function. More...
DLPROC	getProcAddress (const std::string &fName, size_t procID) const
	Returns the function pointer for the given function. More...
DLPROC	getProcAddress (const std::string &cName, const std::string &fName, LanguageBinding &lang, size_t procID) const
	Returns the function pointer for the given function. More...
Protected Member Functions inherited from FFaSingelton< FiUserElmPlugin >
	FFaSingelton ()
	The constructor is protected to allow objects of sub-classes only. More...
	FFaSingelton (const FFaSingelton &)=delete
	Disable default copy constructor. More...
FFaSingelton &	operator= (const FFaSingelton &)=delete
	Disable default assignment operator. More...

Friends
class	FFaSingelton< FiUserElmPlugin >

Additional Inherited Members
Static Public Member Functions inherited from FFaSingelton< FiUserElmPlugin >
static FiUserElmPlugin *	instance ()
	Returns the actual instance of this class. More...
static void	removeInstance ()
	Deletes the dynamically allocated instance. More...
static bool	allocated ()
	Returns true, if the instance has been allocated. More...
Protected Types inherited from FFaDynamicLibraryBase
enum	LanguageBinding { Undefined , C , Fortran }
	Enums defining the supported language bindings. More...

Detailed Description

Singleton class for user-defined element plugins.

Constructor & Destructor Documentation

FiUserElmPlugin()

FiUserElmPlugin::FiUserElmPlugin ( )

inlineprotected

Default constructor.

~FiUserElmPlugin()

virtual FiUserElmPlugin::~FiUserElmPlugin ( )

inlineprotectedvirtual

Empty destructor.

Member Function Documentation

getElementTypes()

int FiUserElmPlugin::getElementTypes	(	int	maxUE,
		int *	eType
	)

Returns a list of element types defined in the plugin.

Parameters

[in]	maxUE	Max number of user-defined element types
[out]	eType	List of unique ids identifying each element type

Returns

Number of different element types in the plugin

Here is the call graph for this function:

getSign()

bool FiUserElmPlugin::getSign	(	int	nchar,
		char *	sign,
		bool	silence = false
	)

Returns the signature string of the loaded plugin.

Parameters

[in]	nchar	Max length of the signature string
[out]	sign	A signature string describing the loaded plugin
[in]	silence	If true, suppress error messages

Here is the call graph for this function:

Here is the caller graph for this function:

getTypeName()

int FiUserElmPlugin::getTypeName	(	int	eType,
		int	nchar,
		char *	name
	)

Returns the name of an element type.

Parameters

[in]	eType	Unique id identifying the element type
[in]	nchar	Max length of the element type name
[out]	name	The element type name corresponding to eType

Returns

Number of nodes for the element type

Here is the call graph for this function:

init() [1/3]

int FiUserElmPlugin::init

(

const double *

gdata

)

Initializes the plugin.

Parameters

[in]

gdata

Global parameters that applies to all elements

Here is the call graph for this function:

Here is the caller graph for this function:

init() [2/3]

int FiUserElmPlugin::init	(	int	eId,
		int	eType,
		int	nenod,
		int	nedof,
		const double *	X,
		const double *	T,
		int *	iwork,
		double *	rwork
	)

Initializes the state-independent part of the element work areas.

Parameters

[in]	eId	Unique id identifying this element instance (the baseID)
[in]	eType	Unique id identifying the element type
[in]	nenod	Number of element nodes
[in]	nedof	Number of element degrees of freedom
[in]	X	Global initial nodal coordinates of the element
[in]	T	Local initial nodal coordinate systems of the element
	iwork	Integer work area for this element
	rwork	Real work area for this element

Here is the call graph for this function:

init() [3/3]

int FiUserElmPlugin::init	(	int	eId,
		int	eType,
		int	nenod,
		int	nedof,
		int &	niwork,
		int &	nrwork
	)

Returns the required length of the work areas for a given element.

Parameters

[in]	eId	Unique id identifying this element instance (the baseID)
[in]	eType	Unique id identifying the element type
[in]	nenod	Number of element nodes
[in]	nedof	Number of element degrees of freedom
[out]	niwork	Required size of the integer work area for this element
[out]	nrwork	Required size of the real work area for this element

Here is the call graph for this function:

mass()

int FiUserElmPlugin::mass	(	int	eId,
		int	eType,
		int	nenod,
		const double *	X,
		int *	iwork,
		double *	rwork,
		double &	mass
	)

Calculates the total mass for a given user-defined element.

Parameters

[in]	eId	Unique id identifying this element instance (the baseID)
[in]	eType	Unique id identifying the element type
[in]	nenod	Number of element nodes
[in]	X	Global initial nodal coordinates of the element
	iwork	Integer work area for this element
	rwork	Real work area for this element
[out]	mass	Mass of the element

Here is the call graph for this function:

Here is the caller graph for this function:

origin()

int FiUserElmPlugin::origin	(	int	eId,
		int	eType,
		int	nenod,
		const double *	X,
		const double *	T,
		const int *	iwork,
		const double *	rwork,
		double *	Tlg
	)

Calculates the local origin of a user-defined element.

Parameters

[in]	eId	Unique id identifying this element instance (the baseID)
[in]	eType	Unique id identifying the element type
[in]	nenod	Number of element nodes
[in]	X	Global nodal coordinates of the element
[in]	T	Local nodal coordinate systems of the element
[in]	iwork	Integer work area for this element
[in]	rwork	Real work area for this element
[out]	Tlg	Local-to-global transformation matrix for this element

This function is invoked once per element in pre- and post-processing tasks, requiring the position of current element. It does not affect the response simulation.

Here is the call graph for this function:

Here is the caller graph for this function:

result() [1/2]

int FiUserElmPlugin::result	(	int	eId,
		int	eType,
		int	idx,
		const int *	iwork,
		const double *	rwork,
		double &	value
	)

Returns the value of a result quantity of a user-defined element.

Parameters

[in]	eId	Unique id identifying this element instance (the baseID)
[in]	eType	Unique id identifying the element type
[in]	idx	Result quantity index
[in]	iwork	Integer work area for this element
[in]	rwork	Real work area for this element
[out]	value	The result quantity

Returns

Total number of result quantities for this element

Zero, if idx is out of range

This function is invoked once per element as a pre-processing task, when saving results to file.

Here is the call graph for this function:

result() [2/2]

int FiUserElmPlugin::result	(	int	eId,
		int	eType,
		int	idx,
		const int *	iwork,
		const double *	rwork,
		int	nchar,
		char *	name
	)

Returns the name of a result quantity of a user-defined element.

Parameters

[in]	eId	Unique id identifying this element instance (the baseID)
[in]	eType	Unique id identifying the element type
[in]	idx	Result quantity index
[in]	iwork	Integer work area for this element
[in]	rwork	Real work area for this element
[in]	nchar	Maximum length of the result quantity name
[out]	name	Name of result quantity

Returns

Total number of result quantities for this element

Zero, if idx is out of range

This function is invoked once as per element as a post-processing task after each time increment, when saving results to file.

Here is the call graph for this function:

Here is the caller graph for this function:

update()

int FiUserElmPlugin::update	(	int	eId,
		int	eType,
		int	nenod,
		int	nedof,
		const double *	X,
		const double *	T,
		const double *	V,
		const double *	A,
		int *	iwork,
		double *	rwork,
		double *	Kt,
		double *	Ct,
		double *	M,
		double *	Fs,
		double *	Fd,
		double *	Fi,
		double *	Q,
		double	t,
		double	dt,
		int	istep,
		int	iter
	)

Updates the state of a given user-defined element.

Parameters

[in]	eId	Unique id identifying this element instance (the baseID)
[in]	eType	Unique id identifying the element type
[in]	nenod	Number of element nodes
[in]	nedof	Number of element degrees of freedom
[in]	X	Global nodal coordinates of the element
[in]	T	Local nodal coordinate systems of the element
[in]	V	Global nodal velocities of the element
[in]	A	Global nodal accelerations of the element
	iwork	Integer work area for this element
	rwork	Real work area for this element
[out]	Kt	Tangent stiffness matrix
[out]	Ct	Damping matrix
[out]	M	Mass matrix
[out]	Fs	Internal elastic forces
[out]	Fd	Damping forces
[out]	Fi	Intertia forces
[out]	Q	External forces
[in]	t	Current time
[in]	dt	Time step size
[in]	istep	Time step number
[in]	iter	Iteration number

This function is invoked once per element within the Newton iteration loop. It evaluates the updated tangent matrices and associated force vectors of the current linearized dynamic equilibrium equation.

Here is the call graph for this function:

Here is the caller graph for this function:

validate()

bool FiUserElmPlugin::validate	(	const std::string &	libName,
		int	nchar = 0,
		char *	sign = NULL
	)

Checks if the named library can be loaded as a plugin.

Parameters

[in]	libName	Full path to the dynamic library.
[in]	nchar	Max length of the signature string
[out]	sign	A signature string describing the loaded plugin return true if the named plugin contains user-defined element types.

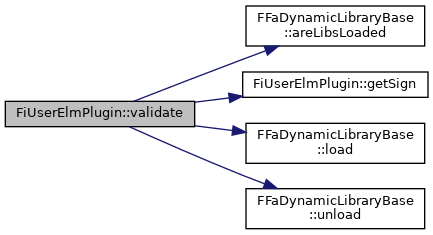

Here is the call graph for this function:

Friends And Related Function Documentation

FFaSingelton< FiUserElmPlugin >

friend class FFaSingelton< FiUserElmPlugin >

friend

---

The documentation for this class was generated from the following files:

• fedem-foundation/src/FiUserElmPlugin/FiUserElmPlugin.H
• fedem-foundation/src/FiUserElmPlugin/FiUserElmPlugin.C
