addinsysmodule Module Reference

Module with subroutines for system-level assembly. More...

Functions/Subroutines
subroutine	buildnewtonmat (Nmat, scaleM, scaleC, scaleK, mech, sam, iter, stressStiffUpdateSkip, globalStressStiffIsOn, alpha2, ierr, Rhs)
	Builds the system Newton matrix. More...
subroutine	buildmassmat (Mmat, mech, sam, ierr)
	Builds the system mass matrix. More...
subroutine	builddampermat (Cmat, mech, sam, ierr)
	Builds the system damping matrix. More...
subroutine	buildstiffmat (Kmat, mech, sam, iter, globalStressStiffIsOn, stressStiffUpdateSkip, ierr, Rhs)
	Builds the system stiffness matrix. More...
subroutine	getforcevectors (FSk, FDk, FIk, Qk, RFk, sam, mech, istep, alpha2, ierr)
	Builds the system force vectors. More...
subroutine	getstaticforcevectors (FSk, Qk, RFk, sam, mech, ierr)
	Builds the quasti-static system force vectors. More...

Detailed Description

Module with subroutines for system-level assembly.

This module contains subroutines for assembling the system left-hand-side matrices and associated right-hand-side force vectors of the linearized equation system.

Function/Subroutine Documentation

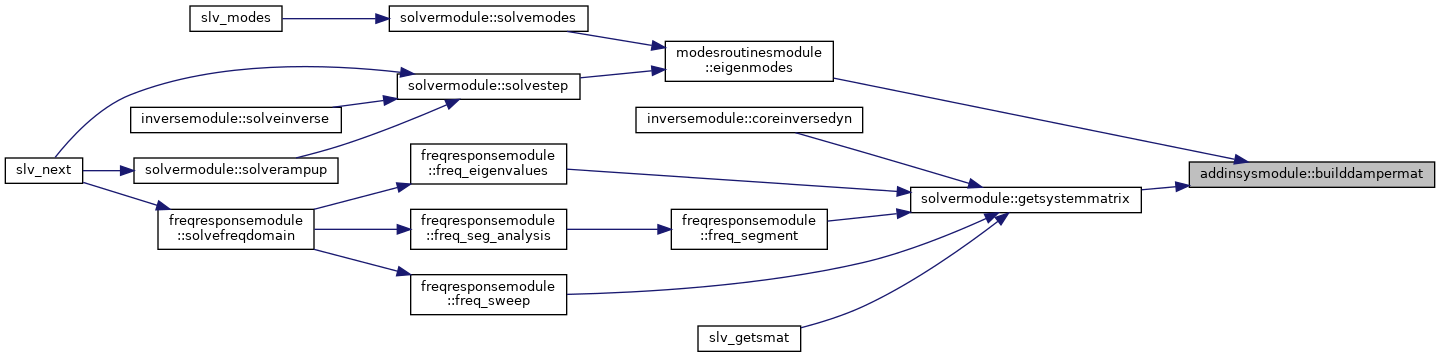

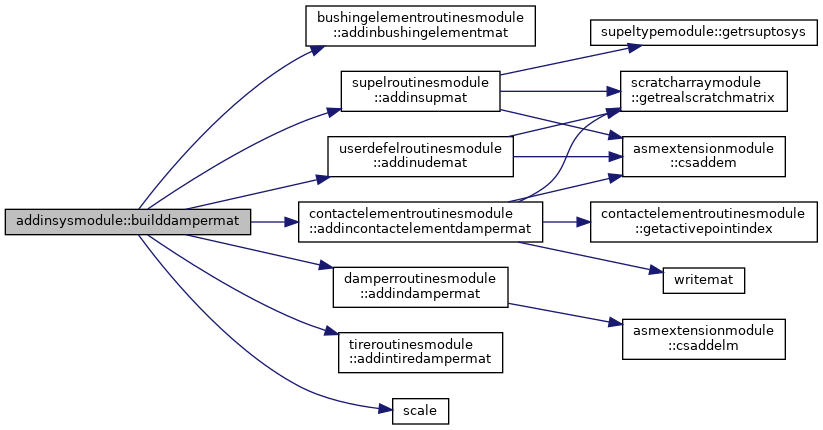

builddampermat()

subroutine addinsysmodule::builddampermat	(	type(sysmatrixtype), intent(inout)	Cmat,
		type(mechanismtype), intent(in)	mech,
		type(samtype), intent(in)	sam,
		integer, intent(out)	ierr
	)

Builds the system damping matrix.

Parameters

	Cmat	The system damping matrix
[in]	mech	Mechanism components of the model
[in]	sam	Data for managing system matrix assembly
[out]	ierr	Error flag

Author

Knut Morten Okstad

Date

Jul 2002

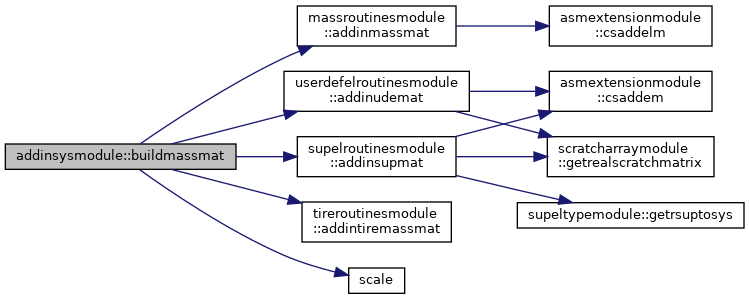

buildmassmat()

subroutine addinsysmodule::buildmassmat	(	type(sysmatrixtype), intent(inout)	Mmat,
		type(mechanismtype), intent(in)	mech,
		type(samtype), intent(in)	sam,
		integer, intent(out)	ierr
	)

Builds the system mass matrix.

Parameters

	Mmat	The system mass matrix
[in]	mech	Mechanism components of the model
[in]	sam	Data for managing system matrix assembly
[out]	ierr	Error flag

Author

Karl Erik Thoresen

Date

Aug 1999

Author

Knut Morten Okstad

Date

Jul 2002

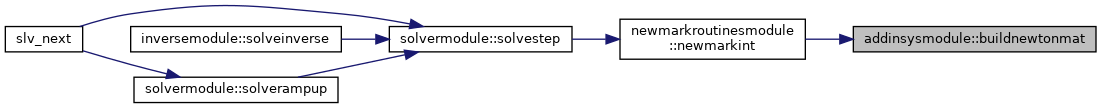

buildnewtonmat()

subroutine addinsysmodule::buildnewtonmat	(	type(sysmatrixtype), intent(inout)	Nmat,
		real(dp), intent(in)	scaleM,
		real(dp), intent(in)	scaleC,
		real(dp), intent(in)	scaleK,
		type(mechanismtype), intent(inout)	mech,
		type(samtype), intent(in)	sam,
		integer, intent(in)	iter,
		integer, intent(in)	stressStiffUpdateSkip,
		logical, intent(in)	globalStressStiffIsOn,
		real(dp), intent(in)	alpha2,
		integer, intent(out)	ierr,
		real(dp), dimension(:), intent(inout), optional	Rhs
	)

Builds the system Newton matrix.

Parameters

	Nmat	The system Newton matrix
[in]	scaleM	Scaling factor for the system mass matrix
[in]	scaleC	Scaling factor for the system damping matrix
[in]	scaleK	Scaling factor for the system stiffness matrix
	mech	Mechanism components of the model
[in]	sam	Data for managing system matrix assembly
[in]	iter	Iteration counter
[in]	stressStiffUpdateSkip	Number of initial iterations without stress stiffening in each time step
[in]	globalStressStiffIsOn	Global stress stiffening flag
[in]	alpha2	Stiffness-proportional damping factor for axial springs
[out]	ierr	Error flag
	Rhs	Right-hand-side force vector

The Newton matrix is a linear combination of the mass-, damping- and stiffness matrices, Nmat = scaleM*M + scaleC*C + scaleK*K. If Rhs is provided, contributions due to prescribed motions, if any, will be added.

Author

Karl Erik Thoresen

Date

Feb 1999

Author

Bjorn Haugen

Date

Des 2000

Author

Knut Morten Okstad

Date

Jul 2002

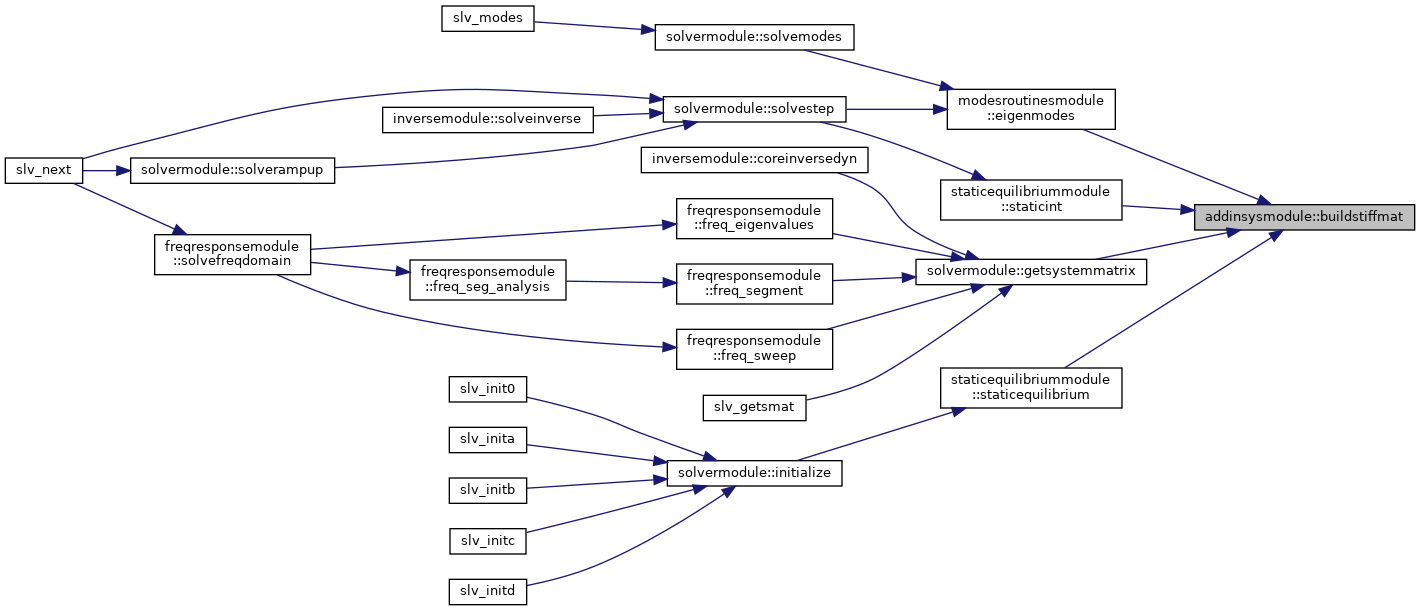

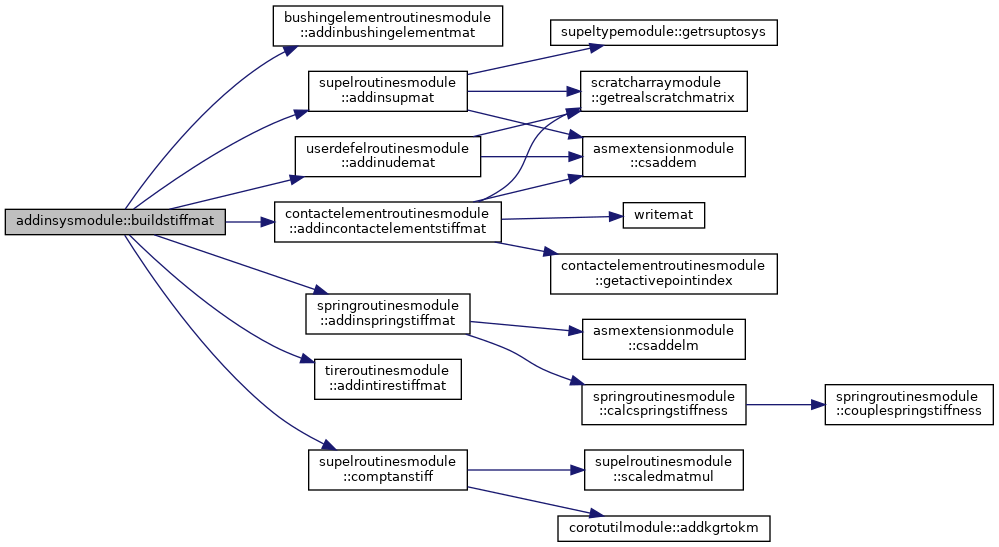

buildstiffmat()

subroutine addinsysmodule::buildstiffmat	(	type(sysmatrixtype), intent(inout)	Kmat,
		type(mechanismtype), intent(inout)	mech,
		type(samtype), intent(in)	sam,
		integer, intent(in)	iter,
		logical, intent(in)	globalStressStiffIsOn,
		integer, intent(in)	stressStiffUpdateSkip,
		integer, intent(out)	ierr,
		real(dp), dimension(:), intent(inout), optional	Rhs
	)

Builds the system stiffness matrix.

Parameters

	Kmat	The system stiffness matrix
	mech	Mechanism components of the model
[in]	sam	Data for managing system matrix assembly
[in]	iter	Iteration counter (< 0 for eigenvalue analysis)
[in]	globalStressStiffIsOn	Global stress stiffening flag
[in]	stressStiffUpdateSkip	Number of initial iterations without stress stiffening in each time step
[out]	ierr	Error flag
	Rhs	Right-hand-side force vector

If Rhs is provided, contributions due to prescribed motions, if any, will be added.

Author

Karl Erik Thoresen

Date

Aug 1999

Author

Knut Morten Okstad

Date

Jul 2002

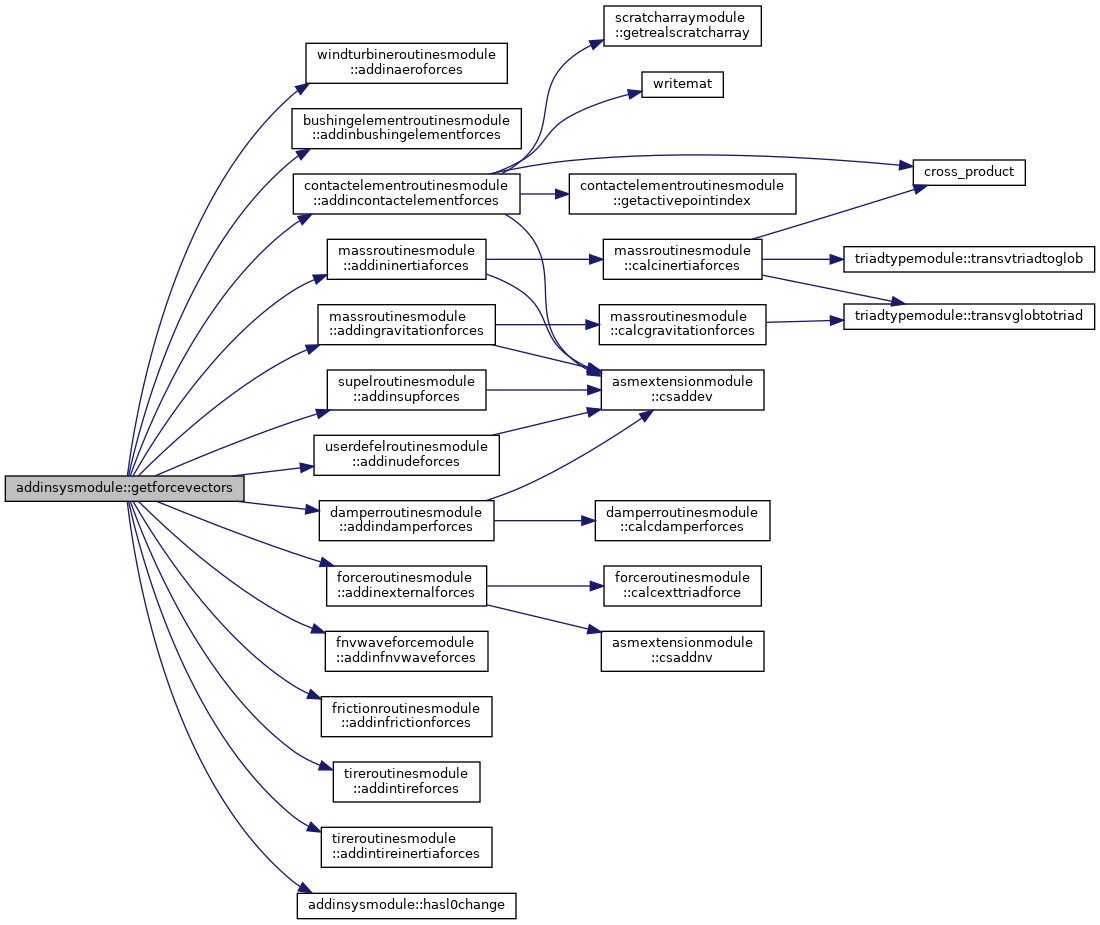

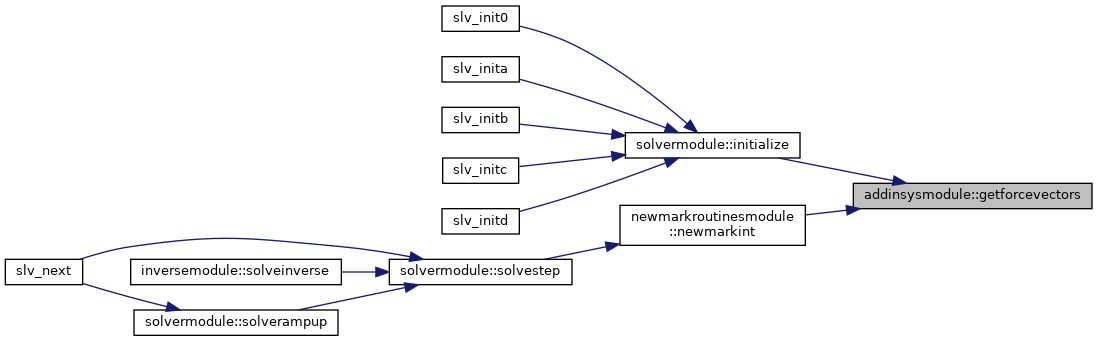

getforcevectors()

subroutine addinsysmodule::getforcevectors	(	real(dp), dimension(:), intent(out)	FSk,
		real(dp), dimension(:), intent(out)	FDk,
		real(dp), dimension(:), intent(out)	FIk,
		real(dp), dimension(:), intent(out)	Qk,
		real(dp), dimension(:), intent(out)	RFk,
		type(samtype), intent(in)	sam,
		type(mechanismtype), intent(inout)	mech,
		integer(i8), intent(in)	istep,
		real(dp), intent(in)	alpha2,
		integer, intent(out)	ierr
	)

Builds the system force vectors.

Parameters

[out]	FSk	Internal stiffness forces
[out]	FDk	Internal damping forces
[out]	FIk	Internal inertia forces
[out]	Qk	External forces
[out]	RFk	Reaction forces
[in]	sam	Data for managing system matrix assembly
	mech	Mechanism components of the model
[in]	istep	Time increment counter
[in]	alpha2	Stiffness-proportional damping factor for axial springs
[out]	ierr	Error flag

this subroutine puts forces from all mechanism components into the associated system force vectors.

Author

Ole Ivar Sivertsen

Date

19 Jan 1989

Author

Karl Erik Thoresen

Date

1999

Author

Bjorn Haugen

Date

2001

Author

Knut Morten Okstad

Date

Jun 2002

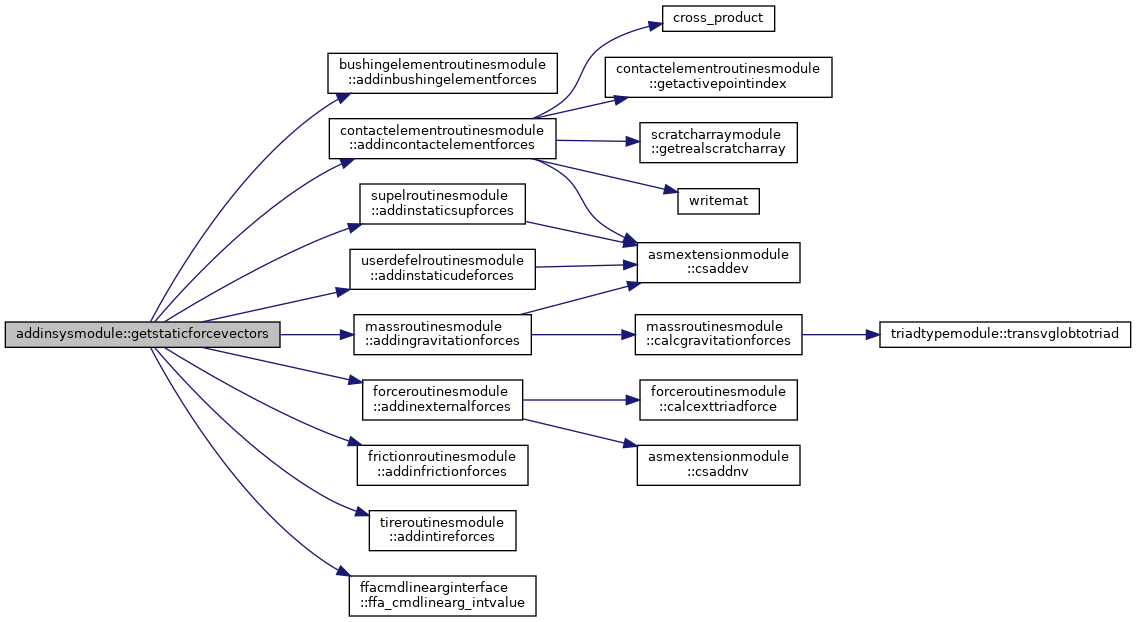

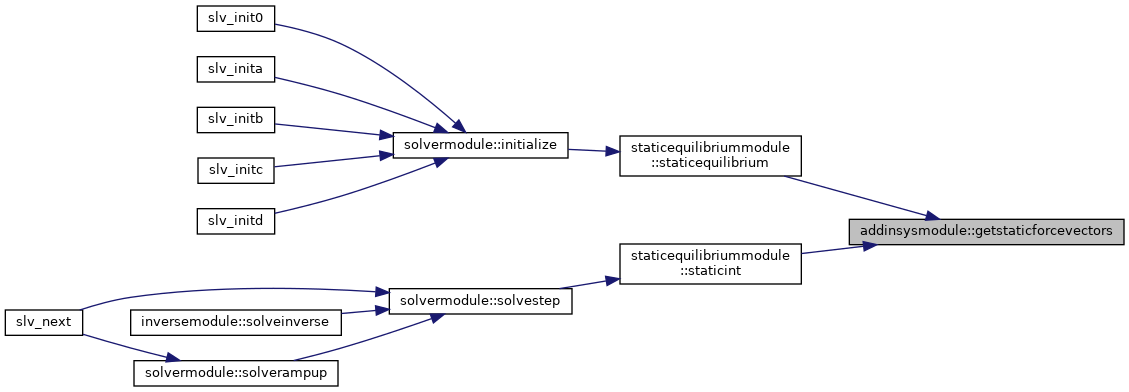

getstaticforcevectors()

subroutine addinsysmodule::getstaticforcevectors	(	real(dp), dimension(:), intent(out)	FSk,
		real(dp), dimension(:), intent(out)	Qk,
		real(dp), dimension(:), intent(out)	RFk,
		type(samtype), intent(in)	sam,
		type(mechanismtype), intent(inout)	mech,
		integer, intent(out)	ierr
	)

Builds the quasti-static system force vectors.

Parameters

[out]	FSk	Internal stiffness forces
[out]	Qk	External forces
[out]	RFk	Reaction forces
[in]	sam	Data for managing system matrix assembly
	mech	Mechanism components of the model
[out]	ierr	Error flag

this subroutine puts static forces from all mechanism components into the associated system force vectors.

Author

Knut Morten Okstad

Date

Jun 2002
