Module with data types representing control system object of a model. More...

Data Types
type	ctrlprm
	Data type representing a control input parameter. More...

type	controltype
	Data type representing the control system of a model. More...

interface	writeobject
	Standard routine for writing an object to file. More...

Functions/Subroutines
subroutine, public	nullifyctrl (ctrl, deallocating)
	Initializes a control system object. More...

subroutine, public	deallocatectrl (ctrl, staticData)
	Deallocates a control system object. More...

subroutine, public	copyctrl (ctrlIn, ctrlCopy, ierr)
	Makes a copy of a control system object. More...

subroutine, public	readcontrolsystem (infp, engines, ctrl, ierr)
	Initializes the ControlType object with data from the input file. More...

subroutine, public	initiatecontrol (mpar, ctrl)
	Initializes the SAM control array MPAR with control system data. More...

subroutine	readcontrolinput (infp, engines, input, mstat, ierr)
	Reads data for the control inputs from the solver input file. More...

subroutine	readcontrolelements (infp, nCEl, nDelay, mpmtop, mprpar, mmtop, rpar, iprint, lpu, ierr)
	Reads data for the control elements from the solver input file. More...

subroutine	readcontrolvariables (infp, mstat, vreg, vregId, mvar, iprint, lpu, ierr)
	Reads status codes and initial conditions for the control variables. More...

subroutine	writecontroltype (ctrl, io, complexity)
	Standard routine for writing an object to io. More...

logical function, public	hascontrolelements (ctrl)
	Checks if control elements are present in the model. More...

type(sensortype) function, pointer, public	getsensor (input)
	Returns sensor measuring structural response for an input element. More...

subroutine, public	writectrlsysheader (ctrl, mechId, rdb)
	Writes results database headers for the control system. More...

subroutine, public	writectrlsysdb (rdb, ctrl, nStep, time, ierr)
	Writes control system data to the results database. More...

Detailed Description

Module with data types representing control system object of a model.

The module also contains subroutines for initializing the control system from the input file, as well as general subroutines and functions for for accessing the control system data.

Function/Subroutine Documentation

◆ copyctrl()

subroutine, public controltypemodule::copyctrl	(	type(controltype), intent(in)	ctrlIn,
		type(controltype), pointer	ctrlCopy,
		integer, intent(out), optional	ierr
	)

Makes a copy of a control system object.

Parameters

[in]	ctrlIn	The controltypemodule::controltype object to copy from
	ctrlCopy	Pointer to the copied controltypemodule::controltype object
[out]	ierr	Error flag

If the ctrlCopy pointer is NULL on input, the object is allocated to match the dimension of the ctrlIn object. Otherwise, it is assumed that the data members have the correct sizes. Only the dynamic data members are copied physically. The static members, which not are supposed to change after data input, are shared.

Author: Knut Morten Okstad

Date: 18 Jan 2024

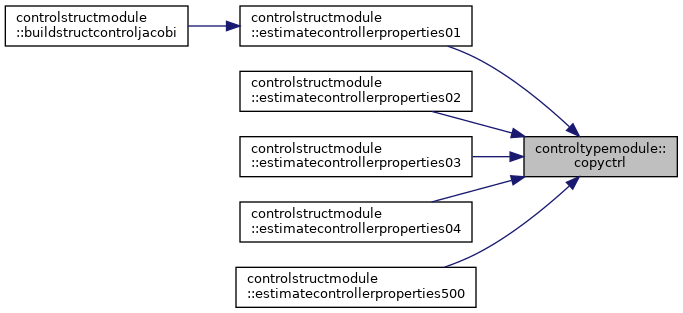

Here is the caller graph for this function:

◆ deallocatectrl()

subroutine, public controltypemodule::deallocatectrl	(	type(controltype), intent(inout)	ctrl,
		logical, intent(in), optional	staticData
	)

Deallocates a control system object.

Parameters

	ctrl	The controltypemodule::controltype object to deallocate
[in]	staticData	If .true., also deallocate the static data members

Author: Knut Morten Okstad

Date: 23 Jan 2017

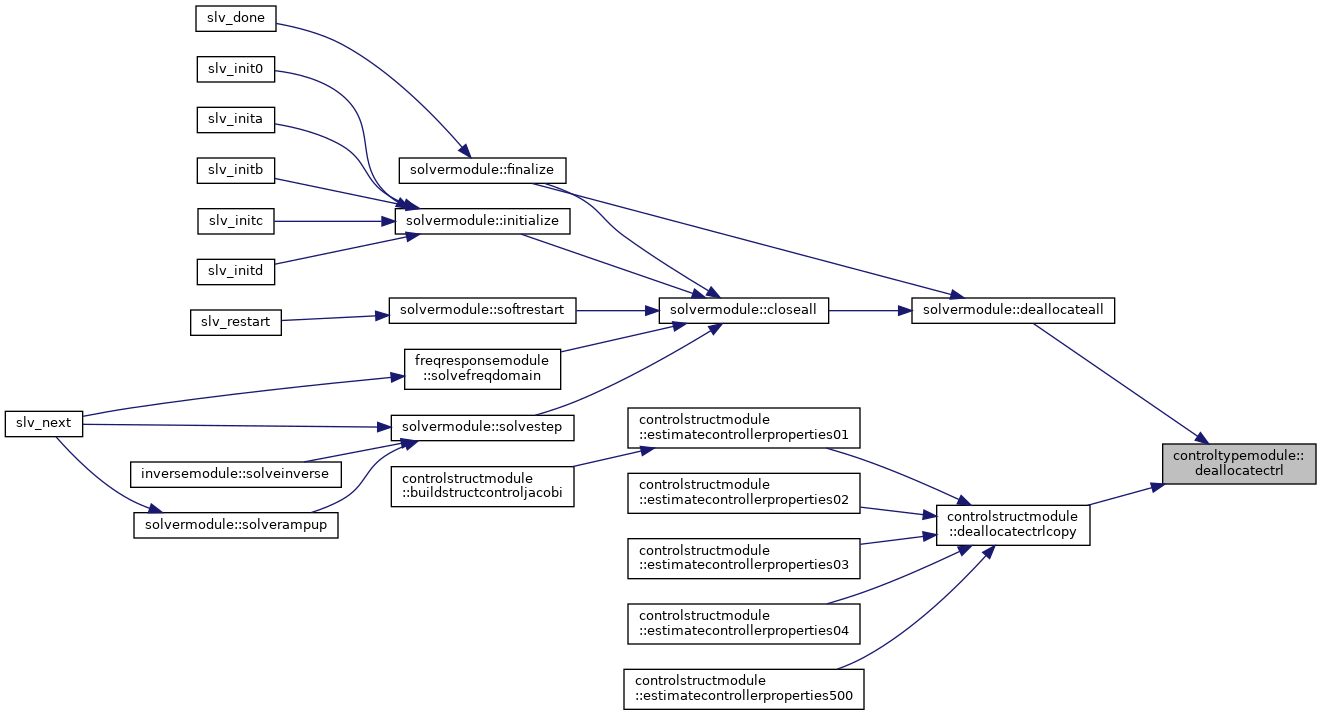

Here is the caller graph for this function:

◆ getsensor()

type(sensortype) function, pointer, public controltypemodule::getsensor ( type(ctrlprm), intent(in) input )

Returns sensor measuring structural response for an input element.

Parameters

[in] input The controltypemodule::ctrlprm object to get sensor for

If the sensor is measuring an engine, the argument sensor of that engine is returned instead. If the engine has multiple arguments, the first argument which neither is of type engine nor time is returned.

Author: Knut Morten Okstad

Date: 19 Jan 2024

Here is the caller graph for this function:

◆ hascontrolelements()

logical function, public controltypemodule::hascontrolelements ( type(controltype), intent(in) ctrl )

Checks if control elements are present in the model.

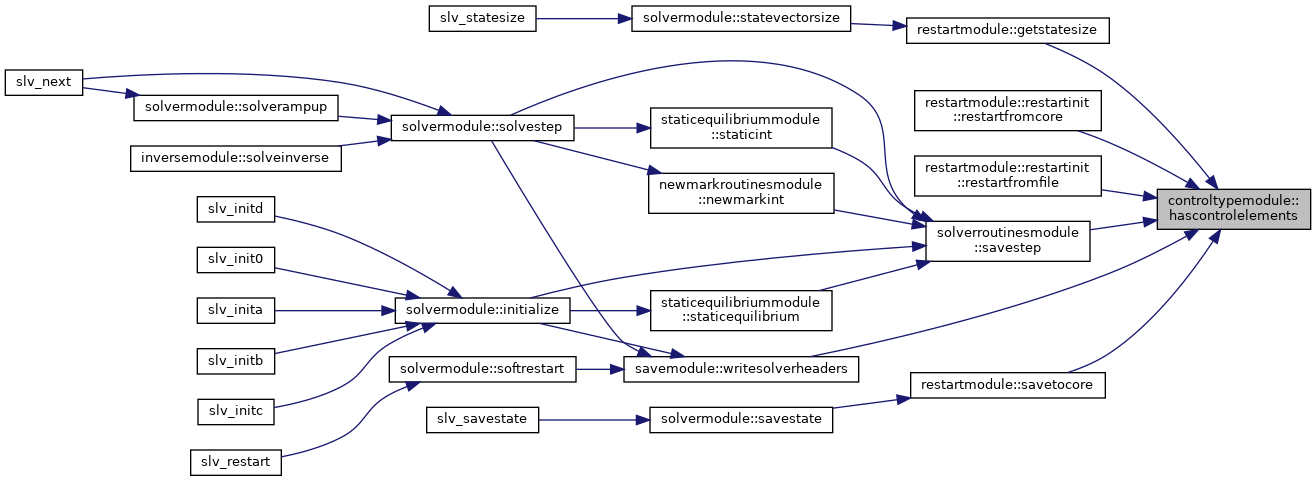

Here is the caller graph for this function:

◆ initiatecontrol()

subroutine, public controltypemodule::initiatecontrol	(	integer, dimension(:), intent(inout)	mpar,
		type(controltype), intent(in)	ctrl
	)

Initializes the SAM control array MPAR with control system data.

Parameters

	mpar	Matrix of parameters
[in]	ctrl	Control system data

Author: Knut Morten Okstad

Date: Apr 2003

Here is the caller graph for this function:

◆ nullifyctrl()

subroutine, public controltypemodule::nullifyctrl	(	type(controltype), intent(out)	ctrl,
		logical, intent(in), optional	deallocating
	)

Initializes a control system object.

Parameters

[out]	ctrl	The controltypemodule::controltype object to initialize
[in]	deallocating	If .true., the pointers are nullified

Author: Knut Morten Okstad

Date: 4 Jul 2004

Here is the caller graph for this function:

◆ readcontrolelements()

subroutine controltypemodule::readcontrolelements	(	integer, intent(in)	infp,
		integer, intent(in)	nCEl,
		integer, intent(out)	nDelay,
		integer, dimension(:), intent(out)	mpmtop,
		integer, dimension(:), intent(out)	mprpar,
		integer, dimension(:), intent(out)	mmtop,
		real(dp), dimension(:), intent(out)	rpar,
		integer, intent(in)	iprint,
		integer, intent(in)	lpu,
		integer, intent(out)	ierr
	)

Reads data for the control elements from the solver input file.

Parameters

[in]	infp	File unit number for the solver input file
[in]	nCEl	Total number of control elements in the model
[out]	nDelay	Number of delay elements in the model
[out]	mpmtop	Matrix of pointers to topology vectors
[out]	mprpar	Matrix of pointers to real data for the control elements
[out]	mmtop	Topology vectors for the control elements
[out]	rpar	Real data for the control elements
[in]	iprint	Print switch; the higher value the more print is produced
[in]	lpu	File unit number for res-file output
[out]	ierr	Error flag

Author: Bjorn Haugen

Date: Aug 2000

Here is the caller graph for this function:

◆ readcontrolinput()

subroutine controltypemodule::readcontrolinput	(	integer, intent(in)	infp,
		type(enginetype), dimension(:), intent(in), target	engines,
		type(ctrlprm), dimension(:), intent(out)	input,
		integer, dimension(:), intent(out)	mstat,
		integer, intent(out)	ierr
	)

private

Reads data for the control inputs from the solver input file.

Parameters

[in]	infp	File unit number for the solver input file
[in]	engines	All general functions in the model
[out]	input	Control input parameters
[out]	mstat	Status flags for the control variables
[out]	ierr	Error flag

Author: Bjorn Haugen

Date: Aug 2000

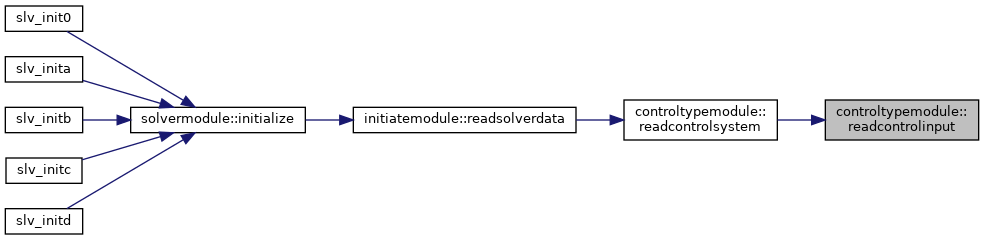

Here is the caller graph for this function:

◆ readcontrolsystem()

subroutine, public controltypemodule::readcontrolsystem	(	integer, intent(in)	infp,
		type(enginetype), dimension(:), intent(in)	engines,
		type(controltype), intent(out)	ctrl,
		integer, intent(out)	ierr
	)

Initializes the ControlType object with data from the input file.

Parameters

[in]	infp	File unit number for the solver input file
[in]	engines	All general functions in the model
[out]	ctrl	Control system data of the model
[out]	ierr	Error flag

Author: Knut Morten Okstad

Date: Jul 2000

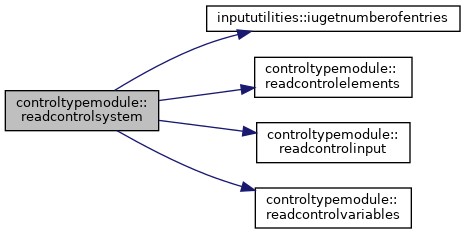

Here is the call graph for this function:

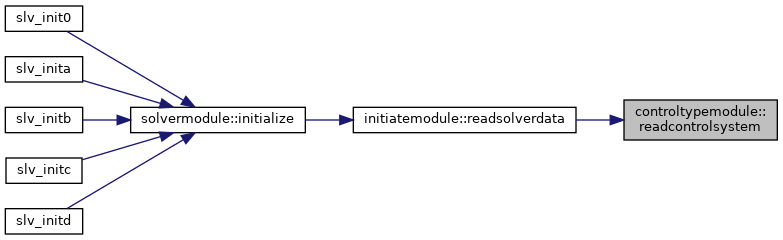

Here is the caller graph for this function:

◆ readcontrolvariables()

subroutine controltypemodule::readcontrolvariables	(	integer, intent(in)	infp,
		integer, dimension(:), intent(out)	mstat,
		real(dp), dimension(:), intent(out)	vreg,
		type(idtype), dimension(:), intent(out)	vregId,
		integer, dimension(:), intent(out)	mvar,
		integer, intent(in)	iprint,
		integer, intent(in)	lpu,
		integer, intent(out)	ierr
	)

Reads status codes and initial conditions for the control variables.

Parameters

[in]	infp	File unit number for the solver input file
[out]	mstat	Status flags for the control variables
[out]	vreg	The control state variables
[out]	vregId	Id for the control line variables
[out]	mvar	Control variables for extra control lines
[in]	iprint	Print switch; the higher value the more print is produced
[in]	lpu	File unit number for res-file output
[out]	ierr	Error flag

This subroutine reads status codes and initial conditions for all control variables in the model from the solver input file. It also reads the Id of other control lines referring to each variable. This is needed such that the control variable value can be written to the results database for all control lines that refer to it (Bugfix #323).

Author: Bjorn Haugen

Date: Aug 2000

Author: Knut Morten Okstad

Date: 29 Apr 2017

Here is the caller graph for this function:

◆ writecontroltype()

subroutine controltypemodule::writecontroltype	(	type(controltype), intent(in)	ctrl,
		integer, intent(in)	io,
		integer, intent(in), optional	complexity
	)

Standard routine for writing an object to io.

Parameters

[in]	ctrl	Control system data
[in]	io	File unit number to write to
[in]	complexity	If present, the value indicates the amount of print

Author: Knut Morten Okstad

Date: 27 Jul 2000

◆ writectrlsysdb()

subroutine, public controltypemodule::writectrlsysdb	(	type(rdbtype), intent(inout)	rdb,
		type(controltype), intent(in)	ctrl,
		integer(i8), intent(in)	nStep,
		real(dp), intent(in)	time,
		integer, intent(out)	ierr
	)

Writes control system data to the results database.

Parameters

	rdb	Results database file for control system data
[in]	ctrl	Control system data
[in]	nStep	Time step number
[in]	time	Current time
[out]	ierr	Error flag

Only the arrays that need to be restored in a restart are saved.

Author: Knut Morten Okstad

Date: 25 Oct 2008

Here is the call graph for this function:

Here is the caller graph for this function:

◆ writectrlsysheader()

subroutine, public controltypemodule::writectrlsysheader	(	type(controltype), intent(in)	ctrl,
		type(idtype), intent(in)	mechId,
		type(rdbtype), intent(inout)	rdb
	)

Writes results database headers for the control system.

Parameters

[in]	ctrl	Control system data
[in]	mechId	Id of the mechanism object
	rdb	Results database file for control system data

This subroutine saves only those arrays that need to be restored in a restart. The list of arrays stored must match that in controltypemodule::writectrlsysdb(), and should at least contain the arrays referred in restartmodule::readcontroldata().

Author: Knut Morten Okstad

Date: 25 Oct 2008

Here is the caller graph for this function:
