Module for general rectangular matrices with disk storage,. More...

Data Types
type	diskmatrixtype
	Data type representing a rectangular matrix with disk storage. More...

Functions/Subroutines
integer function	dmgetswapsize (n1, n2, autoRamSizeRatio)
	Returns requested size of one swap section from command-line option. More...

subroutine	dmnullify (this)
	Initializes a disk matrix object. More...

subroutine	dmwrite (this, lpu, name)
	Writes out the content of a disk matrix. More...

subroutine	dmopen (this, fileName, fileChkSum, nRows, nCols, status, err, nColSwap, swapSize, wantTag)
	Opens a disk matrix file for Read/Write or ReadOnly operations. More...

subroutine	dmsetreadonly (this, err, isReadOnly)
	Toggles between Read/Write and ReadOnly. More...

integer(i8) function	dmsize (this, iDim)
	Returns the size of the given disk matrix. More...

subroutine	dmclose (this, err)
	Closes the disk matrix file and releases the associated swap array. More...

subroutine, private	dmgetaddress (this, rInd, cInd, section, index, err)
	Gets swap section number and local array index for matrix element. More...

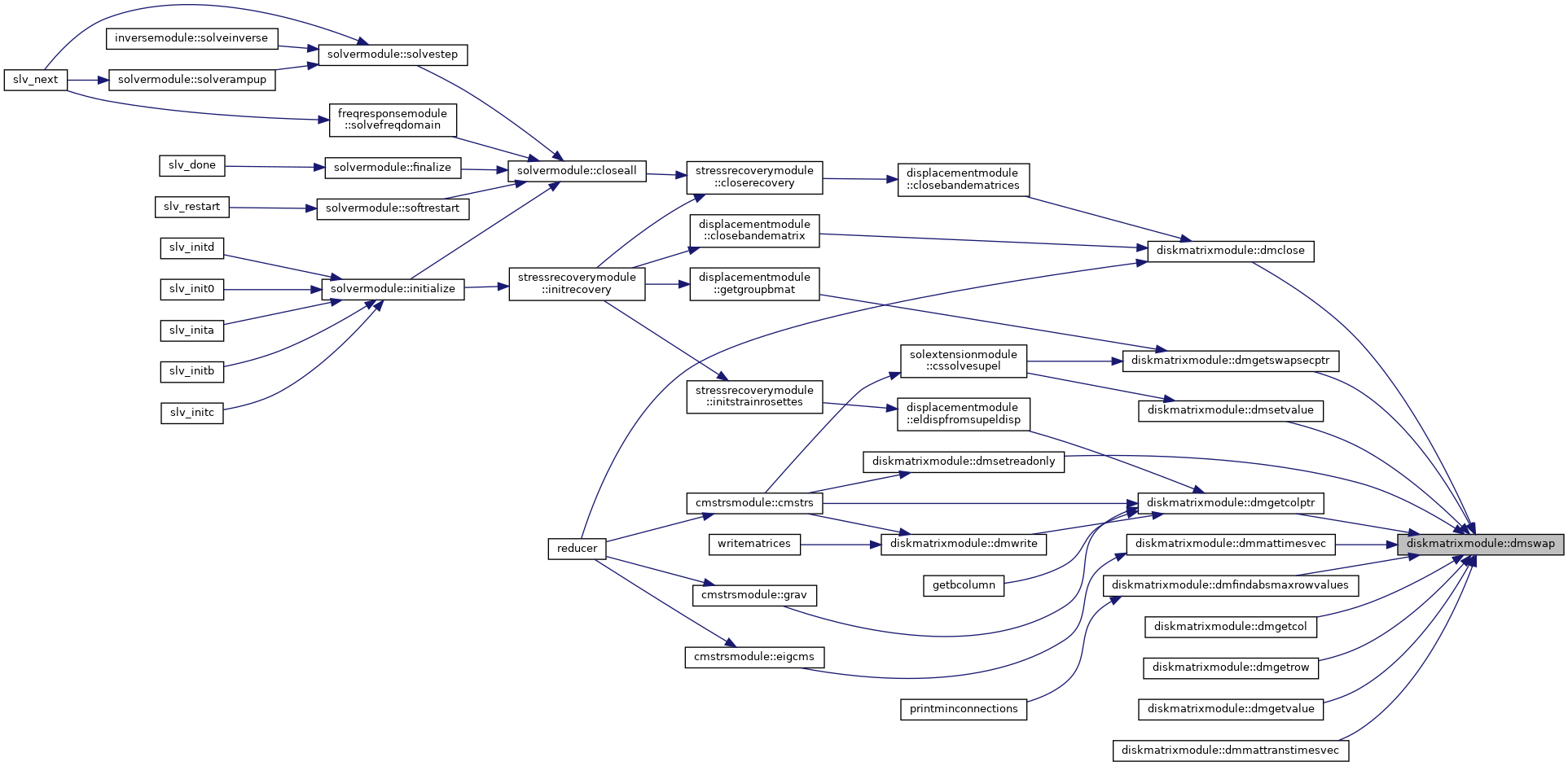

subroutine, private	dmswap (this, newSection, err)
	Writes current section to disk and reads a new one into core. More...

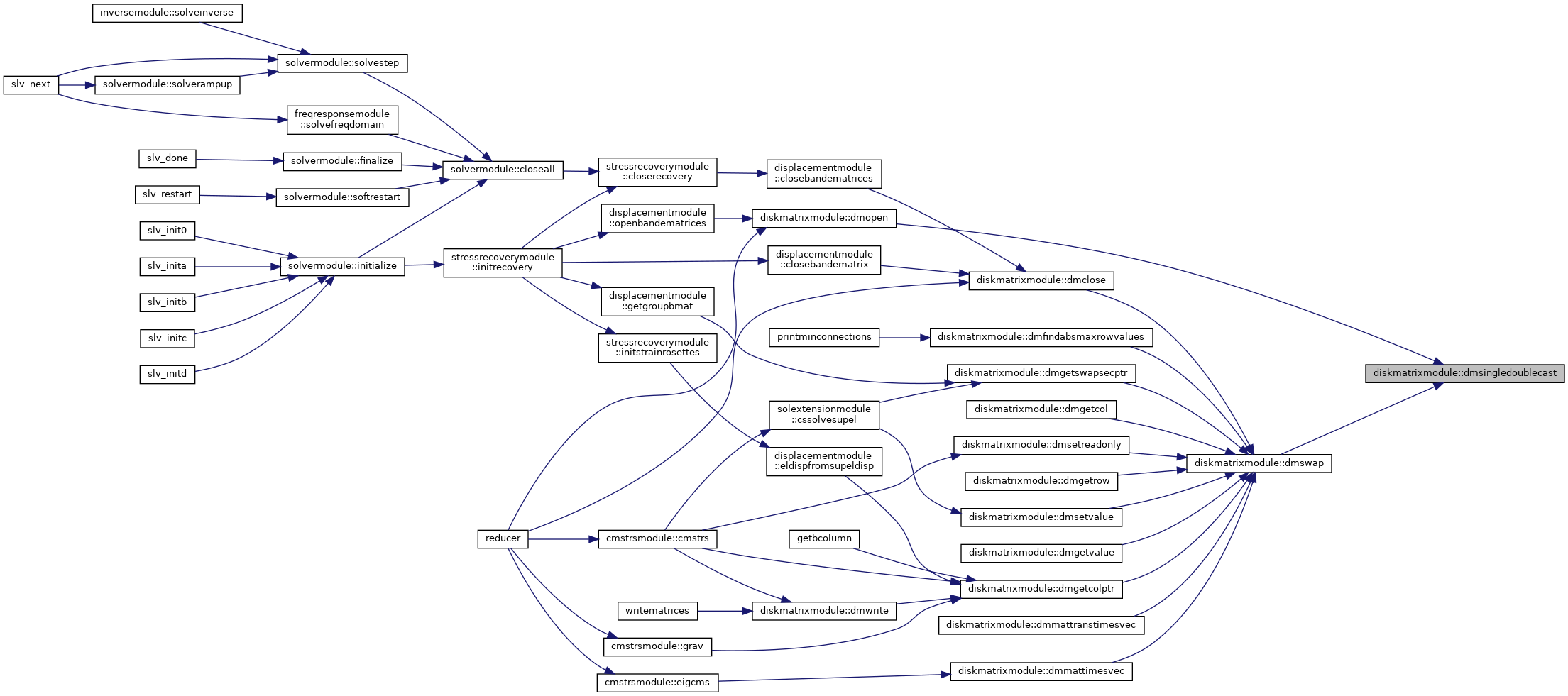

subroutine, private	dmsingledoublecast (this, ielSwap, nelSwap, toSingle)
	Casts the in-core matrix elements to/from single precision. More...

subroutine	dmsetvalue (this, value, rInd, cInd, err)
	Assigns a value to a matrix element. More...

real(dp) function	dmgetvalue (this, rInd, cInd, err)
	Returns the value of a matrix element. More...

real(dp) function, dimension(:,:), pointer	dmgetswapsecptr (this, cInd, err)
	Returns a pointer to a matrix containing a swap section. More...

real(dp) function, dimension(:), pointer	dmgetcolptr (this, cInd, err)
	Returns a pointer to column cInd of the given disk matrix. More...

subroutine	dmgetcol (this, cInd, col, err)
	Gets a column of the given disk matrix. More...

subroutine	dmgetrow (this, rInd, row, err)
	Gets a row of the given disk matrix. More...

subroutine	dmmattimesvec (this, xVec, yVec, err, doInitialize)
	Multiplies a disk matrix with a given vector. More...

subroutine	dmmattranstimesvec (this, xVec, yVec, err)
	Multiplies the transpose of a disk matrix with a given vector. More...

subroutine	dmfindabsmaxrowvalues (this, maxRowVal, err)
	Finds the absolute maximum value for each row in a disk matrix. More...

Variables
integer, parameter	dmold_p = 0
	ReadOnly matrix. More...

integer, parameter	dmnsp_p = 1
	Write matrix in single precision. More...

integer, parameter	dmndp_p = 2
	Write matrix in double precision. More...

Detailed Description

Module for general rectangular matrices with disk storage,.

This module contains a data type and associated utility routines for representing a general rectangular matrix stored on a disk file. The matrix is stored column-wise on disk and it is therefore adviced to access the matrix in a column-wise fashion to obtain optimal speed.

Note: All data members of diskmatrixmodule::diskmatrixtype are private and can therefore be accessed only through the subroutines/functions contained in this module.

Function/Subroutine Documentation

◆ dmclose()

subroutine diskmatrixmodule::dmclose	(	type(diskmatrixtype), intent(inout)	this,
		integer, intent(out)	err
	)

Closes the disk matrix file and releases the associated swap array.

Parameters

	this	The diskmatrixmodule::diskmatrixtype object to close
[out]	err	Error indicator

Author: Knut Morten Okstad

Date: 1 Dec 2000

Here is the call graph for this function:

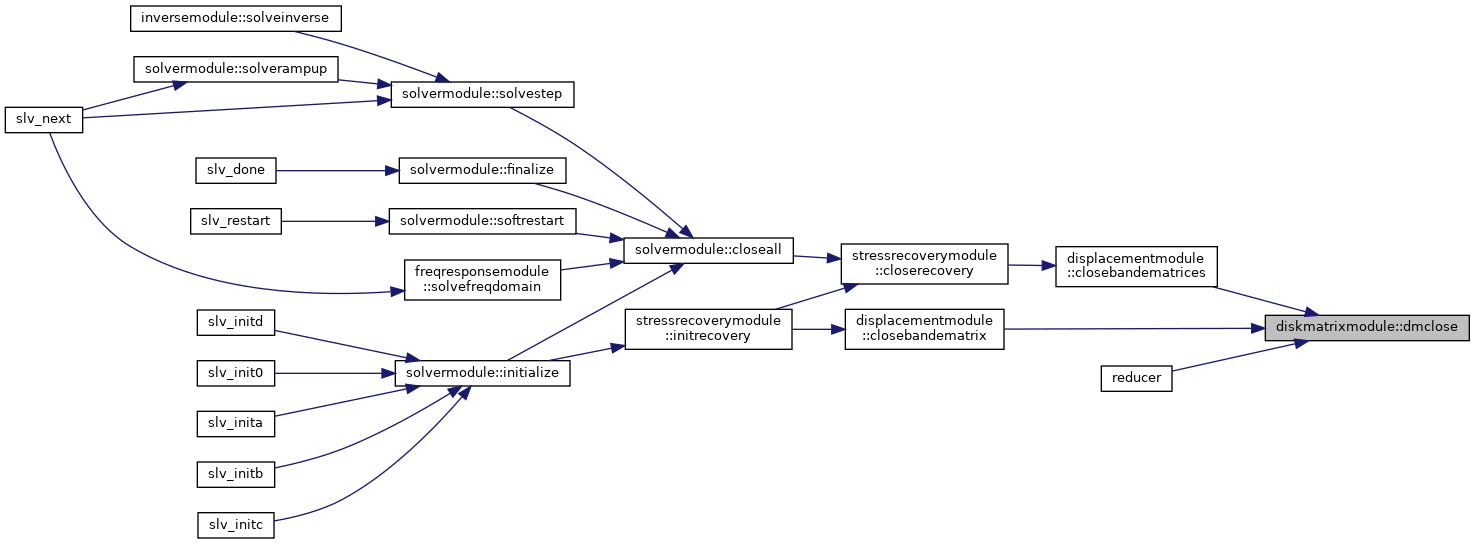

Here is the caller graph for this function:

◆ dmfindabsmaxrowvalues()

subroutine diskmatrixmodule::dmfindabsmaxrowvalues	(	type(diskmatrixtype), intent(inout)	this,
		real(dp), dimension(:), intent(out)	maxRowVal,
		integer, intent(out)	err
	)

Finds the absolute maximum value for each row in a disk matrix.

Parameters

	this	The diskmatrixmodule::diskmatrixtype object to address
[out]	maxRowVal	Absolute maximum row values
[out]	err	Error indicator

Author: Bjorn Haugen

Date: 25 Mar 2003

Here is the call graph for this function:

Here is the caller graph for this function:

◆ dmgetaddress()

subroutine, private diskmatrixmodule::dmgetaddress	(	type(diskmatrixtype), intent(inout)	this,
		integer, intent(in)	rInd,
		integer, intent(in)	cInd,
		integer, intent(out)	section,
		integer, intent(out)	index,
		integer, intent(out)	err
	)

private

Gets swap section number and local array index for matrix element.

Parameters

[in]	this	The diskmatrixmodule::diskmatrixtype object to address
[in]	rInd	Row index of matrix element to get address of
[in]	cInd	Column index of matrix element to get address of
[out]	section	Index of swap section containing the matrix element
[out]	index	Array index within that swap section for matrix element
[out]	err	Error indicator

Author: Bjorn Haugen

Date: 10 Feb 1999

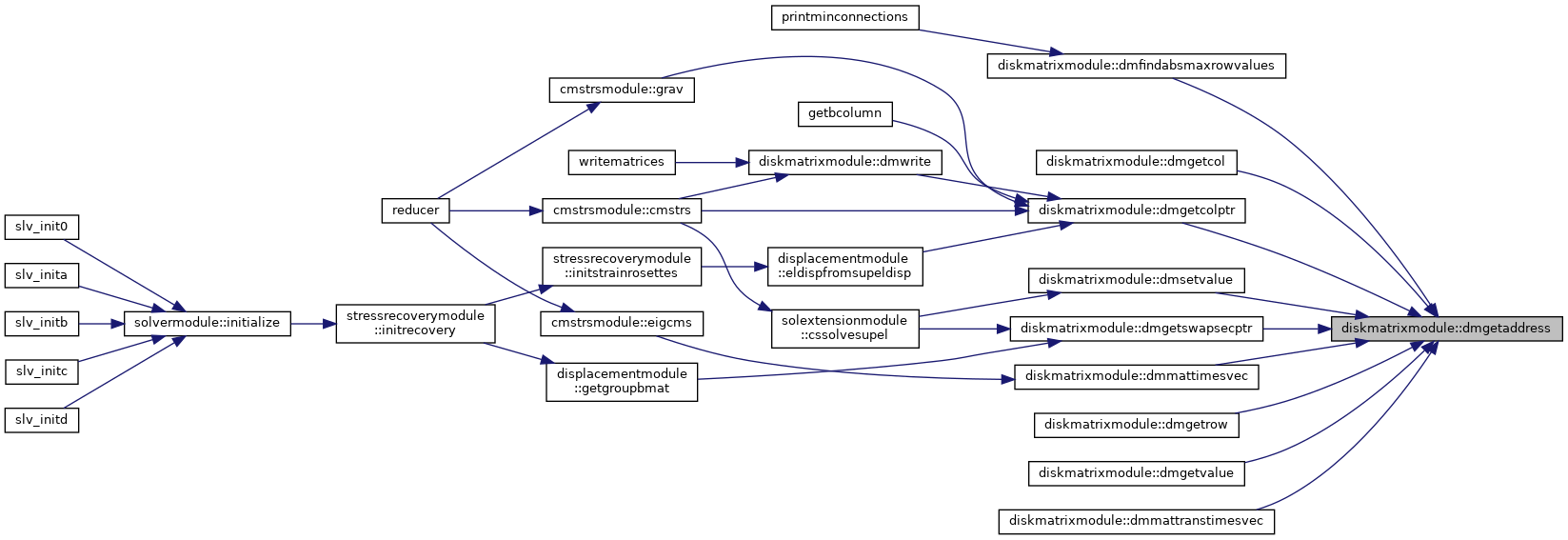

Here is the caller graph for this function:

◆ dmgetcol()

subroutine diskmatrixmodule::dmgetcol	(	type(diskmatrixtype), intent(inout)	this,
		integer, intent(in)	cInd,
		real(dp), dimension(:), intent(out)	col,
		integer, intent(out)	err
	)

Gets a column of the given disk matrix.

Parameters

	this	The diskmatrixmodule::diskmatrixtype object to return for
[in]	cInd	Column index to return for
[out]	col	Content of the matrix column
[out]	err	Error indicator

Author: Bjorn Haugen

Date: 10 Feb 1999

Here is the call graph for this function:

◆ dmgetcolptr()

real(dp) function, dimension(:), pointer diskmatrixmodule::dmgetcolptr	(	type(diskmatrixtype), intent(inout)	this,
		integer, intent(in)	cInd,
		integer, intent(out)	err
	)

Returns a pointer to column cInd of the given disk matrix.

Parameters

	this	The diskmatrixmodule::diskmatrixtype object to return for
[in]	cInd	Column index to return pointer for
[out]	err	Error indicator

Note: This function circumvents all protection and should be used with extreme caution and only for ReadOnly purposes when speed is essential. Calls to other dm... routines can also change the contents of the memory being pointed to.

Author: Bjorn Haugen and Karl Erik Thoresen

Date: 5 May 1999

Here is the call graph for this function:

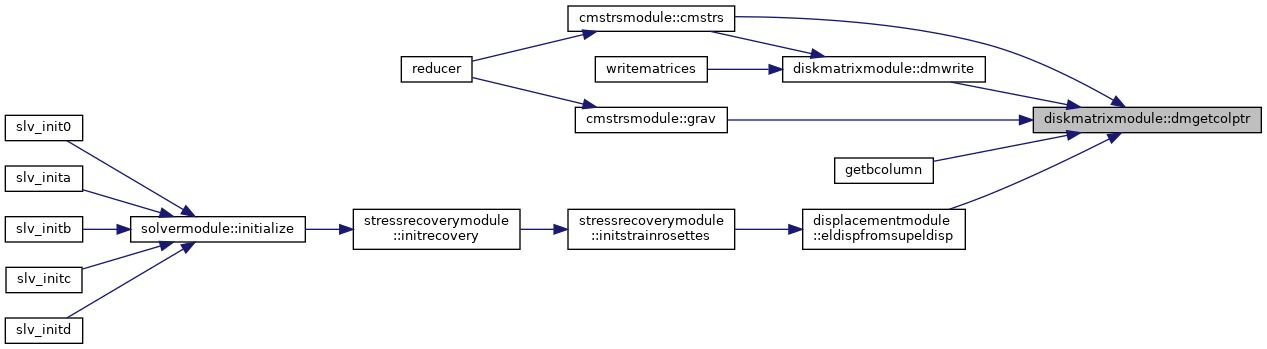

Here is the caller graph for this function:

◆ dmgetrow()

subroutine diskmatrixmodule::dmgetrow	(	type(diskmatrixtype), intent(inout)	this,
		integer, intent(in)	rInd,
		real(dp), dimension(:), intent(out)	row,
		integer, intent(out)	err
	)

Gets a row of the given disk matrix.

Parameters

	this	The diskmatrixmodule::diskmatrixtype object to return for
[in]	rInd	Row index to return for
[out]	row	Content of the matrix row
[out]	err	Error indicator

Author: Bjorn Haugen

Date: 10 Feb 1999

Here is the call graph for this function:

◆ dmgetswapsecptr()

real(dp) function, dimension(:,:), pointer diskmatrixmodule::dmgetswapsecptr	(	type(diskmatrixtype), intent(inout)	this,
		integer, intent(in)	cInd,
		integer, intent(out)	err
	)

Returns a pointer to a matrix containing a swap section.

Parameters

	this	The diskmatrixmodule::diskmatrixtype object to return for
[in]	cInd	Column index for start of swap section to return for
[out]	err	Error indicator

The pointer to the entire swap section starting at column cInd of the given disk matrix. The function can be used for speedy random access of the matrix elements.

Author: Knut Morten Okstad

Date: 13 Sep 2004

Here is the call graph for this function:

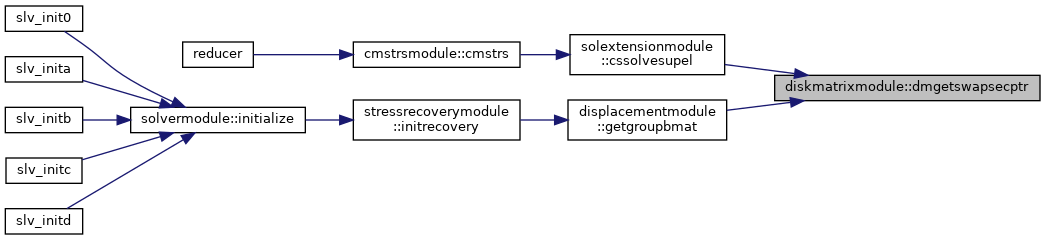

Here is the caller graph for this function:

◆ dmgetswapsize()

integer function diskmatrixmodule::dmgetswapsize	(	integer, intent(in), optional	n1,
		integer, intent(in), optional	n2,
		real(sp), intent(in), optional	autoRamSizeRatio
	)

Returns requested size of one swap section from command-line option.

Parameters

[in]	n1	Optional number of matrix rows (for note message only)
[in]	n2	Optional number of matrix columns (for note message only)
[in]	autoRamSizeRatio	If present and .true., compute max swap size based on currently available physical memory

Author: Knut Morten Okstad

Date: 31 Jan 2002

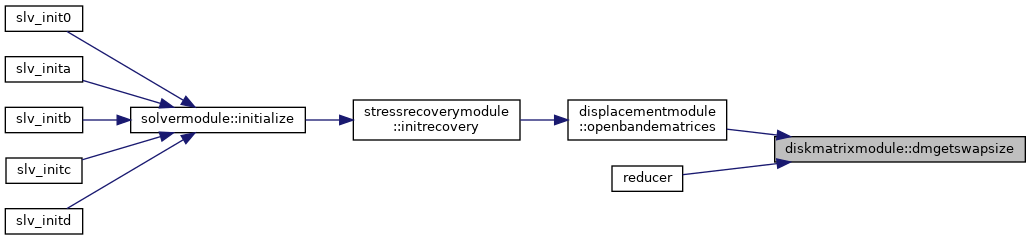

Here is the caller graph for this function:

◆ dmgetvalue()

real(dp) function diskmatrixmodule::dmgetvalue	(	type(diskmatrixtype), intent(inout)	this,
		integer, intent(in)	rInd,
		integer, intent(in)	cInd,
		integer, intent(out)	err
	)

Returns the value of a matrix element.

Parameters

	this	The diskmatrixmodule::diskmatrixtype object to return for
[in]	rInd	Row index of matrix element to return
[in]	cInd	Column index of matrix element to return
[out]	err	Error indicator

Author: Bjorn Haugen

Date: 10 Feb 1999

Here is the call graph for this function:

◆ dmmattimesvec()

subroutine diskmatrixmodule::dmmattimesvec	(	type(diskmatrixtype), intent(inout)	this,
		real(dp), dimension(:), intent(in)	xVec,
		real(dp), dimension(:), intent(inout)	yVec,
		integer, intent(out)	err,
		logical, intent(in), optional	doInitialize
	)

Multiplies a disk matrix with a given vector.

Parameters

	this	The diskmatrixmodule::diskmatrixtype object (A) to multiply
[in]	xVec	The vector (x) to multiply matrix A with
	yVec	The resulting vector (y)
[out]	err	Error indicator
[in]	doInitialize	If not present or .true., the existing content of yVec is discarded

One of of the following operations are performed y = A*x y = y + A*x depending on the value of doInitialize.

Author: Bjorn Haugen

Date: 10 Feb 1999

Here is the call graph for this function:

Here is the caller graph for this function:

◆ dmmattranstimesvec()

subroutine diskmatrixmodule::dmmattranstimesvec	(	type(diskmatrixtype), intent(inout)	this,
		real(dp), dimension(:), intent(in)	xVec,
		real(dp), dimension(:), intent(out)	yVec,
		integer, intent(out)	err
	)

Multiplies the transpose of a disk matrix with a given vector.

Parameters

	this	The diskmatrixmodule::diskmatrixtype object (A) to multiply
[in]	xVec	The vector (x) to multiply matrix A with
	yVec	The resulting vector (y)
[out]	err	Error indicator

The following operation is performed y = A^t*x

Author: Bjorn Haugen

Date: 10 Feb 1999

Here is the call graph for this function:

◆ dmnullify()

subroutine diskmatrixmodule::dmnullify ( type(diskmatrixtype), intent(out) this )

Initializes a disk matrix object.

Parameters

[out] this The diskmatrixmodule::diskmatrixtype object to be initialized

Author: Knut Morten Okstad

Date: 14 Feb 2002

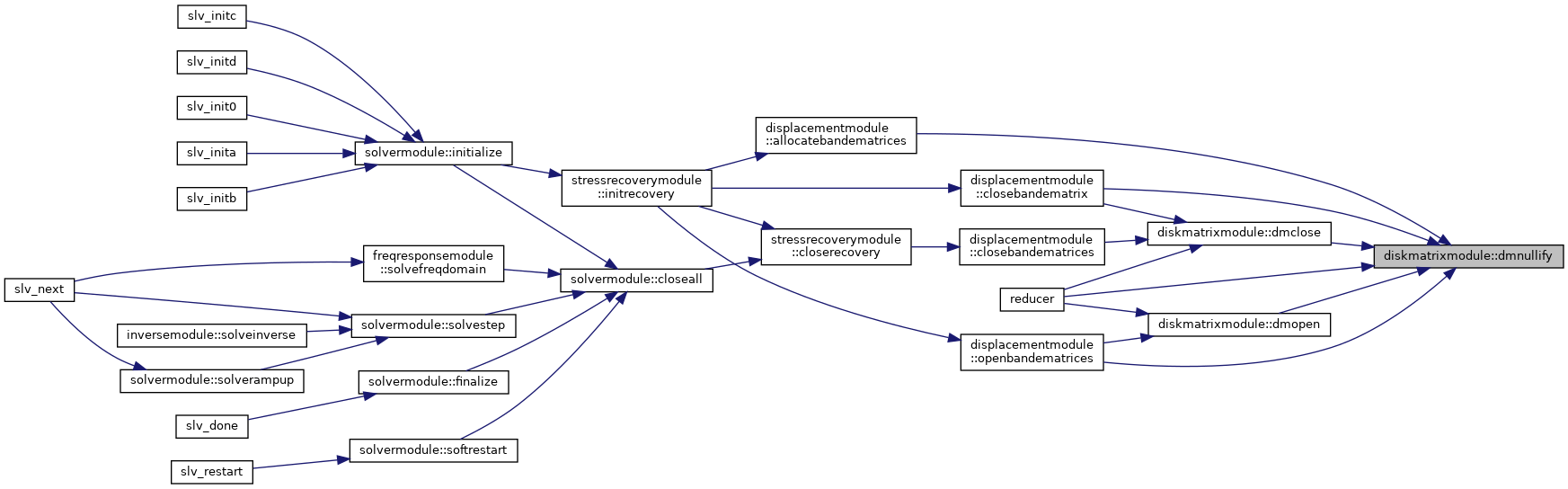

Here is the caller graph for this function:

◆ dmopen()

subroutine diskmatrixmodule::dmopen	(	type(diskmatrixtype), intent(out)	this,
		character(len=*), intent(in)	fileName,
		integer, intent(inout)	fileChkSum,
		integer, intent(in)	nRows,
		integer, intent(in)	nCols,
		integer, intent(in)	status,
		integer, intent(out)	err,
		integer, intent(in), optional	nColSwap,
		integer, intent(in), optional	swapSize,
		character(len=*), intent(in), optional	wantTag
	)

Opens a disk matrix file for Read/Write or ReadOnly operations.

Parameters

[out]	this	The diskmatrixmodule::diskmatrixtype object to open
[in]	fileName	Name of file to read/write matrix content from/to
	fileChkSum	Check-sum value of the FE part associated with this
[in]	nRows	Number of matrix rows
[in]	nCols	Number of matrix columns
[in]	status	File opening mode, either diskmatrixmodule::dmold_p, diskmatrixmodule::dmnsp_p or diskmatrixmodule::dmndp_p
[out]	err	Error indicator
[in]	nColSwap	Optional number of matrix columns per swap section
[in]	swapSize	Optional size of swap section in double precision words
[in]	wantTag	Expected file tag for ReadOnly matrices

Author: Knut Morten Okstad

Date: 1 Jun 2001

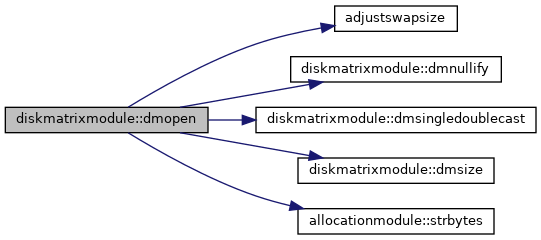

Here is the call graph for this function:

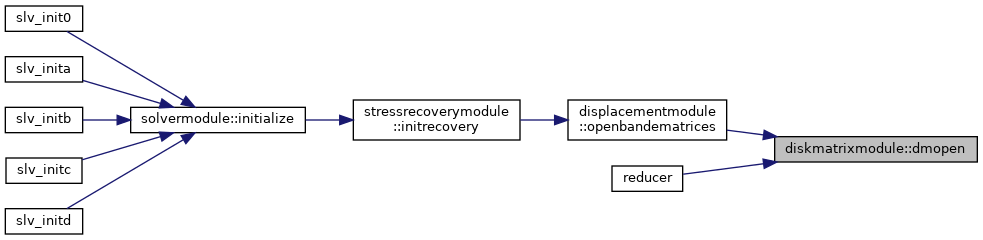

Here is the caller graph for this function:

◆ dmsetreadonly()

subroutine diskmatrixmodule::dmsetreadonly	(	type(diskmatrixtype), intent(inout)	this,
		integer, intent(out)	err,
		logical, intent(in), optional	isReadOnly
	)

Toggles between Read/Write and ReadOnly.

Parameters

	this	The diskmatrixmodule::diskmatrixtype object to toggle for
[out]	err	Error indicator
[in]	isReadOnly	If present and .false., switch to ReadWrite, otherwise toggle to ReadOnly

If switching to ReadOnly, the present in-core section is first written to file.

Author: Knut Morten Okstad

Date: 1 Dec 2000

Here is the call graph for this function:

Here is the caller graph for this function:

◆ dmsetvalue()

subroutine diskmatrixmodule::dmsetvalue	(	type(diskmatrixtype), intent(inout)	this,
		real(dp), intent(in)	value,
		integer, intent(in)	rInd,
		integer, intent(in)	cInd,
		integer, intent(out)	err
	)

Assigns a value to a matrix element.

Parameters

	this	The diskmatrixmodule::diskmatrixtype object to assign
[in]	value	The value to be assigned
[in]	rInd	Row index of matrix element to assign
[in]	cInd	Column index of matrix element to assign
[out]	err	Error indicator

Author: Bjorn Haugen

Date: 10 Feb 1999

Here is the call graph for this function:

Here is the caller graph for this function:

◆ dmsingledoublecast()

subroutine, private diskmatrixmodule::dmsingledoublecast	(	type(diskmatrixtype), intent(inout)	this,
		integer, intent(in)	ielSwap,
		integer, intent(in)	nelSwap,
		logical, intent(in)	toSingle
	)

private

Casts the in-core matrix elements to/from single precision.

Parameters

	this	The diskmatrixmodule::diskmatrixtype object to cast for
[in]	ielSwap	Index to first element in swap section
[in]	nelSwap	Number of elements in swap section to cast for
[in]	toSingle	If .true., cast from double to single precision, otherwise from single to double precision

It is assumed that the single-precision buffer array diskmatrixmodule::diskmatrixtype::vals is not larger than one column.

Author: Knut Morten Okstad

Date: 19 May 2005

Here is the caller graph for this function:

◆ dmsize()

integer(i8) function diskmatrixmodule::dmsize	(	type(diskmatrixtype), intent(in)	this,
		integer, intent(in), optional	iDim
	)

Returns the size of the given disk matrix.

Parameters

[in]	this	The diskmatrixmodule::diskmatrixtype object to get size of
[in]	iDim	Which size parameter to return: if not present, return the total size (nrows×ncols) 1: number of matrix rows (nrows) 2: number of matrix columns (ncols) for any other value: return the number of columns in swap array

Author: Bjorn Haugen

Date: 29 Jan 1999

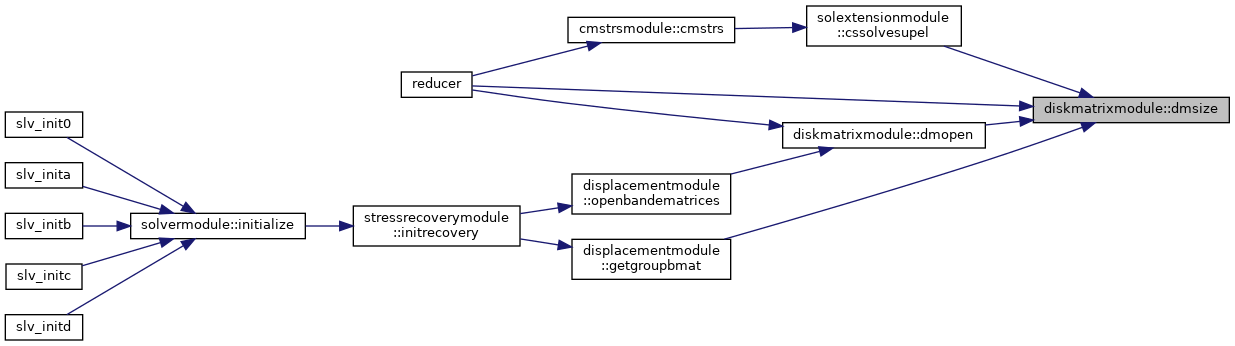

Here is the caller graph for this function:

◆ dmswap()

subroutine, private diskmatrixmodule::dmswap	(	type(diskmatrixtype), intent(inout)	this,
		integer, intent(in)	newSection,
		integer, intent(out)	err
	)

private

Writes current section to disk and reads a new one into core.

Parameters

[in]	this	The diskmatrixmodule::diskmatrixtype object to swap for
[in]	newSection	Index of the swap section to read into core
[out]	err	Error indicator

Author: Knut Morten Okstad

Date: 1 Dec 2000

Here is the call graph for this function:

Here is the caller graph for this function:

◆ dmwrite()

subroutine diskmatrixmodule::dmwrite	(	type(diskmatrixtype), intent(inout)	this,
		integer, intent(in)	lpu,
		character(len=*), intent(in)	name
	)

Writes out the content of a disk matrix.

Parameters

[in]	this	The diskmatrixmodule::diskmatrixtype object to write out
[in]	lpu	File unit number to write to
[in]	name	Matrix identifier

Author: Knut Morten Okstad

Date: 18 Mar 2003

Here is the caller graph for this function:

Variable Documentation

◆ dmndp_p

integer, parameter diskmatrixmodule::dmndp_p = 2

Write matrix in double precision.

◆ dmnsp_p

integer, parameter diskmatrixmodule::dmnsp_p = 1

Write matrix in single precision.

◆ dmold_p

integer, parameter diskmatrixmodule::dmold_p = 0

ReadOnly matrix.

Data Types

Functions/Subroutines

Variables

Detailed Description

Function/Subroutine Documentation

◆ dmclose()

◆ dmfindabsmaxrowvalues()

◆ dmgetaddress()

◆ dmgetcol()

◆ dmgetcolptr()

◆ dmgetrow()

◆ dmgetswapsecptr()

◆ dmgetswapsize()

◆ dmgetvalue()

◆ dmmattimesvec()

◆ dmmattranstimesvec()

◆ dmnullify()

◆ dmopen()

◆ dmsetreadonly()

◆ dmsetvalue()

◆ dmsingledoublecast()

◆ dmsize()

◆ dmswap()

◆ dmwrite()

Variable Documentation

◆ dmndp_p

◆ dmnsp_p

◆ dmold_p
