Module with data types representing function objects. More...

Data Types
type	functiontype
	Data type representing a function shape object. More...

type	enginetype
	Data type representing a general function object. More...

type	engineptrtype
	Data type representing a general function pointer. More...

interface	writeobject
	Standard routine for writing an object to file. More...

interface	getptrtoid
	Returns pointer to object with specified ID. More...

interface	functionvalue
	Returns the function value. More...

interface	functionderivative
	Returns a function derivative. More...

interface	deallocatefunctions
	Deallocates a function object. More...

Functions/Subroutines
type(functiontype) function, pointer	getptrtoidfunction (array, id)
	Returns pointer to (first) function shape object with specified ID. More...

type(enginetype) function, pointer	getptrtoidengine (array, id, usedByMech, index)
	Returns pointer to (first) general function with specified ID. More...

subroutine	nullifyfunction (func)
	Initializes a function shape object. More...

subroutine	nullifyengine (engine)
	Initializes a general function object. More...

subroutine	deallocatefunction (func)
	Deallocates a function shape object. More...

subroutine	deallocatefuncs (funcs)
	Deallocates all function shape objects. More...

subroutine	deallocateengine (engine)
	Deallocates a general function object. More...

subroutine	deallocateengines (engines)
	Deallocates all general function objects. More...

subroutine	writefunctiontype (func, lpu)
	Standard routine for writing an object to file. More...

subroutine	writeenginetype (engine, lpu)
	Standard routine for writing an object to file. More...

character(len=lid_p) function	getengineid (engine)
	Returns the id of an engine object, including function type. More...

real(dp) function	functionvalue1 (func, xArg, ierr)
	Evaluates the single-argument function f = f(x). More...

real(dp) function	functionvalue2 (func, xArg, ierr)
	Evaluates the multi-argument function f = f(x,y,z,...). More...

real(dp) function	functionderivative1 (func, xArg, derOrder, ierr, eps)
	Evaluates the derivative of a single-argument function f(x). More...

real(dp) function	functionderivative2 (func, xArg, dVar, derOrder, ierr, eps)
	Evaluates the derivative of a multi-argument function f(x,y,z,...). More...

real(dp) function	functionintegral (func, x0, x1, intOrder, ierr)
	Integrates a function shape over specified domain. More...

logical function	canintegrate (func, order)
	Checks whether a function can be integrated explicitly. More...

logical function	isctrlsysused (engines)
	Checks if any functions have a control system variable as argument. More...

subroutine	initrampfunction (Tstart, Tend, Tlength, Vmax, ierr)
	Initializes the ramp-up scaling function (smooth trajectory). More...

subroutine	getrampvalue (t, derOr, rVal, ierr)
	Evaluates the smooth trajectory ramp function. More...

Variables
type(functiontype), pointer, save	ourramp => null()
	Ramp function used for scaling of all general functions of time. More...

Detailed Description

Module with data types representing function objects.

The module also contains subroutines for accessing or manipulating the function data, and for evaluating the functions themselves.

Function/Subroutine Documentation

◆ canintegrate()

logical function functiontypemodule::canintegrate	(	type(functiontype), pointer	func,
		integer, intent(in)	order
	)

Checks whether a function can be integrated explicitly.

Parameters

	func	Pointer to a function shape object
[in]	order	Integration order

Author: Bjorn Haugen

Date: 6 Nov 1998

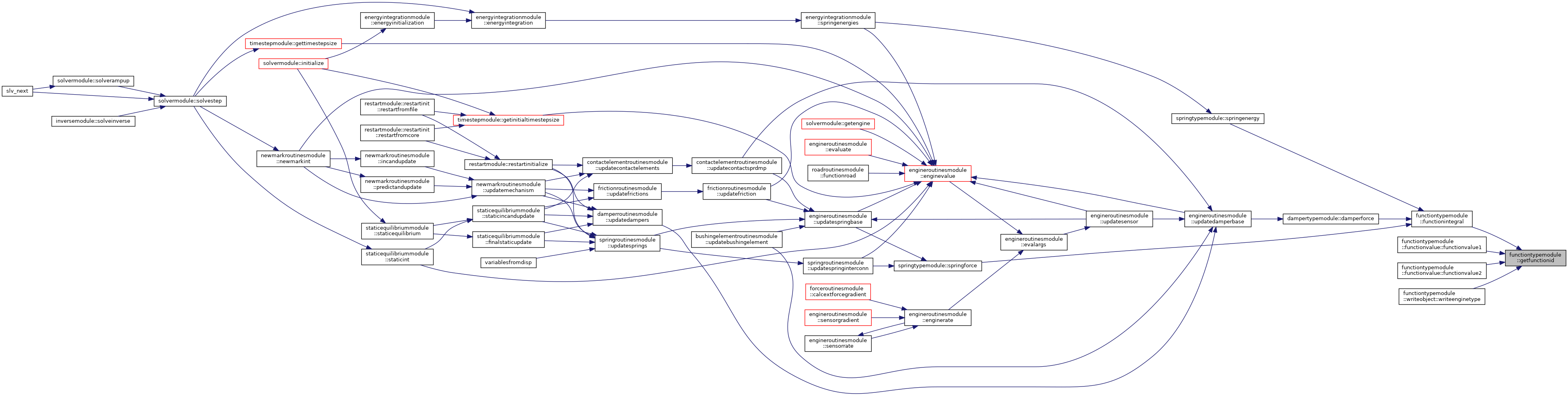

Here is the caller graph for this function:

◆ deallocateengine()

subroutine functiontypemodule::deallocateengine ( type(enginetype), intent(inout) engine )

Deallocates a general function object.

Parameters

engine The functiontypemodule::enginetype object to deallocate

Author: Knut Morten Okstad

Date: 23 Jan 2017

Here is the call graph for this function:

Here is the caller graph for this function:

◆ deallocateengines()

subroutine functiontypemodule::deallocateengines ( type(enginetype), dimension(:), pointer engines )

Deallocates all general function objects.

Parameters

engines Array of all functiontypemodule::enginetype objects

Author: Knut Morten Okstad

Date: 23 Jan 2017

Here is the caller graph for this function:

◆ deallocatefuncs()

subroutine functiontypemodule::deallocatefuncs ( type(functiontype), dimension(:), pointer funcs )

Deallocates all function shape objects.

Parameters

funcs Array of all functiontypemodule::functiontype objects

Author: Knut Morten Okstad

Date: 23 Jan 2017

◆ deallocatefunction()

subroutine functiontypemodule::deallocatefunction ( type(functiontype), intent(inout) func )

Deallocates a function shape object.

Parameters

func	The functiontypemodule::functiontype object to deallocate

Author: Knut Morten Okstad

Date: 23 Jan 2017

Here is the call graph for this function:

Here is the caller graph for this function:

◆ functionderivative1()

real(dp) function functiontypemodule::functionderivative1	(	type(functiontype), pointer	func,
		real(dp), intent(in)	xArg,
		integer, intent(in)	derOrder,
		integer, intent(inout)	ierr,
		real(dp), intent(in), optional	eps
	)

Evaluates the derivative of a single-argument function f(x).

Parameters

	func	Pointer to the function shape to evaluate the derivative of
[in]	xArg	Function argument value to evaluate the derivative at
[in]	derOrder	Derivative order (0, 1 or 2)
	ierr	Error flag
[in]	eps	Size of argument interval for numerical derivatives

Author: Trond Arne Svidal

Date: Oct 2002

Here is the caller graph for this function:

◆ functionderivative2()

real(dp) function functiontypemodule::functionderivative2	(	type(functiontype), pointer	func,
		real(dp), dimension(:), intent(in)	xArg,
		integer, intent(in)	dVar,
		integer, intent(in)	derOrder,
		integer, intent(inout)	ierr,
		real(dp), intent(in), optional	eps
	)

Evaluates the derivative of a multi-argument function f(x,y,z,...).

Parameters

	func	Pointer to the function shape to evaluate the derivative of
[in]	xArg	Function argument values to evaluate the derivative at
[in]	dVar	Which argument to calculate derivative with respect to
[in]	derOrder	Derivative order (0, 1 or 2)
	ierr	Error flag
[in]	eps	Size of argument interval for numerical derivatives

Author: Trond Arne Svidal

Date: Oct 2002

◆ functionintegral()

real(dp) function functiontypemodule::functionintegral	(	type(functiontype), pointer	func,
		real(dp), intent(in)	x0,
		real(dp), intent(in)	x1,
		integer, intent(in)	intOrder,
		integer, intent(inout)	ierr
	)

Integrates a function shape over specified domain.

Parameters

	func	Pointer to the function shape to integrate
[in]	x0	Lower bound of integration domain
[in]	x1	Upper bound of integration domain
[in]	intOrder	Integration order (0, 1 or 2)
	ierr	Error flag

Author: Bjorn Haugen

Date: 6 Nov 1998

Here is the call graph for this function:

Here is the caller graph for this function:

◆ functionvalue1()

real(dp) function functiontypemodule::functionvalue1	(	type(functiontype), pointer	func,
		real(dp), intent(in)	xArg,
		integer, intent(inout)	ierr
	)

Evaluates the single-argument function f = f(x).

Parameters

	func	Pointer to the function shape to evaluate
[in]	xArg	Function argument value to evaluate the function at
	ierr	Error flag

Author: Bjorn Haugen

Date: 6 Nov 1998

◆ functionvalue2()

real(dp) function functiontypemodule::functionvalue2	(	type(functiontype), pointer	func,
		real(dp), dimension(:), intent(in)	xArg,
		integer, intent(inout)	ierr
	)

Evaluates the multi-argument function f = f(x,y,z,...).

Parameters

	func	Pointer to the function shape to evaluate
[in]	xArg	Function argument values to evaluate the function at
	ierr	Error flag

Author: Bjorn Haugen

Date: 6 Nov 1998

◆ getengineid()

character(len=lid_p) function functiontypemodule::getengineid ( type(enginetype), intent(in) engine )

Returns the id of an engine object, including function type.

Parameters

[in] engine The functiontypemodule::enginetype object to get id for

Author: Knut Morten Okstad

Date: 12 Jun 2023

Here is the caller graph for this function:

◆ getptrtoidengine()

type(enginetype) function, pointer functiontypemodule::getptrtoidengine	(	type(enginetype), dimension(:), intent(in), target	array,
		integer, intent(in)	id,
		logical, intent(in), optional	usedByMech,
		integer, intent(out), optional	index
	)

Returns pointer to (first) general function with specified ID.

Parameters

[in]	array	Array of functiontypemodule::enginetype objects to search within
[in]	id	Base ID of the object to search for
[in]	usedByMech	If .true., flag the found object as used
[out]	index	The array index of the found object

If the general function is not found, NULL is returned.

Author: Bjorn Haugen

Date: 1 Nov 1999

◆ getptrtoidfunction()

type(functiontype) function, pointer functiontypemodule::getptrtoidfunction	(	type(functiontype), dimension(:), intent(in), target	array,
		integer, intent(in)	id
	)

Returns pointer to (first) function shape object with specified ID.

Parameters

[in]	array	Array of functiontypemodule::functiontype objects to search within
[in]	id	Base ID of the object to search for

If the function shape is not found, NULL is returned.

Author: Bjorn Haugen

Date: 1 Nov 1999

◆ getrampvalue()

subroutine functiontypemodule::getrampvalue	(	real(dp), intent(inout)	t,
		integer, intent(in)	derOr,
		real(dp), intent(out)	rVal,
		integer, intent(inout)	ierr
	)

Evaluates the smooth trajectory ramp function.

Parameters

	t	Time to evaluate ramp function at, set to end of ramp on exit
[in]	derOr	Derivative order (0 or 1)
[out]	rVal	The ramp function value
	ierr	Error flag

Author: Knut Morten Okstad

Date: 19 Aug 2022

Here is the caller graph for this function:

◆ initrampfunction()

subroutine functiontypemodule::initrampfunction	(	real(dp), intent(in)	Tstart,
		real(dp), intent(in)	Tend,
		real(dp), intent(in)	Tlength,
		real(dp), intent(in)	Vmax,
		integer, intent(out)	ierr
	)

Initializes the ramp-up scaling function (smooth trajectory).

Parameters

[in]	Tstart	Start time of trajectory
[in]	Tend	End time of function
[in]	Tlength	Total trajectory time
[in]	Vmax	Maximum speed during trajectory
[out]	ierr	Error flag

Author: Knut Morten Okstad

Date: 19 Aug 2022

Here is the call graph for this function:

Here is the caller graph for this function:

◆ isctrlsysused()

logical function functiontypemodule::isctrlsysused ( type(enginetype), dimension(:), intent(in) engines )

Checks if any functions have a control system variable as argument.

Parameters

engines All general functions in the model

Author: Knut Morten Okstad

Date: 27 Oct 2009

Here is the caller graph for this function:

◆ nullifyengine()

subroutine functiontypemodule::nullifyengine ( type(enginetype), intent(out) engine )

Initializes a general function object.

Parameters

engine The functiontypemodule::enginetype object to initialize

Author: Bjorn Haugen

Date: 10 Sep 1998

Here is the caller graph for this function:

◆ nullifyfunction()

subroutine functiontypemodule::nullifyfunction ( type(functiontype), intent(out) func )

Initializes a function shape object.

Parameters

func	The functiontypemodule::functiontype object to initialize

Author: Bjorn Haugen

Date: 10 Sep 1998

Here is the caller graph for this function:

◆ writeenginetype()

subroutine functiontypemodule::writeenginetype	(	type(enginetype), intent(in)	engine,
		integer, intent(in)	lpu
	)

Standard routine for writing an object to file.

Parameters

[in]	engine	The functiontypemodule::enginetype object to write
[in]	lpu	File unit number to write to

Author: Karl Erik Thoresen

Date: 27 Sep 1998

◆ writefunctiontype()

subroutine functiontypemodule::writefunctiontype	(	type(functiontype), intent(in)	func,
		integer, intent(in)	lpu
	)

Standard routine for writing an object to file.

Parameters

[in]	func	The functiontypemodule::functiontype object to write
[in]	lpu	File unit number to write to

Author: Bjorn Haugen

Date: 8 Sep 1999

Variable Documentation

◆ ourramp

type(functiontype), pointer, save functiontypemodule::ourramp => null()

Ramp function used for scaling of all general functions of time.

Data Types

Functions/Subroutines

Variables

Detailed Description

Function/Subroutine Documentation

◆ canintegrate()

◆ deallocateengine()

◆ deallocateengines()

◆ deallocatefuncs()

◆ deallocatefunction()

◆ functionderivative1()

◆ functionderivative2()

◆ functionintegral()

◆ functionvalue1()

◆ functionvalue2()

◆ getengineid()

◆ getptrtoidengine()

◆ getptrtoidfunction()

◆ getrampvalue()

◆ initrampfunction()

◆ isctrlsysused()

◆ nullifyengine()

◆ nullifyfunction()

◆ writeenginetype()

◆ writefunctiontype()

Variable Documentation

◆ ourramp
