normtypemodule Module Reference

Module with data types representing convergence norm objects. More...

Data Types
type	testitemtype
	Data type representing a convergence check definition. More...
type	testsettype
	Data type representing a set of convergence checks. More...

Functions/Subroutines
subroutine	nullifyconvset (convSet)
	Initializes a set of convergence checks object. More...
subroutine	deallocateconvset (convSet)
	Deallocates a set of convergence checks object. More...
subroutine	initconvchecks (convSet, maxIt, monWorst, monIter, relTol, err)
	Initialize the convergence checks from command-line options. More...
subroutine, private	inittolerance (tolType, normName, testItem)
	Initializes a convergence check with data from command-line. More...
logical function	hasconverged (convSet, factor_opt)
	Checks if the state of the convergence checks set is converged. More...
subroutine	checkdivergence (testItem, value, mayDiverge)
	Check if a given norm is showing sign of possible divergence. More...

Variables
integer, parameter	nnormtypes_p = 4
	Total number of norm types. More...
integer, parameter	ivecnorm_p = 1
	Index for L_2 displacement norm. More...
integer, parameter	iinftra_p = 2
	Index for L_inf translation norm. More...
integer, parameter	iinfrot_p = 3
	Index for L_inf rotation norm. More...
integer, parameter	iinfgen_p = 4
	Index for L_inf generalized DOF norm. More...

Detailed Description

Module with data types representing convergence norm objects.

The module also contains subroutines for accessing the norm data.

Function/Subroutine Documentation

checkdivergence()

subroutine normtypemodule::checkdivergence	(	type(testitemtype), intent(inout)	testItem,
		real(dp), intent(in)	value,
		logical, intent(inout)	mayDiverge
	)

Check if a given norm is showing sign of possible divergence.

Parameters

	testItem	The convergence check object to check for dovergence
[in]	value	Current norm value
	mayDiverge	If .true., a possible divergence is detected

Author

Knut Morten Okstad

Date

19 Mar 2004

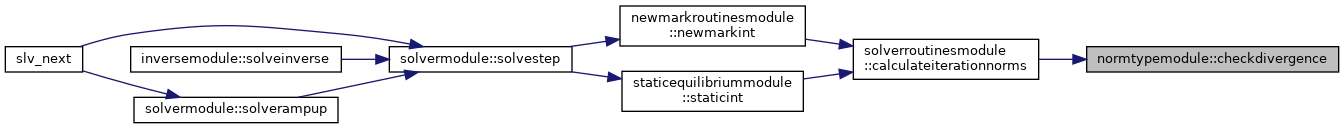

Here is the caller graph for this function:

deallocateconvset()

subroutine normtypemodule::deallocateconvset

(

type(testsettype), intent(inout)

convSet

)

Deallocates a set of convergence checks object.

Parameters

convSet

The normtypemodule::testsettype object to deallocate

Author

Knut Morten Okstad

Date

23 Jan 2017

hasconverged()

logical function normtypemodule::hasconverged	(	type(testsettype), intent(in)	convSet,
		real(dp), intent(in), optional	factor_opt
	)

Checks if the state of the convergence checks set is converged.

Parameters

	convSet	Set of convergence checks
[in]	factor_opt	Optional tolerance scaling factor

Author

Bjorn Haugen

Date

28 Mar 2003

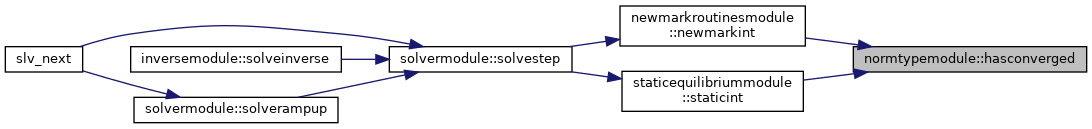

Here is the caller graph for this function:

initconvchecks()

subroutine normtypemodule::initconvchecks	(	type(testsettype), intent(inout)	convSet,
		integer, intent(in)	maxIt,
		integer, intent(in)	monWorst,
		integer, intent(in)	monIter,
		real(dp), intent(in)	relTol,
		integer, intent(out)	err
	)

Initialize the convergence checks from command-line options.

Parameters

	convSet	Set of convergence checks
[in]	maxIt	Maximum number of iterations per time step
[in]	monWorst	Number of DOFs to monitor on poor convergence
[in]	monIter	Number of iterations to monitor before maxit
[in]	relTol	Velocity proportional tolerance on velocity corrections
[out]	err	Error flag

Author

Knut Morten Okstad

Date

30 Jun 2004

Here is the call graph for this function:

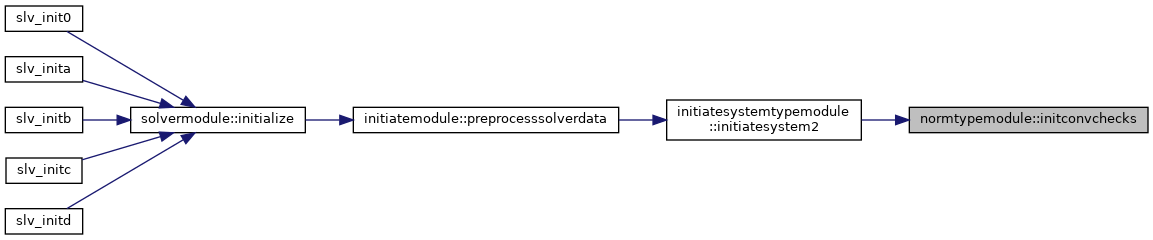

Here is the caller graph for this function:

inittolerance()

subroutine, private normtypemodule::inittolerance ( character(len=*), intent(in)  tolType, character(len=*), intent(in)  normName, type(testitemtype), intent(inout)  testItem  )

private

Initializes a convergence check with data from command-line.

Parameters

[in]	tolType	Command-line option to get convergence tolerance from
[in]	normName	Name of solution norm defining the convergence check
	testItem	The convergence check object to initialize

Author

Knut Morten Okstad

Date

29 Apr 2003

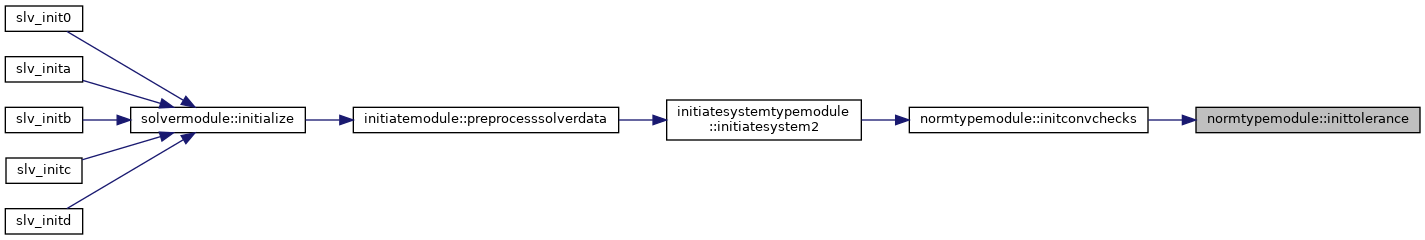

Here is the caller graph for this function:

nullifyconvset()

subroutine normtypemodule::nullifyconvset

(

type(testsettype), intent(out)

convSet

)

Initializes a set of convergence checks object.

Parameters

[out]

convSet

The normtypemodule::testsettype object to initialize

Author

Knut Morten Okstad

Date

30 Jun 2004

Variable Documentation

iinfgen_p

integer, parameter normtypemodule::iinfgen_p = 4

Index for L_inf generalized DOF norm.

iinfrot_p

integer, parameter normtypemodule::iinfrot_p = 3

Index for L_inf rotation norm.

iinftra_p

integer, parameter normtypemodule::iinftra_p = 2

Index for L_inf translation norm.

ivecnorm_p

integer, parameter normtypemodule::ivecnorm_p = 1

Index for L_2 displacement norm.

nnormtypes_p

integer, parameter normtypemodule::nnormtypes_p = 4

Total number of norm types.
