Module for general rectangular matrices with disk storage,. More...

Data Types
type	diskmatrixtype
	Data type representing a rectangular matrix with disk storage. More...

interface	dmmattimesvec
	Multiplies a disk matrix with a given vector. More...

Functions/Subroutines
integer function	dmgetswapsize ()
	Returns requested size of one swap section from command-line option. More...

subroutine	dmnullify (this)
	Initializes a disk matrix object. More...

subroutine	dmwrite (this, lpu, name)
	Writes out the content of a disk matrix. More...

subroutine	dmopen (this, fileName, fileChkSum, nRows, nCols, status, err, nColSwap, swapSize, wantTag)
	Opens a disk matrix file for ReadOnly operations. More...

integer(i8) function	dmsize (this, iDim)
	Returns the size of the given disk matrix. More...

subroutine	dmclose (this, err)
	Closes the disk matrix file and releases the associated swap array. More...

subroutine, private	dmgetaddress (this, rInd, cInd, section, index, err)
	Gets swap section number and local array index for matrix element. More...

subroutine, private	dmswap (this, newSection, err)
	Writes current section to disk and reads a new one into core. More...

subroutine, private	dmsinglecast (this, ielSwap, nelSwap)
	Casts the in-core matrix elements from double to single precision. More...

real(sp) function	dmgetvalue (this, rInd, cInd, err)
	Returns the value of a matrix element. More...

real(sp) function, dimension(:,:), pointer	dmgetswapsecptr (this, cInd, err)
	Returns a pointer to a matrix containing a swap section. More...

real(sp) function, dimension(:), pointer	dmgetcolptr (this, cInd, err)
	Returns a pointer to column cInd of the given disk matrix. More...

subroutine	dmgetcol (this, cInd, col, err)
	Gets a column of the given disk matrix. More...

subroutine	dmgetrow (this, rInd, row, err)
	Gets a row of the given disk matrix. More...

subroutine, private	dmmattimesvec_sp (this, xVec, yVec, err, doInitialize)
	Multiplies a disk matrix with a given single precision vector. More...

subroutine, private	dmmattimesvec_dp (this, xVec, yVec, err, doInitialize)
	Multiplies a disk matrix with a given double precision vector. More...

subroutine	dmmattranstimesvec (this, xVec, yVec, err)
	Multiplies the transpose of a disk matrix with a given vector. More...

subroutine	dmfindabsmaxrowvalues (this, maxRowVal, err)
	Finds the absolute maximum value for each row in a disk matrix. More...

Detailed Description

Module for general rectangular matrices with disk storage,.

This module contains a data type and associated utility routines for representing a general rectangular matrix stored on a disk file. This module is single-precision limited version of diskmatrixmodule. It supports ReadOnly matrices only.

Function/Subroutine Documentation

◆ dmclose()

subroutine sdiskmatrixmodule::dmclose	(	type(diskmatrixtype), intent(inout)	this,
		integer, intent(out)	err
	)

Closes the disk matrix file and releases the associated swap array.

Parameters

	this	The sdiskmatrixmodule::diskmatrixtype object to close
[out]	err	Error indicator

Author: Knut Morten Okstad

Date: 1 Dec 2000

Here is the call graph for this function:

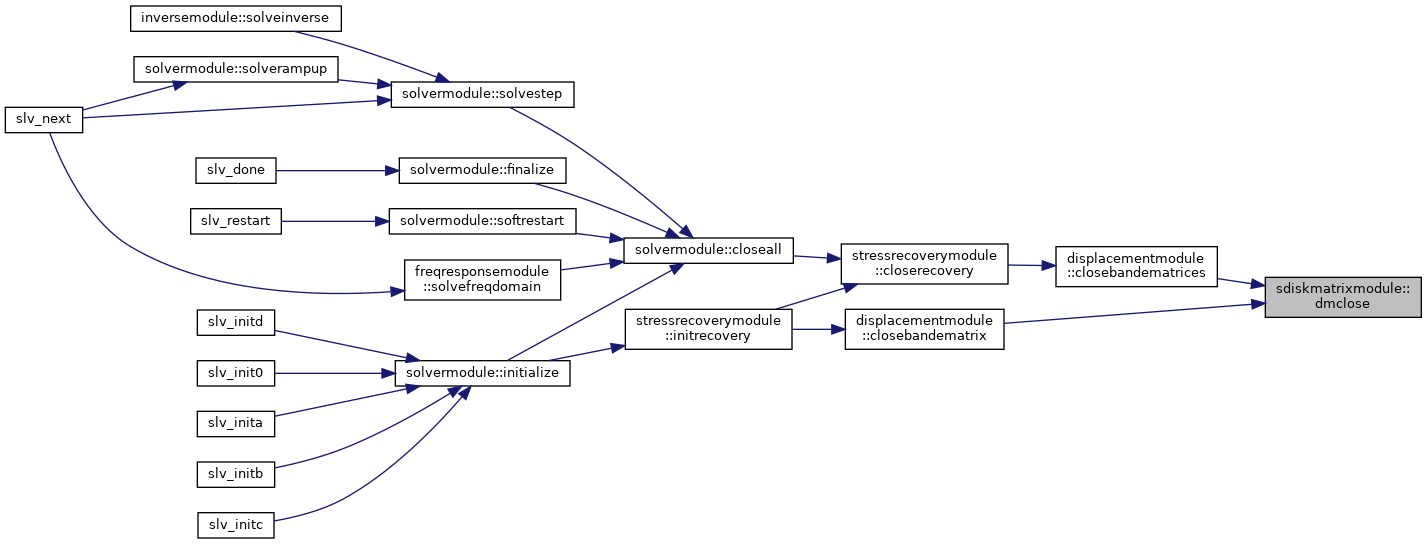

Here is the caller graph for this function:

◆ dmfindabsmaxrowvalues()

subroutine sdiskmatrixmodule::dmfindabsmaxrowvalues	(	type(diskmatrixtype), intent(inout)	this,
		real(sp), dimension(:), intent(out)	maxRowVal,
		integer, intent(out)	err
	)

Finds the absolute maximum value for each row in a disk matrix.

Parameters

	this	The sdiskmatrixmodule::diskmatrixtype object to address
[out]	maxRowVal	Absolute maximum row values
[out]	err	Error indicator

Author: Bjorn Haugen

Date: 25 Mar 2003

Here is the call graph for this function:

◆ dmgetaddress()

subroutine, private sdiskmatrixmodule::dmgetaddress	(	type(diskmatrixtype), intent(inout)	this,
		integer, intent(in)	rInd,
		integer, intent(in)	cInd,
		integer, intent(out)	section,
		integer, intent(out)	index,
		integer, intent(out)	err
	)

private

Gets swap section number and local array index for matrix element.

Parameters

[in]	this	The sdiskmatrixmodule::diskmatrixtype object to address
[in]	rInd	Row index of matrix element to get address of
[in]	cInd	Column index of matrix element to get address of
[out]	section	Index of swap section containing the matrix element
[out]	index	Array index within that swap section for matrix element
[out]	err	Error indicator

Author: Bjorn Haugen

Date: 10 Feb 1999

Here is the caller graph for this function:

◆ dmgetcol()

subroutine sdiskmatrixmodule::dmgetcol	(	type(diskmatrixtype), intent(inout)	this,
		integer, intent(in)	cInd,
		real(sp), dimension(:), intent(out)	col,
		integer, intent(out)	err
	)

Gets a column of the given disk matrix.

Parameters

	this	The sdiskmatrixmodule::diskmatrixtype object to return for
[in]	cInd	Column index to return for
[out]	col	Content of the matrix column
[out]	err	Error indicator

Author: Bjorn Haugen

Date: 10 Feb 1999

Here is the call graph for this function:

◆ dmgetcolptr()

real(sp) function, dimension(:), pointer sdiskmatrixmodule::dmgetcolptr	(	type(diskmatrixtype), intent(inout)	this,
		integer, intent(in)	cInd,
		integer, intent(out)	err
	)

Returns a pointer to column cInd of the given disk matrix.

Parameters

	this	The sdiskmatrixmodule::diskmatrixtype object to return for
[in]	cInd	Column index to return pointer for
[out]	err	Error indicator

Note: This function circumvents all protection and should be used with extreme caution and only for ReadOnly purposes when speed is essential. Calls to other dm... routines can also change the contents of the memory being pointed to.

Author: Bjorn Haugen and Karl Erik Thoresen

Date: 5 May 1999

Here is the call graph for this function:

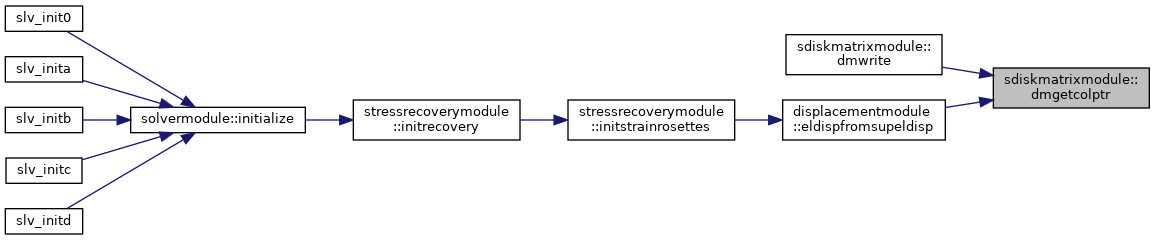

Here is the caller graph for this function:

◆ dmgetrow()

subroutine sdiskmatrixmodule::dmgetrow	(	type(diskmatrixtype), intent(inout)	this,
		integer, intent(in)	rInd,
		real(sp), dimension(:), intent(out)	row,
		integer, intent(out)	err
	)

Gets a row of the given disk matrix.

Parameters

	this	The sdiskmatrixmodule::diskmatrixtype object to return for
[in]	rInd	Row index to return for
[out]	row	Content of the matrix row
[out]	err	Error indicator

Author: Bjorn Haugen

Date: 10 Feb 1999

Here is the call graph for this function:

◆ dmgetswapsecptr()

real(sp) function, dimension(:,:), pointer sdiskmatrixmodule::dmgetswapsecptr	(	type(diskmatrixtype), intent(inout)	this,
		integer, intent(in)	cInd,
		integer, intent(out)	err
	)

Returns a pointer to a matrix containing a swap section.

Parameters

	this	The sdiskmatrixmodule::diskmatrixtype object to return for
[in]	cInd	Column index for start of swap section to return for
[out]	err	Error indicator

The pointer to the entire swap section starting at column cInd of the given disk matrix. The function can be used for speedy random access of the matrix elements.

Author: Knut Morten Okstad

Date: 13 Sep 2004

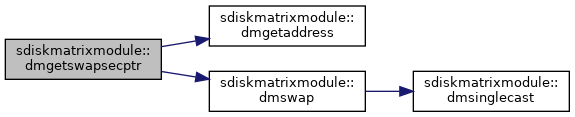

Here is the call graph for this function:

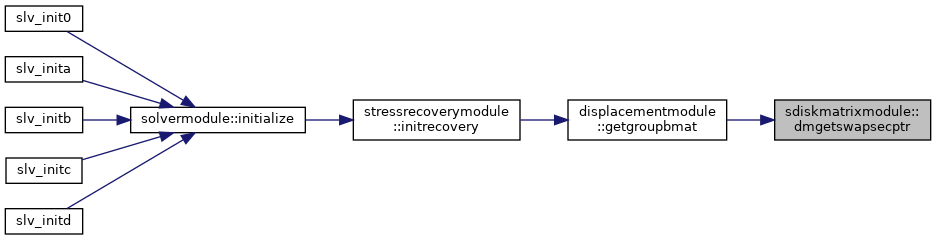

Here is the caller graph for this function:

◆ dmgetswapsize()

integer function sdiskmatrixmodule::dmgetswapsize

Returns requested size of one swap section from command-line option.

Author: Knut Morten Okstad

Date: 31 Jan 2002

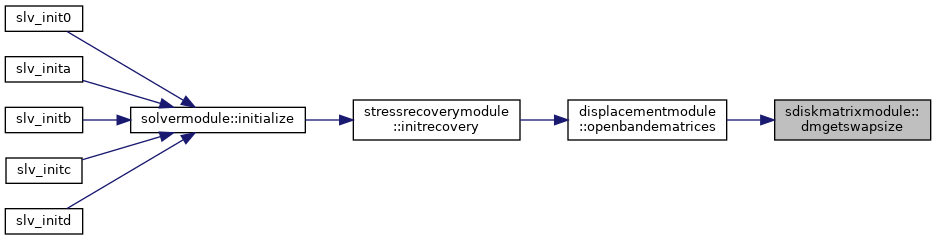

Here is the caller graph for this function:

◆ dmgetvalue()

real(sp) function sdiskmatrixmodule::dmgetvalue	(	type(diskmatrixtype), intent(inout)	this,
		integer, intent(in)	rInd,
		integer, intent(in)	cInd,
		integer, intent(out)	err
	)

Returns the value of a matrix element.

Parameters

	this	The sdiskmatrixmodule::diskmatrixtype object to return for
[in]	rInd	Row index of matrix element to return
[in]	cInd	Column index of matrix element to return
[out]	err	Error indicator

Author: Bjorn Haugen

Date: 10 Feb 1999

Here is the call graph for this function:

◆ dmmattimesvec_dp()

subroutine, private sdiskmatrixmodule::dmmattimesvec_dp	(	type(diskmatrixtype), intent(inout)	this,
		real(dp), dimension(:), intent(in)	xVec,
		real(sp), dimension(:), intent(inout)	yVec,
		integer, intent(out)	err,
		logical, intent(in), optional	doInitialize
	)

private

Multiplies a disk matrix with a given double precision vector.

Parameters

	this	The sdiskmatrixmodule::diskmatrixtype object (A) to multiply
[in]	xVec	The vector (x) to multiply matrix A with
	yVec	The resulting vector (y)
[out]	err	Error indicator
[in]	doInitialize	If not present or .true., the existing content of yVec is discarded

One of of the following operations are performed y = A*x y = y + A*x depending on the value of doInitialize.

Author: Bjorn Haugen

Date: 10 Feb 1999

◆ dmmattimesvec_sp()

subroutine, private sdiskmatrixmodule::dmmattimesvec_sp	(	type(diskmatrixtype), intent(inout)	this,
		real(sp), dimension(:), intent(in)	xVec,
		real(sp), dimension(:), intent(inout)	yVec,
		integer, intent(out)	err,
		logical, intent(in), optional	doInitialize
	)

private

Multiplies a disk matrix with a given single precision vector.

Parameters

	this	The sdiskmatrixmodule::diskmatrixtype object (A) to multiply
[in]	xVec	The vector (x) to multiply matrix A with
	yVec	The resulting vector (y)
[out]	err	Error indicator
[in]	doInitialize	If not present or .true., the existing content of yVec is discarded

One of of the following operations are performed y = A*x y = y + A*x depending on the value of doInitialize.

Author: Bjorn Haugen

Date: 10 Feb 1999

◆ dmmattranstimesvec()

subroutine sdiskmatrixmodule::dmmattranstimesvec	(	type(diskmatrixtype), intent(inout)	this,
		real(sp), dimension(:), intent(in)	xVec,
		real(sp), dimension(:), intent(out)	yVec,
		integer, intent(out)	err
	)

Multiplies the transpose of a disk matrix with a given vector.

Parameters

	this	The sdiskmatrixmodule::diskmatrixtype object (A) to multiply
[in]	xVec	The vector (x) to multiply matrix A with
	yVec	The resulting vector (y)
[out]	err	Error indicator

The following operation is performed y = A^t*x

Author: Bjorn Haugen

Date: 10 Feb 1999

Here is the call graph for this function:

◆ dmnullify()

subroutine sdiskmatrixmodule::dmnullify ( type(diskmatrixtype), intent(out) this )

Initializes a disk matrix object.

Parameters

[out] this The sdiskmatrixmodule::diskmatrixtype object to be initialized

Author: Knut Morten Okstad

Date: 14 Feb 2002

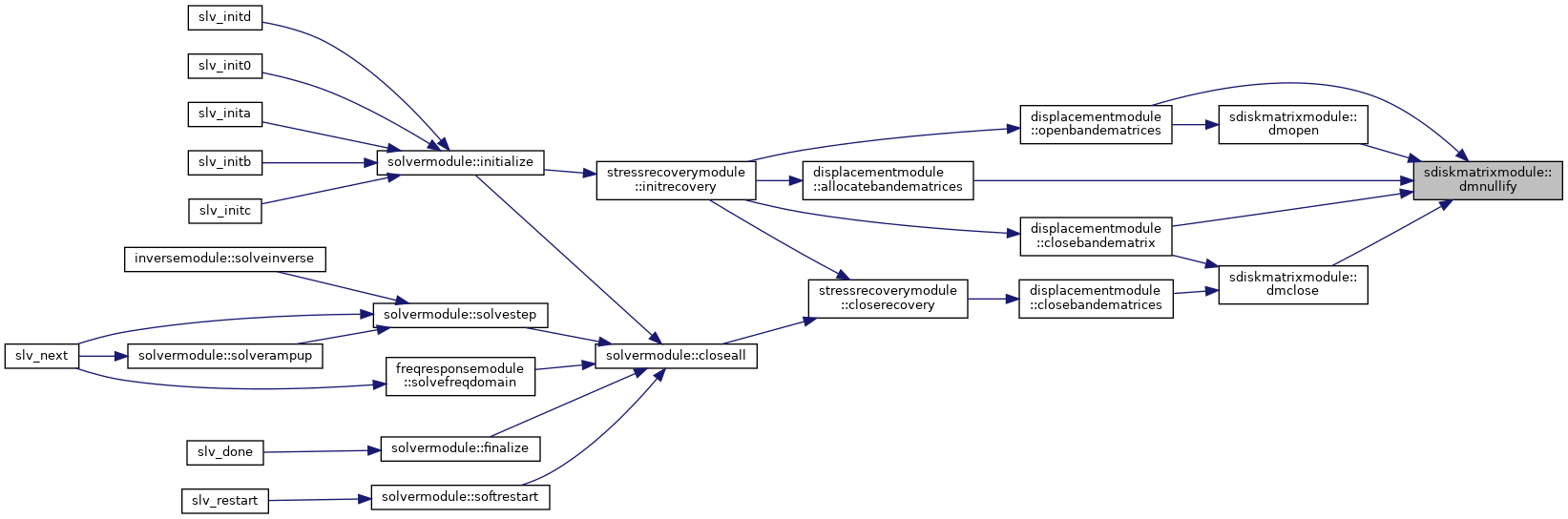

Here is the caller graph for this function:

◆ dmopen()

subroutine sdiskmatrixmodule::dmopen	(	type(diskmatrixtype), intent(out)	this,
		character(len=*), intent(in)	fileName,
		integer, intent(inout)	fileChkSum,
		integer, intent(in)	nRows,
		integer, intent(in)	nCols,
		integer, intent(in)	status,
		integer, intent(out)	err,
		integer, intent(in), optional	nColSwap,
		integer, intent(in), optional	swapSize,
		character(len=*), intent(in), optional	wantTag
	)

Opens a disk matrix file for ReadOnly operations.

Parameters

[out]	this	The sdiskmatrixmodule::diskmatrixtype object to open
[in]	fileName	Name of file to read/write matrix content from/to
	fileChkSum	Check-sum value of the FE part associated with this
[in]	nRows	Number of matrix rows
[in]	nCols	Number of matrix columns
[in]	status	File opening mode, must be diskmatrixmodule::dmold_p
[out]	err	Error indicator
[in]	nColSwap	Optional number of matrix columns per swap section
[in]	swapSize	Optional size of swap section in double precision words
[in]	wantTag	Expected file tag for ReadOnly matrices

Author: Knut Morten Okstad

Date: 1 Jun 2001

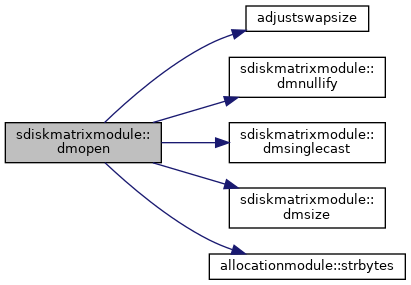

Here is the call graph for this function:

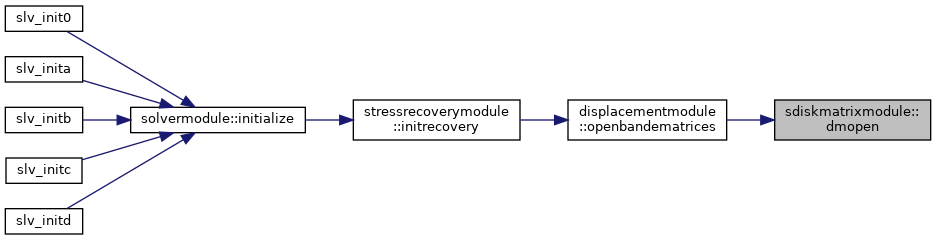

Here is the caller graph for this function:

◆ dmsinglecast()

subroutine, private sdiskmatrixmodule::dmsinglecast	(	type(diskmatrixtype), intent(inout)	this,
		integer, intent(in)	ielSwap,
		integer, intent(in)	nelSwap
	)

private

Casts the in-core matrix elements from double to single precision.

Parameters

	this	The sdiskmatrixmodule::diskmatrixtype object to cast for
[in]	ielSwap	Index to first element in swap section
[in]	nelSwap	Number of elements in swap section to cast for

It is assumed that the double-precision buffer array sdiskmatrixmodule::diskmatrixtype::vald is not larger than one column.

Author: Knut Morten Okstad

Date: 19 May 2005

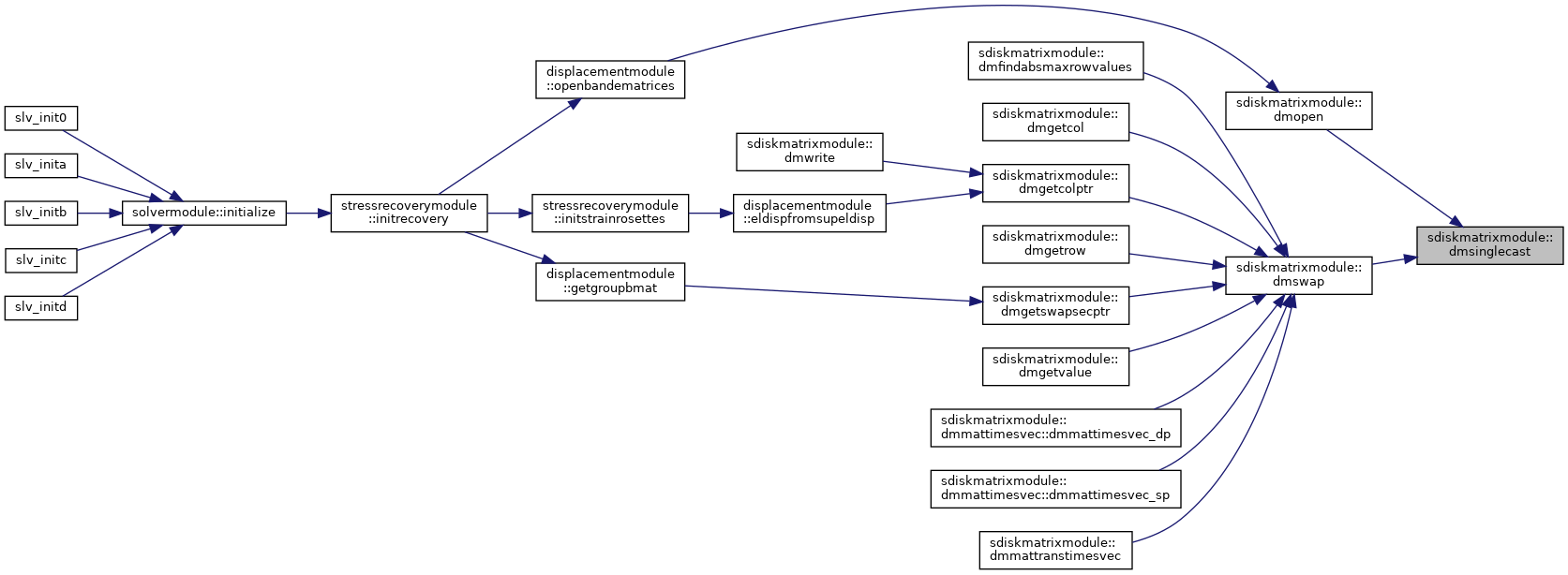

Here is the caller graph for this function:

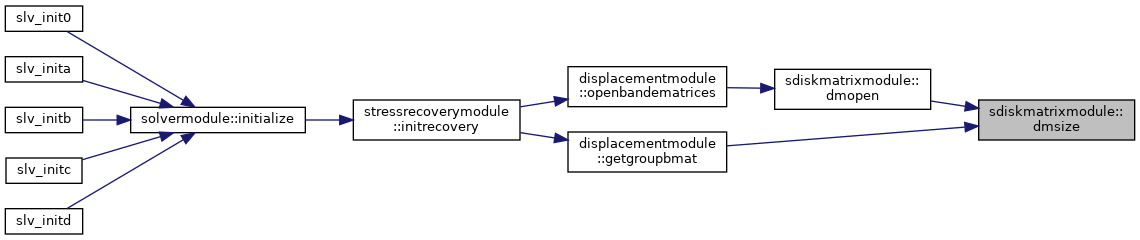

◆ dmsize()

integer(i8) function sdiskmatrixmodule::dmsize	(	type(diskmatrixtype), intent(in)	this,
		integer, intent(in), optional	iDim
	)

Returns the size of the given disk matrix.

Parameters

[in]	this	The sdiskmatrixmodule::diskmatrixtype object to address
[in]	iDim	Which size parameter to return: if not present, return the total size (nrows×ncols) 1: number of matrix rows (nrows) 2: number of matrix columns (ncols) for any other value: return the number of columns in swap array

Author: Bjorn Haugen

Date: 29 Jan 1999

Here is the caller graph for this function:

◆ dmswap()

subroutine, private sdiskmatrixmodule::dmswap	(	type(diskmatrixtype), intent(inout)	this,
		integer, intent(in)	newSection,
		integer, intent(out)	err
	)

private

Writes current section to disk and reads a new one into core.

Parameters

[in]	this	The sdiskmatrixmodule::diskmatrixtype object to swap for
[in]	newSection	Index of the swap section to read into core
[out]	err	Error indicator

Author: Knut Morten Okstad

Date: 1 Dec 2000

Here is the call graph for this function:

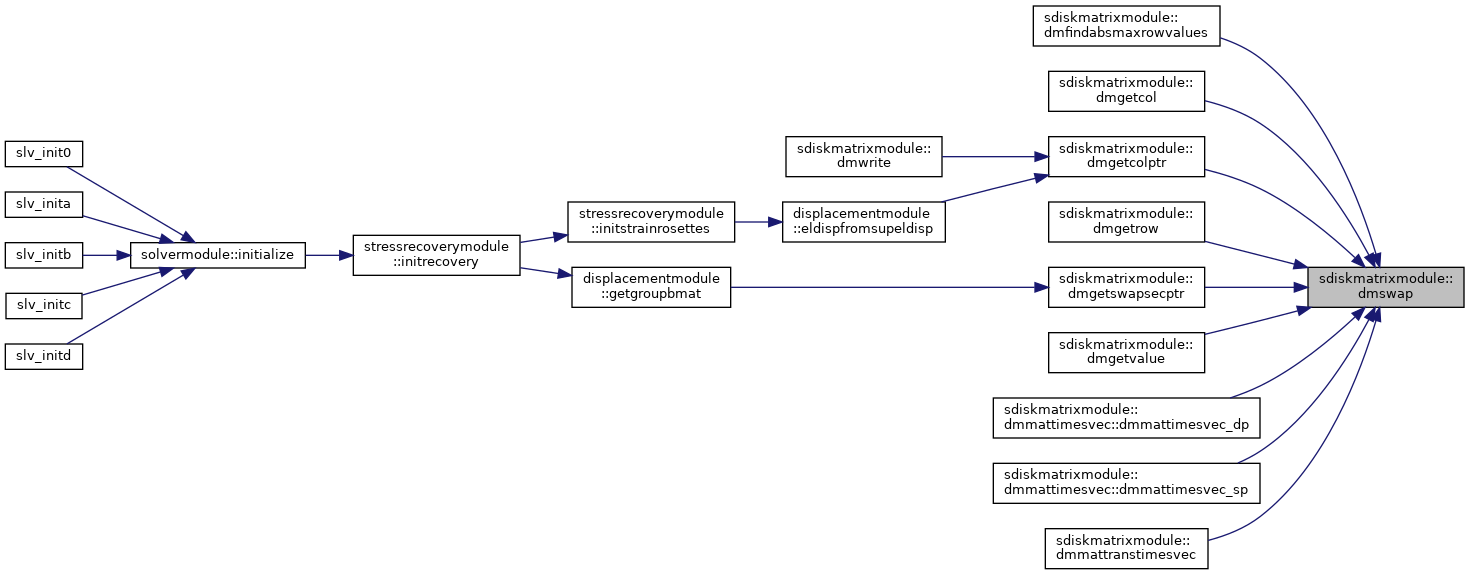

Here is the caller graph for this function:

◆ dmwrite()

subroutine sdiskmatrixmodule::dmwrite	(	type(diskmatrixtype), intent(inout)	this,
		integer, intent(in)	lpu,
		character(len=*), intent(in)	name
	)

Writes out the content of a disk matrix.

Parameters

[in]	this	The sdiskmatrixmodule::diskmatrixtype object to write out
[in]	lpu	File unit number to write to
[in]	name	Matrix identifier

Author: Knut Morten Okstad

Date: 18 Mar 2003

Data Types

Functions/Subroutines

Detailed Description

Function/Subroutine Documentation

◆ dmclose()

◆ dmfindabsmaxrowvalues()

◆ dmgetaddress()

◆ dmgetcol()

◆ dmgetcolptr()

◆ dmgetrow()

◆ dmgetswapsecptr()

◆ dmgetswapsize()

◆ dmgetvalue()

◆ dmmattimesvec_dp()

◆ dmmattimesvec_sp()

◆ dmmattranstimesvec()

◆ dmnullify()

◆ dmopen()

◆ dmsinglecast()

◆ dmsize()

◆ dmswap()

◆ dmwrite()
