Module for management of general sparse matrices. More...

Data Types
type	sparsematrixtype
	Data type representing a rectangular sparse matrix. More...

Functions/Subroutines
subroutine	smnullify (this)
	Initializes a sparse matrix object. More...

subroutine	smallocate (this, nRows, nCols, useInitSize, err)
	Allocates a sparse matrix object. More...

subroutine	smsetmatrix (this, mRow, mCol, values, err)
	Initializes a sparse matrix with the given data. More...

integer function	smsize (this, iDim)
	Returns the dimension of a sparse matrix. More...

subroutine	smdeallocate (this)
	Deallocates a sparse matrix. More...

subroutine	smtranspose (this)
	Transposes a sparse matrix. More...

subroutine	smsetvalue (this, value, rInd, cInd, err, lpu)
	Assigns a matrix element. More...

real(dp) function	smgetvalue (this, rInd, cInd)
	Returns a matrix element. More...

real(dp) function, dimension(this%nrows)	smgetcol (this, cInd)
	Returns a matrix column. More...

real(dp) function, dimension(this%ncols)	smgetrow (this, rInd)
	Returns a matrix row. More...

subroutine	smmattimesvec (this, xVec, yVec, err)
	Multiplies a sparse matrix with a vector. More...

subroutine	smmattranstimesvec (this, xVec, yVec, err)
	Multiplies the transpose of a sparse matrix with a vector. More...

subroutine	smshrinktofit (this, err)
	Reallocates a sparse matrix to exactly fit its dimensions. More...

subroutine	smwrite (this, name, lpu, writeMatrixElms)
	Writes out the size parameters for a sparse matrix. More...

subroutine, private	smgrow (this, err, lpu)
	Expands the allocated space for a sparse matrix by a fixed amount. More...

Variables
integer, parameter, private	initsize_p = 10000
	Initial allocated size for a new sparse matrix. More...

real(dp), parameter, private	growfactor_p = 1.5_dp
	Relative size increment when the matrix is too small. More...

Detailed Description

Module for management of general sparse matrices.

This module contains a data type and associated utility routines for representing a general sparse matrix stored on classic coordinate form.

Note: All data members of sparsematrixmodule::sparsematrixtype are private and can therefore be accessed only through the subroutines/functions contained in this module.

Function/Subroutine Documentation

◆ smallocate()

subroutine sparsematrixmodule::smallocate	(	type(sparsematrixtype), intent(out)	this,
		integer, intent(in)	nRows,
		integer, intent(in)	nCols,
		logical, intent(in)	useInitSize,
		integer, intent(out)	err
	)

Allocates a sparse matrix object.

Parameters

[out]	this	The sparsematrixmodule::sparsematrixtype object to be allocated
[in]	nRows	Number of matrix rows
[in]	nCols	Number of matrix columns
[in]	useInitSize	If .true., perform initial allocation using the sparsematrixmodule::initsize_p value as number of non-zeroes
[out]	err	Error indicator

Author: Knut Morten Okstad

Date: Jan 2003

Here is the caller graph for this function:

◆ smdeallocate()

subroutine sparsematrixmodule::smdeallocate ( type(sparsematrixtype), intent(inout) this )

Deallocates a sparse matrix.

Parameters

this	The sparsematrixmodule::sparsematrixtype object to deallocate

Author: Knut Morten Okstad

Date: Jan 2003

Here is the caller graph for this function:

◆ smgetcol()

real(dp) function, dimension(this%nrows) sparsematrixmodule::smgetcol	(	type(sparsematrixtype), intent(in)	this,
		integer, intent(in)	cInd
	)

Returns a matrix column.

Parameters

[in]	this	The sparsematrixmodule::sparsematrixtype object to return the column for
[in]	cInd	Index of the matrix column to return

Author: Bjorn Haugen

Date: Jan 1999

◆ smgetrow()

real(dp) function, dimension(this%ncols) sparsematrixmodule::smgetrow	(	type(sparsematrixtype), intent(in)	this,
		integer, intent(in)	rInd
	)

Returns a matrix row.

Parameters

[in]	this	The sparsematrixmodule::sparsematrixtype object to return the row for
[in]	rInd	Index of the matrix row to return

Author: Bjorn Haugen

Date: Jan 1999

◆ smgetvalue()

real(dp) function sparsematrixmodule::smgetvalue	(	type(sparsematrixtype), intent(in)	this,
		integer, intent(in)	rInd,
		integer, intent(in)	cInd
	)

Returns a matrix element.

Parameters

[in]	this	The sparsematrixmodule::sparsematrixtype object to return the element for
[in]	rInd	Row index of the matrix element to return
[in]	cInd	Column index of the matrix element to return

Author: Bjorn Haugen

Date: Jan 1999

◆ smgrow()

subroutine, private sparsematrixmodule::smgrow	(	type(sparsematrixtype), intent(inout)	this,
		integer, intent(out)	err,
		integer, intent(in), optional	lpu
	)

private

Expands the allocated space for a sparse matrix by a fixed amount.

Parameters

	this	The sparsematrixmodule::sparsematrixtype object to expand
[out]	err	Error indicator
[in]	lpu	Optional file unit number logging the rellocation

The number of times n to call this subroutine to grow a matrix to size x with a given growfactor is:

n = log(x) / log(growfactor)

Author: Knut Morten Okstad

Date: Jan 2003

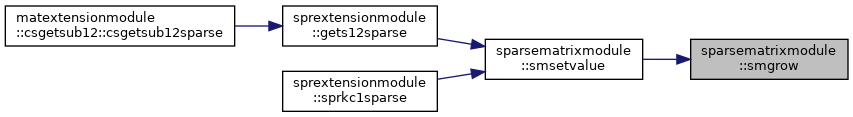

Here is the caller graph for this function:

◆ smmattimesvec()

subroutine sparsematrixmodule::smmattimesvec	(	type(sparsematrixtype), intent(in)	this,
		real(dp), dimension(:), intent(in)	xVec,
		real(dp), dimension(:), intent(out)	yVec,
		integer, intent(out)	err
	)

Multiplies a sparse matrix with a vector.

Parameters

[in]	this	The sparsematrixmodule::sparsematrixtype object (A) being the left-hand-size of the multiplication operation
[in]	xVec	The right-hand-side vector (x) of the multiplication
[out]	yVec	The resulting vector (y)
[out]	err	Error indicator

Performs the operation y = A * x .

Author: Bjorn Haugen

Date: Jan 1999

◆ smmattranstimesvec()

subroutine sparsematrixmodule::smmattranstimesvec	(	type(sparsematrixtype), intent(in)	this,
		real(dp), dimension(:), intent(in)	xVec,
		real(dp), dimension(:), intent(out)	yVec,
		integer, intent(out)	err
	)

Multiplies the transpose of a sparse matrix with a vector.

Parameters

[in]	this	The sparsematrixmodule::sparsematrixtype object (A) being the left-hand-size of the multiplication operation
[in]	xVec	The right-hand-side vector (x) of the multiplication
[out]	yVec	The resulting vector (y)
[out]	err	Error indicator

Performs the operation y = A^t * x .

Author: Bjorn Haugen

Date: Jan 1999

Here is the caller graph for this function:

◆ smnullify()

subroutine sparsematrixmodule::smnullify ( type(sparsematrixtype), intent(out) this )

Initializes a sparse matrix object.

Parameters

[out] this The sparsematrixmodule::sparsematrixtype object to be initialized

Author: Knut Morten Okstad

Date: Mar 2003

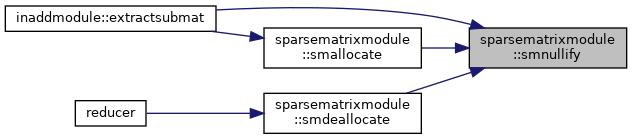

Here is the caller graph for this function:

◆ smsetmatrix()

subroutine sparsematrixmodule::smsetmatrix	(	type(sparsematrixtype), intent(inout)	this,
		integer, dimension(:), pointer	mRow,
		integer, dimension(:), pointer	mCol,
		real(dp), dimension(:), pointer	values,
		integer, intent(out)	err
	)

Initializes a sparse matrix with the given data.

Parameters

	this	The sparsematrixmodule::sparsematrixtype object to initialize
[in]	mRow	Row indices of the non-zero entries
[in]	mCol	Column indices of the non-zero entries
[in]	values	All non-zero entries of the matrix
[out]	err	Error indicator

Note: The input arrays are referenced directly by the sparsematrixmodule::sparsematrixtype object (pointer-associated) and not copied. They must therefore not be accessed from outside the object after its destruction (by calling sparsematrixmodule::smdeallocate), as these arrays then would be deallocated as well.

Author: Knut Morten Okstad

Date: 16 Sep 2004

Here is the caller graph for this function:

◆ smsetvalue()

subroutine sparsematrixmodule::smsetvalue	(	type(sparsematrixtype), intent(inout)	this,
		real(dp), intent(in)	value,
		integer, intent(in)	rInd,
		integer, intent(in)	cInd,
		integer, intent(out)	err,
		integer, intent(in), optional	lpu
	)

Assigns a matrix element.

Parameters

	this	The sparsematrixmodule::sparsematrixtype object to receive the new matrix element
[in]	value	The new matrix element value
[in]	rInd	Row index of the new matrix element
[in]	cInd	Column index of the new matrix element
[out]	err	Error indicator
[in]	lpu	Optional file unit number for error- and other messages

Author: Bjorn Haugen

Date: Jan 1999

Here is the caller graph for this function:

◆ smshrinktofit()

subroutine sparsematrixmodule::smshrinktofit	(	type(sparsematrixtype), intent(inout)	this,
		integer, intent(out)	err
	)

Reallocates a sparse matrix to exactly fit its dimensions.

Parameters

	this	The sparsematrixmodule::sparsematrixtype object to reallocate
[out]	err	Error indicator

Author: Knut Morten Okstad

Date: Jan 2003

Here is the caller graph for this function:

◆ smsize()

integer function sparsematrixmodule::smsize	(	type(sparsematrixtype), intent(in)	this,
		integer, intent(in), optional	iDim
	)

Returns the dimension of a sparse matrix.

Parameters

[in]	this	The sparsematrixmodule::sparsematrixtype object to return the dimension of
[in]	iDim	Which dimension to return the size for: Number of rows Number of columns Number of non-zeroes

Author: Bjorn Haugen

Date: Jan 1999

Here is the caller graph for this function:

◆ smtranspose()

subroutine sparsematrixmodule::smtranspose ( type(sparsematrixtype), intent(inout) this )

Transposes a sparse matrix.

Parameters

this	The sparsematrixmodule::sparsematrixtype object to transpose

Author: Bjorn Haugen

Date: Jan 1999

◆ smwrite()

subroutine sparsematrixmodule::smwrite	(	type(sparsematrixtype), intent(in)	this,
		character(len=*), intent(in)	name,
		integer, intent(in)	lpu,
		logical, intent(in), optional	writeMatrixElms
	)

Writes out the size parameters for a sparse matrix.

Parameters

[in]	this	The sparsematrixmodule::sparsematrixtype object to write size parameters for
[in]	name	Matrix identifier
[in]	lpu	File unit number to write to
[in]	writeMatrixElms	If .true., write out the matrix elements as well

Author: Knut Morten Okstad

Date: Mar 2003

Here is the caller graph for this function:

Variable Documentation

◆ growfactor_p

real(dp), parameter, private sparsematrixmodule::growfactor_p = 1.5_dp

private

Relative size increment when the matrix is too small.

◆ initsize_p

integer, parameter, private sparsematrixmodule::initsize_p = 10000

private

Initial allocated size for a new sparse matrix.
