Module with data types representing superelement load objects. More...

Data Types
type	supelloadtype
	Data type representing a superelement load object. More...

interface	writeobject
	Standard routine for writing an object to file. More...

Functions/Subroutines
subroutine, public	initiateloads (infp, sups, engines, loads, err)
	Initializes superelement loads with data from the solver input file. More...

subroutine	writeloadtype (load, io, complexity)
	Standard routine for writing an object to file. More...

subroutine	nullifyload (load)
	Initializes a superelement load object. More...

subroutine, public	deallocateloads (loads)
	Deallocates an array of superelement load objects. More...

Detailed Description

Module with data types representing superelement load objects.

The module also contains subroutines for accessing or manipulating the superelement load data.

Function/Subroutine Documentation

subroutine, public supelloadtypemodule::deallocateloads ( type(supelloadtype), dimension(:), pointer loads )

Deallocates an array of superelement load objects.

Parameters

loads The supelloadtypemodule::supelloadtype objects to deallocate

date 23 Jan 2017

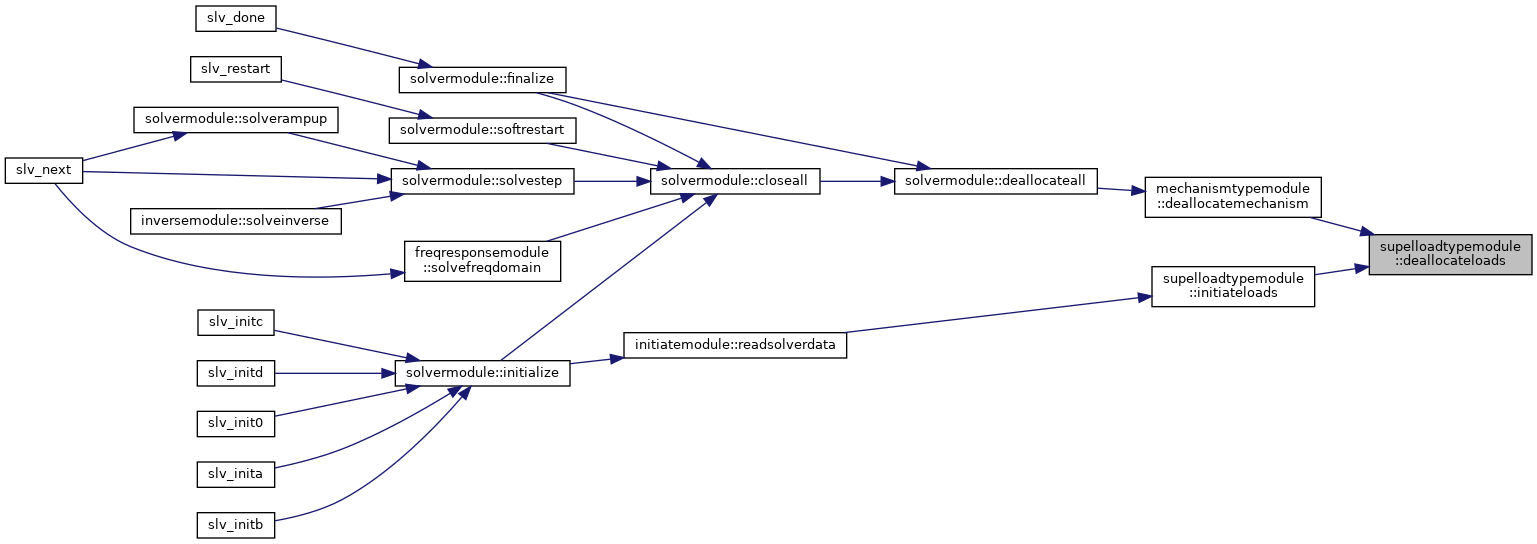

Here is the caller graph for this function:

subroutine, public supelloadtypemodule::initiateloads	(	integer, intent(in)	infp,
		type(supeltype), dimension(:), intent(in)	sups,
		type(enginetype), dimension(:), intent(in)	engines,
		type(supelloadtype), dimension(:), pointer	loads,
		integer, intent(out)	err
	)

Initializes superelement loads with data from the solver input file.

Parameters

[in]	infp	File unit number for the solver input file
[in]	sups	Array of all superelements in the model
[in]	engines	Array of all engines in the model
[out]	loads	Array of all loads in the model
[out]	err	Error flag

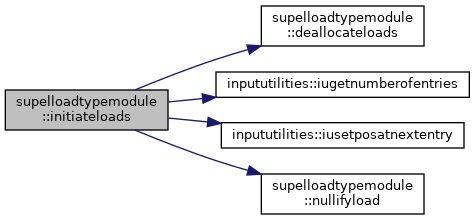

Here is the call graph for this function:

Here is the caller graph for this function:

subroutine supelloadtypemodule::nullifyload ( type(supelloadtype), intent(out) load )

Initializes a superelement load object.

Parameters

load	The supelloadtypemodule::supelloadtype object to initialize

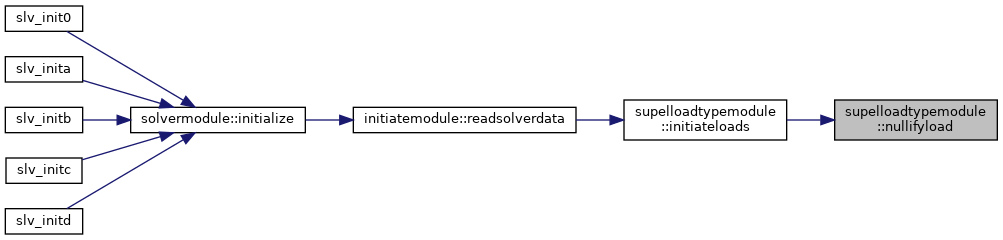

Here is the caller graph for this function:

subroutine supelloadtypemodule::writeloadtype	(	type(supelloadtype), intent(in)	load,
		integer, intent(in)	io,
		integer, intent(in), optional	complexity
	)

Standard routine for writing an object to file.

Parameters

[in]	load	The supelloadtypemodule::supelloadtype object to write
[in]	io	File unit number to write to
[in]	complexity	If present, the value indicates the amount of print
