Module with subroutines/functions for evaluation of general functions. More...

Functions/Subroutines
subroutine	setpointersforsensors (tArr, sArr, dArr)
	Initialization of private pointers. More...

subroutine	preevaluate (engines, ierr)
	Pre-evaluation of general functions. More...

real(dp) function	evaluate (engine, E1, E0, ierr, argShift)
	Evaluates a general function with optional scaling and offset. More...

recursive real(dp) function	enginevalue (engine, ierr, xArg, xShift)
	Evaluates a general function. More...

recursive real(dp) function	enginerate (engine, ierr, xArg)
	Evaluates the derivative of a general function. More...

recursive real(dp) function, private	sensorrate (sensor, ierr)
	Evaluates the derivative of a sensor value. More...

subroutine	sensorgradient (engine, sGrad, ierr)
	Calculates gradient of a control input w.r.t. displacement DOFs. More...

recursive subroutine, private	evalargs (args, nArg, iDer, xArg, x, rVal, ierr)
	Evaluates the argument(s) of a general function. More...

recursive subroutine, private	updatesensor (sensor, ierr)
	Updates a sensor value depending on the sensor type. More...

recursive subroutine	updatespringbase (spr, ierr)
	Updates the spring variables. More...

recursive subroutine	updatedamperbase (dmp, ierr)
	Updates the damper variables. More...

subroutine	updateenginesforsave (engines, eFlag, ierr)
	Update all general function objects and store the values for saving. More...

subroutine	printfuncvalues (istep, time, engines, lpu)
	Updates and prints out the current value of all general functions. More...

Variables
type(environmenttype), pointer, save, public	ourenvir => null()
	Public pointer to the environmental data member in the mechanismtypemodule::mechanismtype object. More...

type(triadtype), dimension(:), pointer, save, private	triads => null()
	Private pointer to the corresponding member array in the mechanismtypemodule::mechanismtype object. More...

type(springbasetype), dimension(:), pointer, save, private	springs => null()
	Private pointer to the corresponding member array in the mechanismtypemodule::mechanismtype object. More...

type(damperbasetype), dimension(:), pointer, save, private	dampers => null()
	Private pointer to the corresponding member array in the mechanismtypemodule::mechanismtype object. More...

logical, save	ispredictorstep = .false.
	Flag used for consistent right-hand-side calculation in the predictor step. More...

Detailed Description

Module with subroutines/functions for evaluation of general functions.

This module contains functions and subroutines for evaluating general functions, which are represented by functiontypemodule::enginetype objects in the model.

Note: The enginevalue() function may be implicitly recursive if a sensortypemodule::sensortype object defining an argument of the general function is defined on a quantity which again may be controlled by another general function. Currently, this applies to sensors on spring- and damper quantities. Due to this, the update subroutines for springs and dampers as well as sensors have all to be within this module, in order to avoid circular use inclusions. No other (non-recursive) subroutines that work on functiontypemodule::enginetype objects should be placed in this module.

Function/Subroutine Documentation

◆ enginerate()

recursive real(dp) function engineroutinesmodule::enginerate	(	type(enginetype), intent(in)	engine,
		integer, intent(inout)	ierr,
		real(dp), intent(in), optional	xArg
	)

Evaluates the derivative of a general function.

Parameters

[in]	engine	The general function to evaluate the derivative of
	ierr	Error flag
[in]	xArg	Optional function argument value

The time-derivative of the function will be calculated, unless the function argument value xArg is provided. In that case, the derivative w.r.t. that variable is calculated instead.

Author: Trond Arne Svidal

Date: 13 May 2002

Author: Knut Morten Okstad

Date: 17 Nov 2014

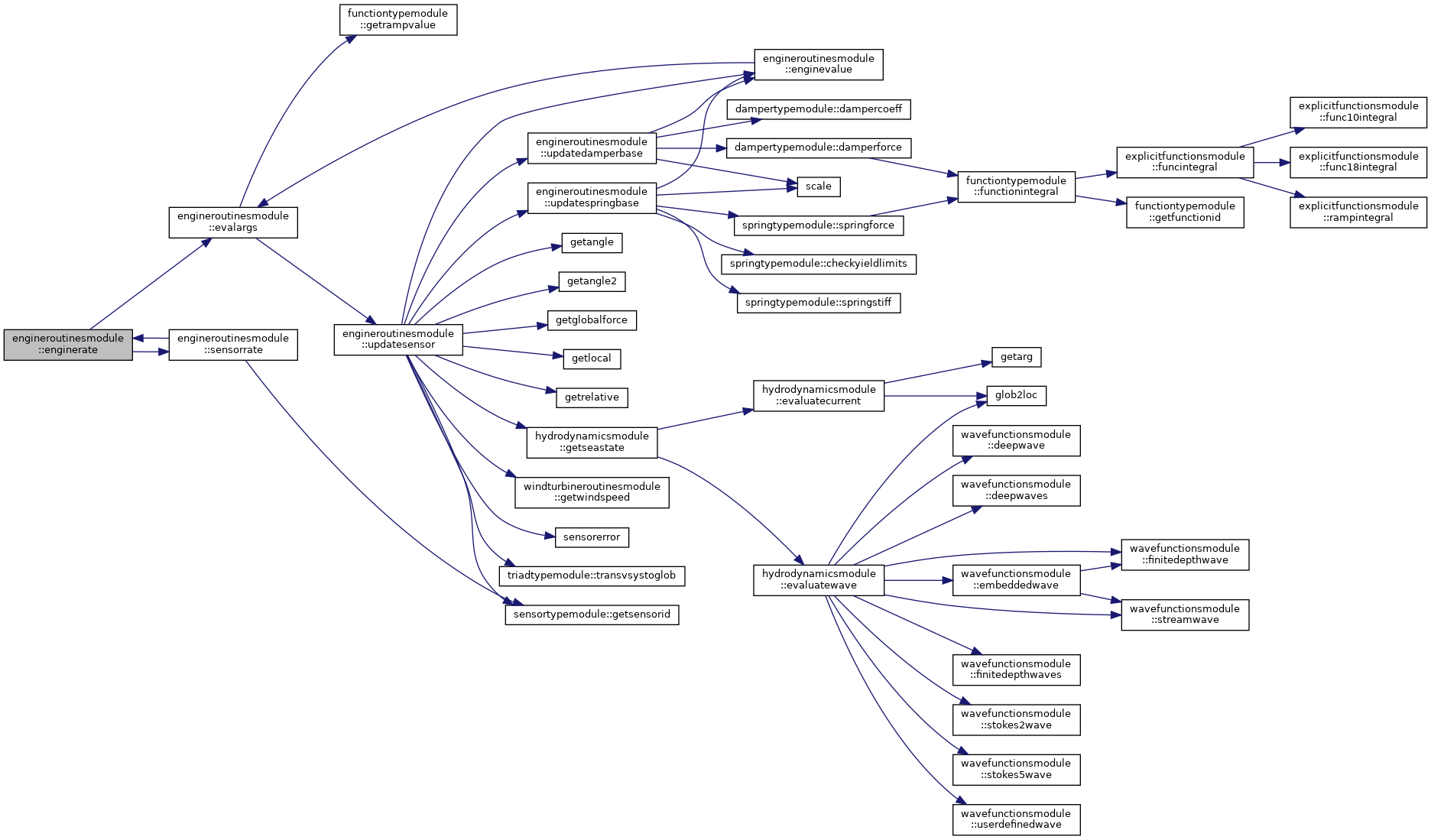

Here is the call graph for this function:

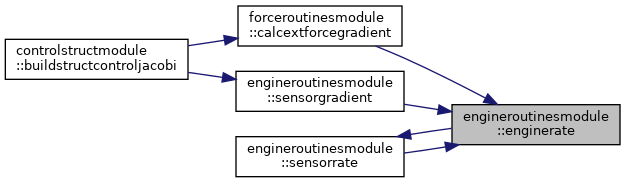

Here is the caller graph for this function:

◆ enginevalue()

recursive real(dp) function engineroutinesmodule::enginevalue	(	type(enginetype), intent(in)	engine,
		integer, intent(inout)	ierr,
		real(dp), intent(in), optional	xArg,
		real(dp), intent(in), optional	xShift
	)

Evaluates a general function.

Parameters

[in]	engine	The general function to evaluate
	ierr	Error flag
[in]	xArg	Optional function argument value
[in]	xShift	Optional function argument shift

EngineValue = func(x), if func is defined for engine
EngineValue = x, if func is not defined for engine

where x may either be the input xArg or sensor-defined. If xShift is specified, that value is subtracted from x before the function is evaluated.

Note: This may be an implicit recursive function through the call sequence:
-> evalargs -> updatesensor -> updatespringbase -> enginevalue

updatedamperbase

Author: Karl Erik Thoresen / Bjorn Haugen / Knut Morten Okstad

Date: 6 Jun 2002

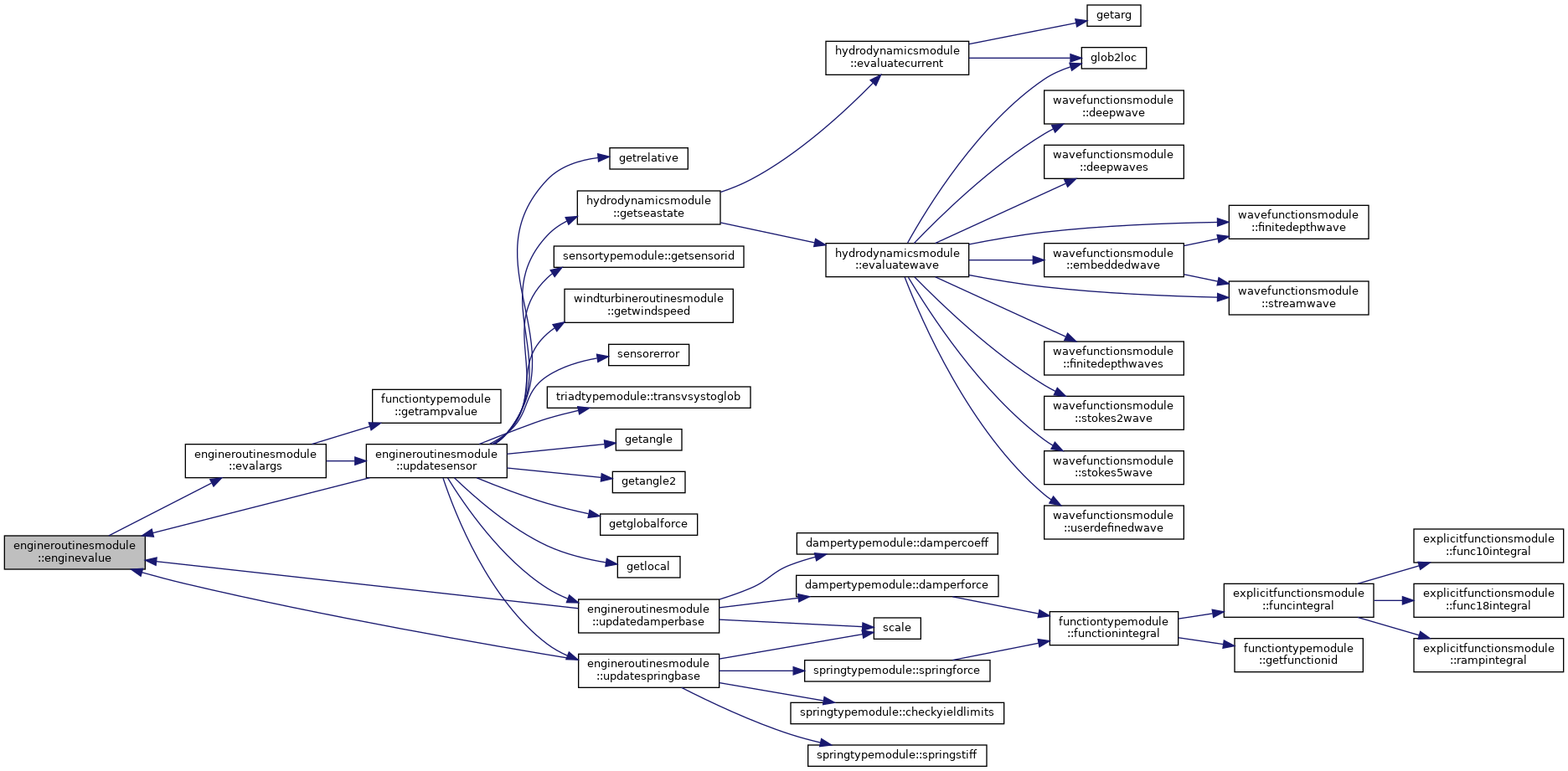

Here is the call graph for this function:

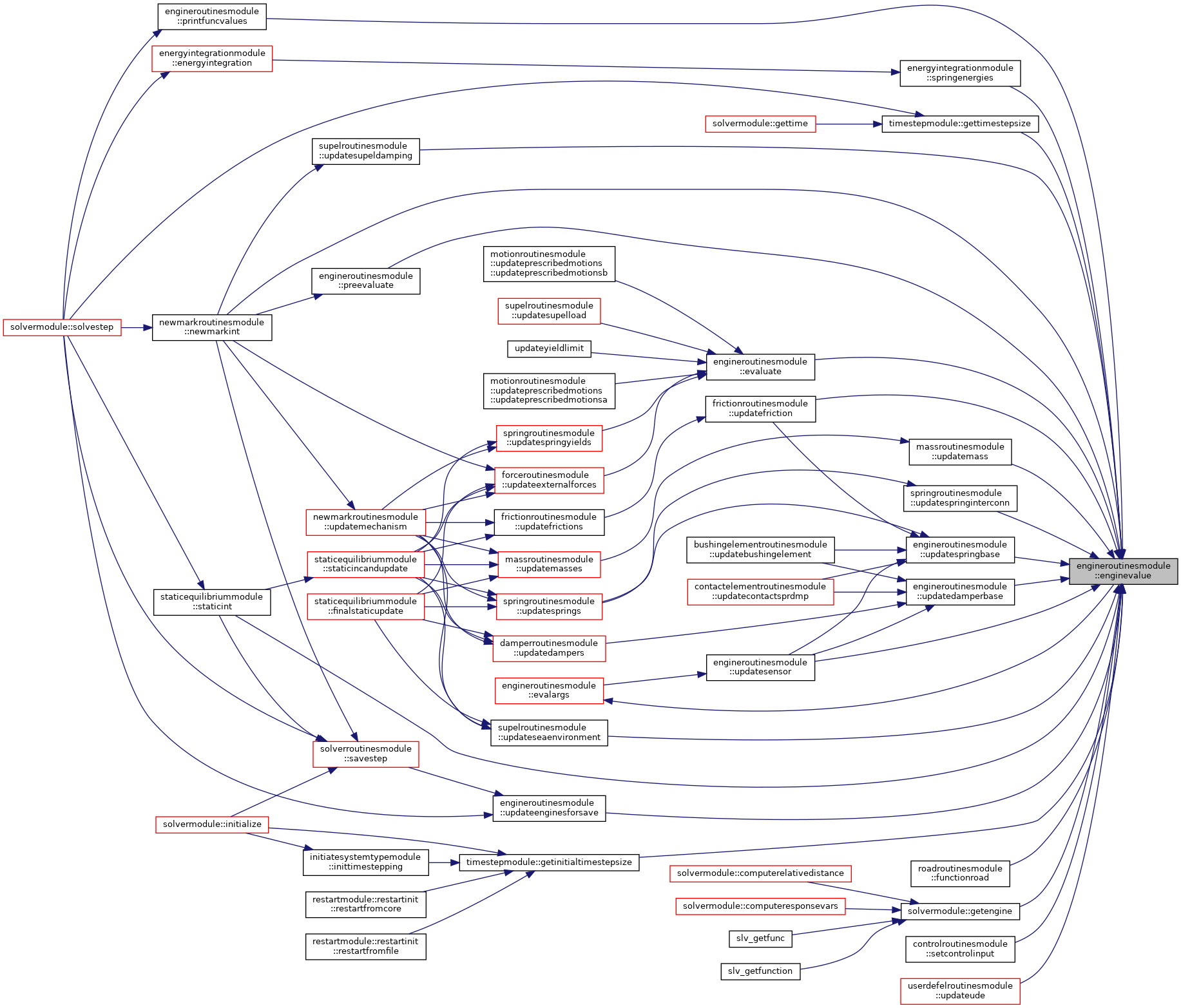

Here is the caller graph for this function:

◆ evalargs()

recursive subroutine, private engineroutinesmodule::evalargs	(	type(sensorptrtype), dimension(:), intent(inout)	args,
		integer, intent(in)	nArg,
		integer, intent(in)	iDer,
		real(dp), intent(in), optional	xArg,
		real(dp), dimension(:), intent(out)	x,
		real(dp), intent(out)	rVal,
		integer, intent(inout)	ierr
	)

private

Evaluates the argument(s) of a general function.

Parameters

	args	The function arguments to evaluate
[in]	nArg	Length of array args
[in]	iDer	Derivative order of ramp function (0, 1, or -1 for no ramp)
[in]	xArg	Optional value of (first) function argument
[out]	x	The evaluated argument value(s)
[out]	rVal	Ramp function value or derivative (equals 1.0 if no ramp)
	ierr	Error flag

The output value x may either be the input argument xArg or a sensor-defined value. If a ramp function is defined and the argument type is TIME, the argument value x is instead set to the end time of the ramp function, and the ramp function value is returned through rVal.

Note: This may be an implicit recursive subroutine through the call sequence:
-> updatesensor -> updatespringbase -> enginevalue -> evalargs

-> updatedamperbase enginerate /

Author: Knut Morten Okstad

Date: 22 Aug 2022

Here is the call graph for this function:

Here is the caller graph for this function:

◆ evaluate()

real(dp) function engineroutinesmodule::evaluate	(	type(enginetype), pointer	engine,
		real(dp), intent(in)	E1,
		real(dp), intent(in)	E0,
		integer, intent(inout)	ierr,
		real(dp), intent(in), optional	argShift
	)

Evaluates a general function with optional scaling and offset.

Parameters

	engine	Points to the general function to evaluate
[in]	E1	Scaling factor
[in]	E0	Offset value
	ierr	Error flag
[in]	argShift	Optional function argument shift

eVal = E0 + E1*func(x), if func is defined for engine
eVal = E0 + E1*x, if func is not defined for engine

where x is the optionally shifted sensor-defined argument value.

Author: Karl Erik Thoresen / Bjorn Haugen / Knut Morten Okstad

Date: 6 Jun 2002

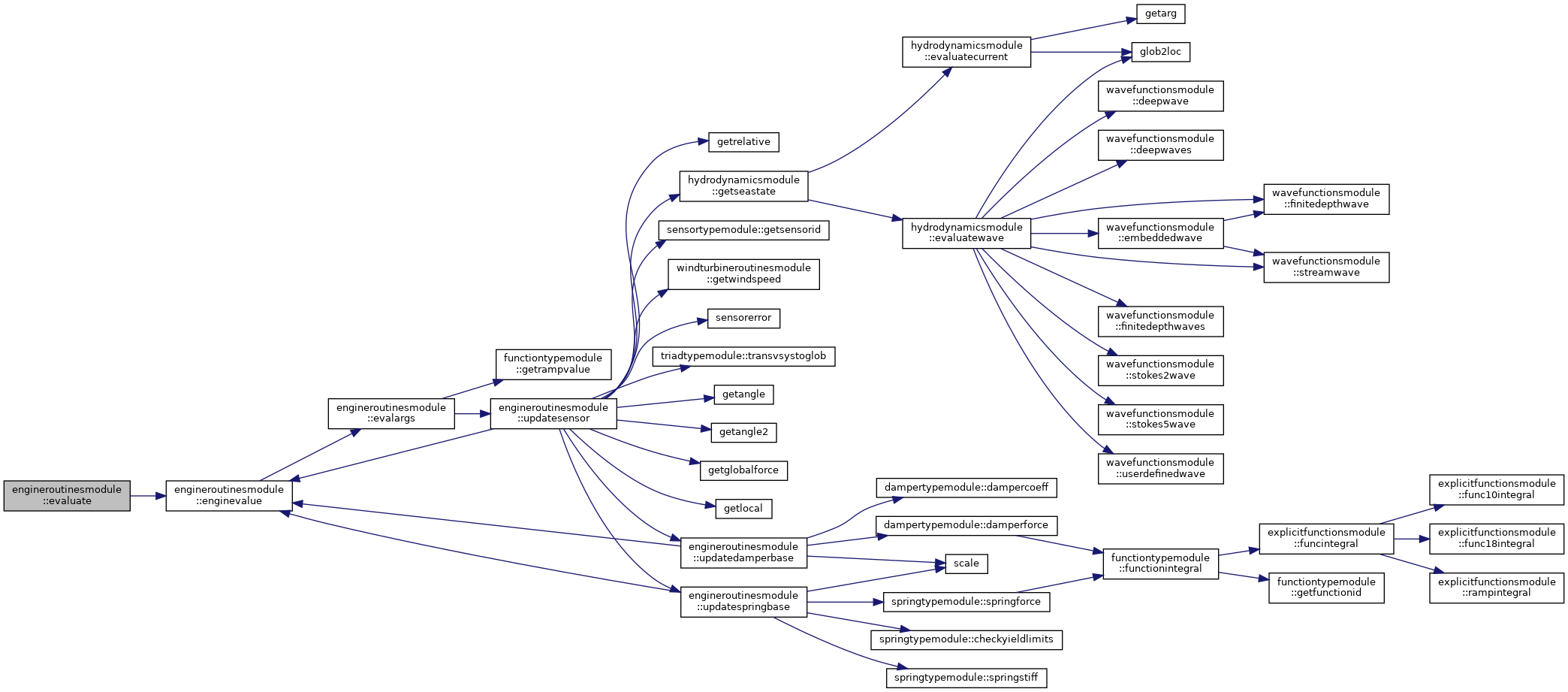

Here is the call graph for this function:

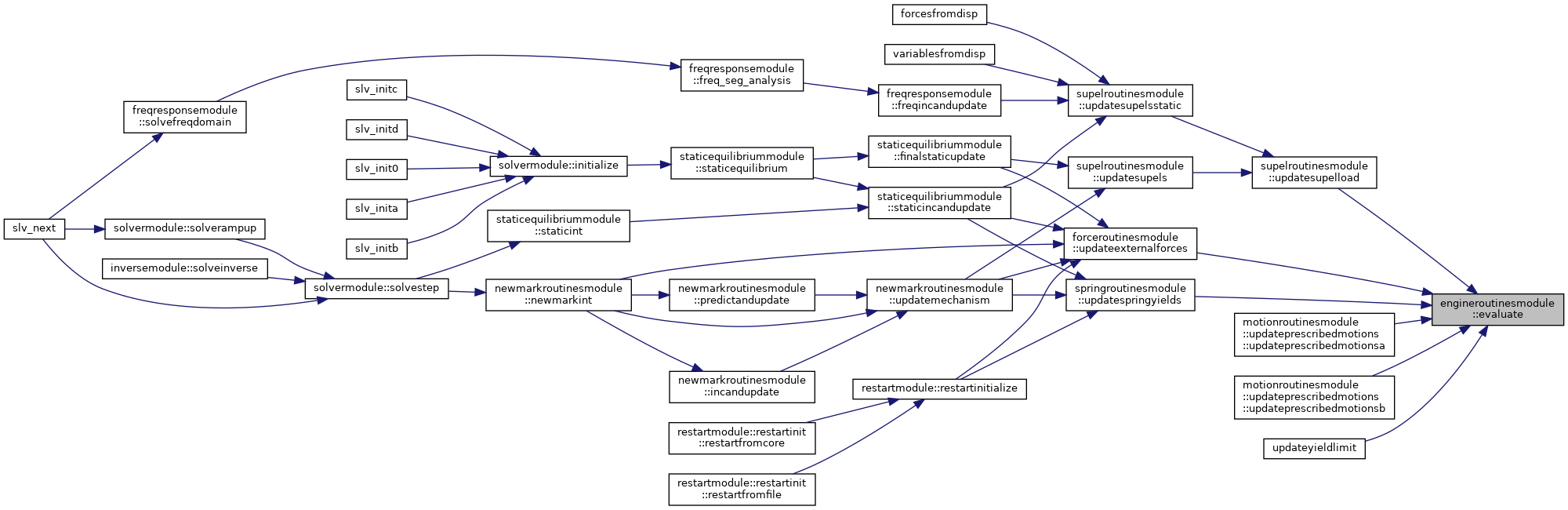

Here is the caller graph for this function:

◆ preevaluate()

subroutine engineroutinesmodule::preevaluate	(	type(enginetype), dimension(:), intent(in)	engines,
		integer, intent(inout)	ierr
	)

Pre-evaluation of general functions.

Parameters

[in]	engines	All general functions in the model
	ierr	Error flag

This subroutine pre-evaluates all functiontypemodule::enginetype objects that have been flagged for it. It is used in the case that the order of evaluation matters, in particular for user-defined functions.

Author: Knut Morten Okstad

Date: 6 Feb 2015

Here is the call graph for this function:

Here is the caller graph for this function:

◆ printfuncvalues()

subroutine engineroutinesmodule::printfuncvalues	(	integer, intent(in)	istep,
		real(dp), intent(in)	time,
		type(enginetype), dimension(:), intent(inout)	engines,
		integer, intent(in)	lpu
	)

Updates and prints out the current value of all general functions.

Parameters

[in]	istep	Time increment counter
[in]	time	Current time
	engines	All general functions in the model
[in]	lpu	File unit number for res-file output

Author: Knut Morten Okstad

Date: 12 Jun 2023

Here is the call graph for this function:

Here is the caller graph for this function:

◆ sensorgradient()

subroutine engineroutinesmodule::sensorgradient	(	type(enginetype), intent(in)	engine,
		real(dp), dimension(:), intent(out)	sGrad,
		integer, intent(out)	ierr
	)

Calculates gradient of a control input w.r.t. displacement DOFs.

Parameters

[in]	engine	The general function defining the control input element
[out]	sGrad	The calculated gradient w.r.t. displacement DOFs
[out]	ierr	Error flag

Author: Bjorn Haugen

Date: 28 Jun 2009

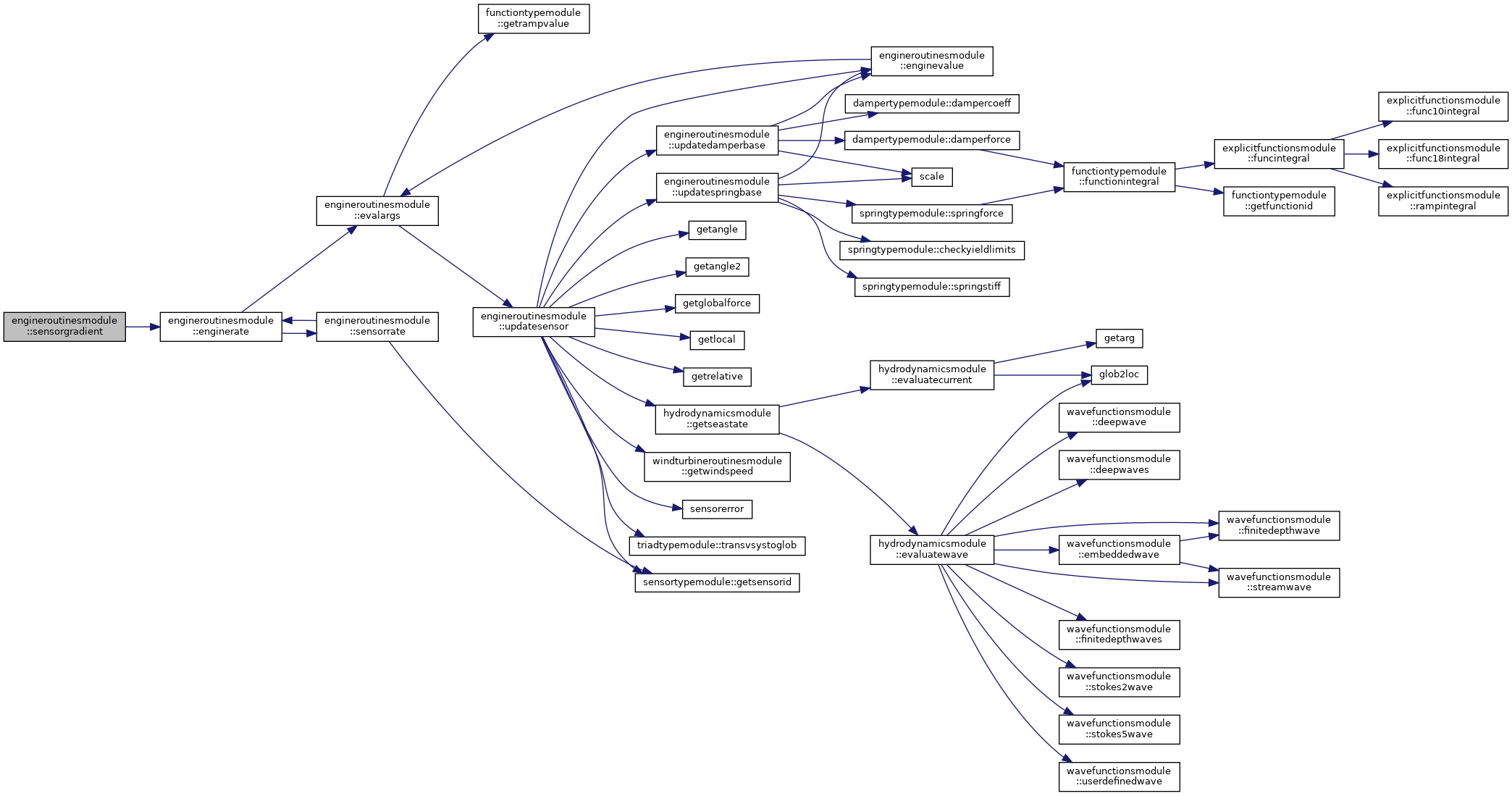

Here is the call graph for this function:

Here is the caller graph for this function:

◆ sensorrate()

recursive real(dp) function, private engineroutinesmodule::sensorrate	(	type(sensorptrtype), intent(in)	sensor,
		integer, intent(inout)	ierr
	)

private

Evaluates the derivative of a sensor value.

Parameters

[in]	sensor	The sensor object to evaluate the derivative for
	ierr	Error flag

The time-derivative of the sensor will be calculated, unless the sensor measures a control variable. In that case, the derivative w.r.t. that variable is calculated, which always will equal one.

Author: Knut Morten Okstad

Date: 17 Nov 2014

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setpointersforsensors()

subroutine engineroutinesmodule::setpointersforsensors	(	type(triadtype), dimension(:), intent(in), target	tArr,
		type(springbasetype), dimension(:), intent(in), target	sArr,
		type(damperbasetype), dimension(:), intent(in), target	dArr
	)

Initialization of private pointers.

Parameters

[in]	tArr	All triadtypemodule::triadtype objects in the model
[in]	sArr	All springtypemodule::springbasetype objects in the model
[in]	dArr	All dampertypemodule::damperbasetype objects in the model

This subroutine sets the private pointers of this module to point to the arrays provided as arguments (which should be those within the mechanismtypemodule::mechanismtype object). This is to avoid the necessity to transport these arrays through the enginevalue() and evalargs() calls, since they are needed by the subroutine updatesensor() which is invoked from evalargs().

Author: Knut Morten Okstad

Date: 6 Jun 2002

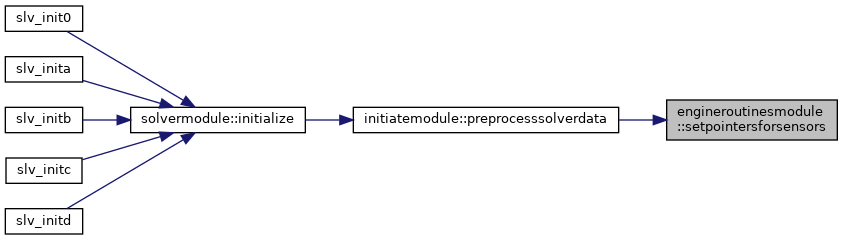

Here is the caller graph for this function:

◆ updatedamperbase()

recursive subroutine engineroutinesmodule::updatedamperbase	(	type(damperbasetype), intent(inout)	dmp,
		integer, intent(inout)	ierr
	)

Updates the damper variables.

Parameters

dmp	The damper object to update the variables for
ierr	Error flag

Note: This may be an implicit recursive subroutine through the call sequence:
-> enginevalue -> evalargs -> updatesensor -> updatedamperbase

Author: Knut Morten Okstad

Date: 6 Jun 2002

Here is the call graph for this function:

Here is the caller graph for this function:

◆ updateenginesforsave()

subroutine engineroutinesmodule::updateenginesforsave	(	type(enginetype), dimension(:), intent(inout)	engines,
		integer, intent(in)	eFlag,
		integer, intent(out)	ierr
	)

Update all general function objects and store the values for saving.

Parameters

	engines	All general functions in the model
[in]	eFlag	Update the functions whose saveVar equals this value
[out]	ierr	Error flag

Author: Knut Morten Okstad

Date: 20 Jul 2004

Here is the call graph for this function:

Here is the caller graph for this function:

◆ updatesensor()

recursive subroutine, private engineroutinesmodule::updatesensor	(	type(sensorptrtype), intent(inout)	sensor,
		integer, intent(inout)	ierr
	)

private

Updates a sensor value depending on the sensor type.

Parameters

sensor	The sensor object to update the value for
ierr	Error flag

For many sensor types the actual sensor value is a pointer directly into the object it is evaluating, and this subroutine does nothing for such sensors.

Note: For some sensors of non-trivial type, this may be an implicit recursive subroutine through the call sequences:
-> enginevalue --------------------\

-> updatespringbase -> enginevalue -> evalargs -> updatesensor

-> updatedamperbase /

Author: Knut Morten Okstad

Date: 6 Jun 2002

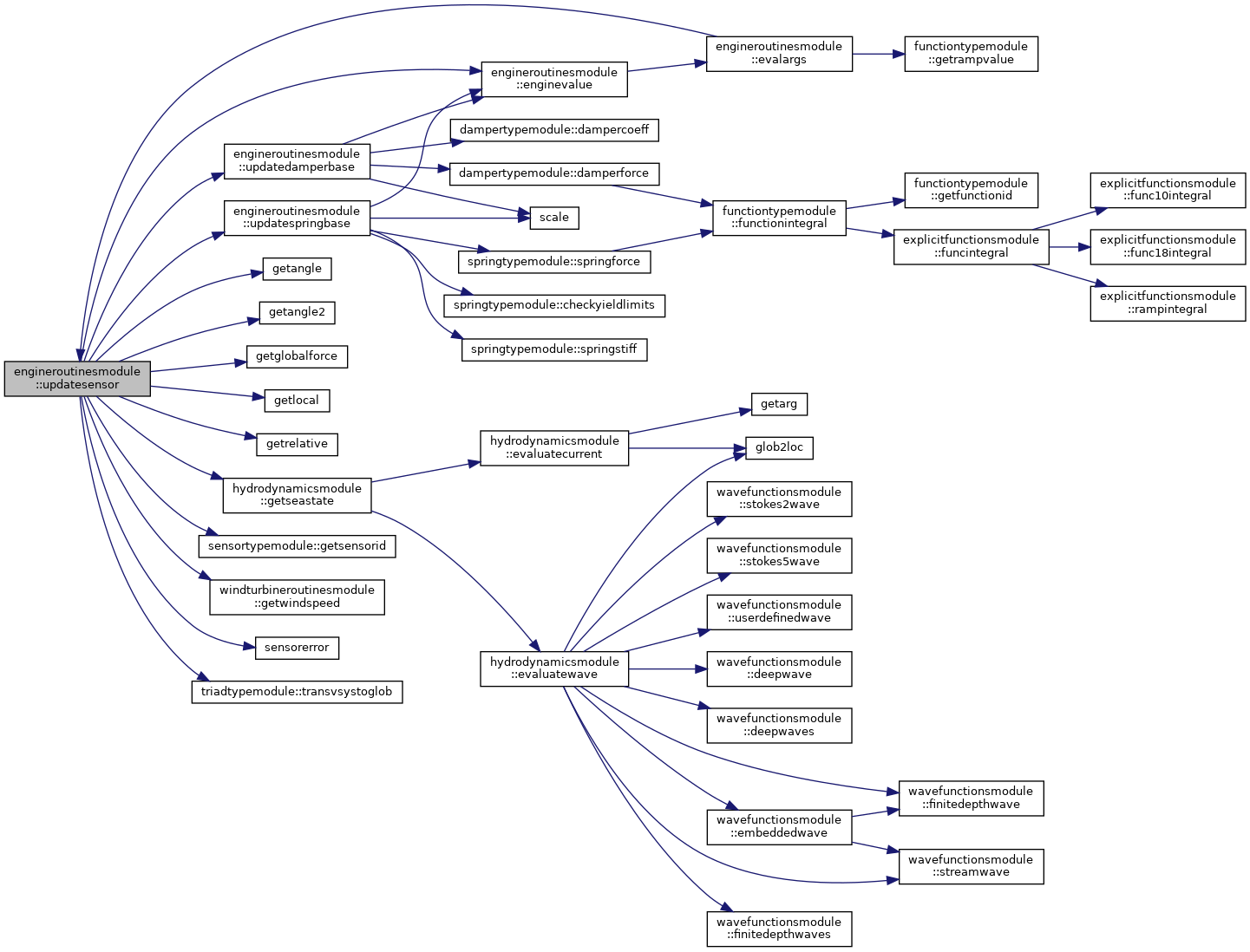

Here is the call graph for this function:

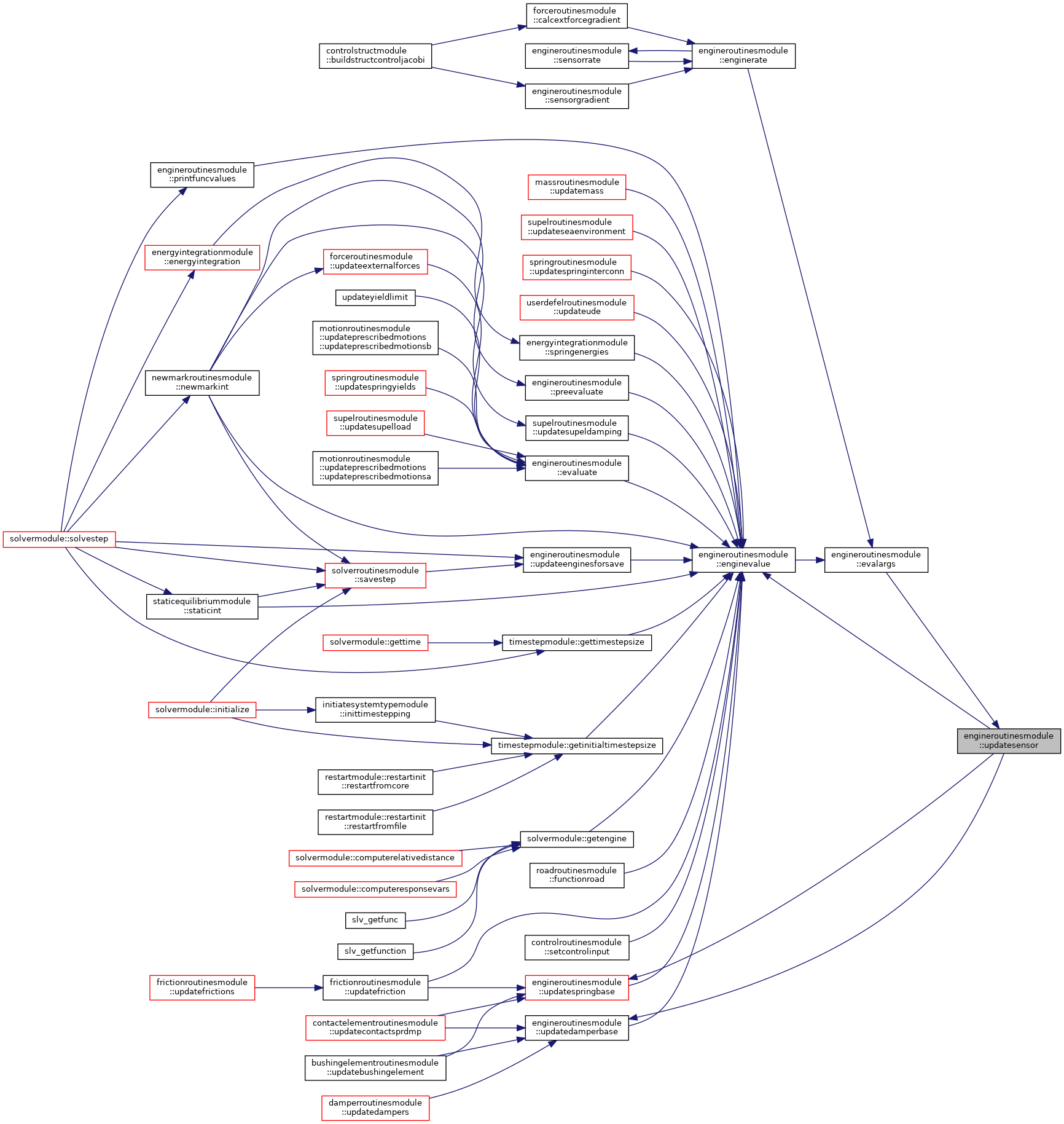

Here is the caller graph for this function:

◆ updatespringbase()

recursive subroutine engineroutinesmodule::updatespringbase	(	type(springbasetype), intent(inout)	spr,
		integer, intent(inout)	ierr
	)

Updates the spring variables.

Parameters

spr	The spring object to update the variables for
ierr	Error flag

Note: This may be an implicit recursive subroutine through the call sequence:
-> enginevalue -> evalargs -> updatesensor -> updatespringbase

Author: Knut Morten Okstad

Date: 6 Jun 2002

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

◆ dampers

type(damperbasetype), dimension(:), pointer, save, private engineroutinesmodule::dampers => null()

private

Private pointer to the corresponding member array in the mechanismtypemodule::mechanismtype object.

◆ ispredictorstep

logical, save engineroutinesmodule::ispredictorstep = .false.

Flag used for consistent right-hand-side calculation in the predictor step.

Equals .true. in first iteration

◆ ourenvir

type(environmenttype), pointer, save, public engineroutinesmodule::ourenvir => null()

Public pointer to the environmental data member in the mechanismtypemodule::mechanismtype object.

◆ springs

type(springbasetype), dimension(:), pointer, save, private engineroutinesmodule::springs => null()

private

Private pointer to the corresponding member array in the mechanismtypemodule::mechanismtype object.

◆ triads

type(triadtype), dimension(:), pointer, save, private engineroutinesmodule::triads => null()

private

Private pointer to the corresponding member array in the mechanismtypemodule::mechanismtype object.

Functions/Subroutines

Variables

Detailed Description

Function/Subroutine Documentation

◆ enginerate()

◆ enginevalue()

◆ evalargs()

◆ evaluate()

◆ preevaluate()

◆ printfuncvalues()

◆ sensorgradient()

◆ sensorrate()

◆ setpointersforsensors()

◆ updatedamperbase()

◆ updateenginesforsave()

◆ updatesensor()

◆ updatespringbase()

Variable Documentation

◆ dampers

◆ ispredictorstep

◆ ourenvir

◆ springs

◆ triads
