frictiontypemodule Module Reference

Module with data types joint DOF friction objects. More...

Data Types
type	frictionparametertype
	Data type representing a set of friction parameters. More...
type	frictiontype
	Data type representing a joint DOF friction. More...
type	frictionptrtype
	Data type representing a friction object pointer. More...
interface	getptrtoid
	Returns pointer to object with specified ID. More...
interface	writeobject
	Standard routine for writing an object to file. More...
interface	updateatconvergence
	Updates the state variables pertaining to previous time step. More...
interface	restorefromlaststep
	Restores the state variables from the last converged time step. More...

Functions/Subroutines
type(frictionparametertype) function, pointer	getptrtoidfrictionparametertype (array, id)
	Returns pointer to friction parameters object with specified id. More...
subroutine	writefrictiontype (friction, io, complexity)
	Standard routine for writing an object to io. More...
subroutine	writefrictionparametertype (fricData, io)
	Standard routine for writing an object to io. More...
subroutine	nullifyfriction (friction)
	Initializes a friction object. More...
subroutine	deallocatefrictionprms (frictions)
	Deallocates an array of friction parameters objects. More...
subroutine	initializefriction (friction, frictionSets, frictionId, saveVar, err)
	Allocates and initializes a friction object. More...
subroutine	updatefrictionatstart (friction)
	Initializes internal friction variables at the start of simulation. More...
subroutine	updatefrictionatconvergence (friction)
	Updates a friction object after convergence has been achieved. More...
subroutine	restorefrictionfromlaststep (friction)
	Restores a friction object from the last converged step. More...

Variables
character(len=14), dimension(6), parameter	frictype_p = (/ 'ROT_FRICTION ', 'TRANS_FRICTION', 'CAM_FRICTION ', 'BALL_FRICTION ', 'BALL_FRICTION2', 'GENERIC_ENGINE' /)
	Friction type names. More...
real(dp), save	fricforcetol = 0.0_dp
	Zero tolerance for friction forces. More...

Detailed Description

Module with data types joint DOF friction objects.

The module also contains subroutines for accessing the frictions.

Function/Subroutine Documentation

deallocatefrictionprms()

subroutine frictiontypemodule::deallocatefrictionprms

(

type(frictionparametertype), dimension(:), pointer

frictions

)

Deallocates an array of friction parameters objects.

Parameters

frictions

The frictiontypemodule::frictionparametertype objects to deallocate

Author

Knut Morten Okstad

Date

23 Jan 2017

getptrtoidfrictionparametertype()

type(frictionparametertype) function, pointer frictiontypemodule::getptrtoidfrictionparametertype	(	type(frictionparametertype), dimension(:), intent(in), target	array,
		integer, intent(in)	id
	)

Returns pointer to friction parameters object with specified id.

Parameters

[in]	array	Array of frictiontypemodule::frictionparametertype objects to search within
[in]	id	Base ID of the object to search for

If the friction parameters object is not found, NULL is returned.

Author

Bjorn Haugen

Date

1 Nov 1999

initializefriction()

subroutine frictiontypemodule::initializefriction	(	type(frictiontype), pointer	friction,
		type(frictionparametertype), dimension(:), intent(in)	frictionSets,
		integer, intent(in)	frictionId,
		integer, dimension(:), intent(in)	saveVar,
		integer, intent(out)	err
	)

Allocates and initializes a friction object.

Parameters

[out]	friction	The frictiontypemodule::frictionparameterttype object to allocate/initialize
[in]	frictionSets	All friction parameters objects in the model
[in]	frictionId	Base id of the friction parameters object to use
[in]	saveVar	Flags indicating which variables should be saved
[out]	err	Error flag

Author

Knut Morten Okstad

Date

28 Aug 2002

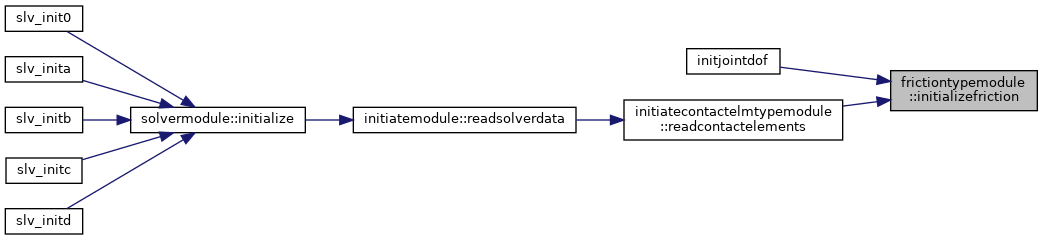

Here is the caller graph for this function:

nullifyfriction()

subroutine frictiontypemodule::nullifyfriction

(

type(frictiontype), intent(out)

friction

)

Initializes a friction object.

Parameters

[out]

friction

The frictiontypemodule::frictionttype object to initialize

Author

Knut Morten Okstad

Date

16 Jun 2006

restorefrictionfromlaststep()

subroutine frictiontypemodule::restorefrictionfromlaststep

(

type(frictiontype), intent(inout)

friction

)

Restores a friction object from the last converged step.

Parameters

friction

The friction object to restore

Author

Knut Morten Okstad

Date

2 Nov 2008

updatefrictionatconvergence()

subroutine frictiontypemodule::updatefrictionatconvergence

(

type(frictiontype), intent(inout)

friction

)

Updates a friction object after convergence has been achieved.

Parameters

friction

The friction object to update

Author

Knut Morten Okstad

Date

3 Oct 2005

updatefrictionatstart()

subroutine frictiontypemodule::updatefrictionatstart

(

type(frictiontype), intent(inout)

friction

)

Initializes internal friction variables at the start of simulation.

Parameters

friction

The friction object to initialize internal variables for

Author

Knut Morten Okstad

Date

24 Oct 2005

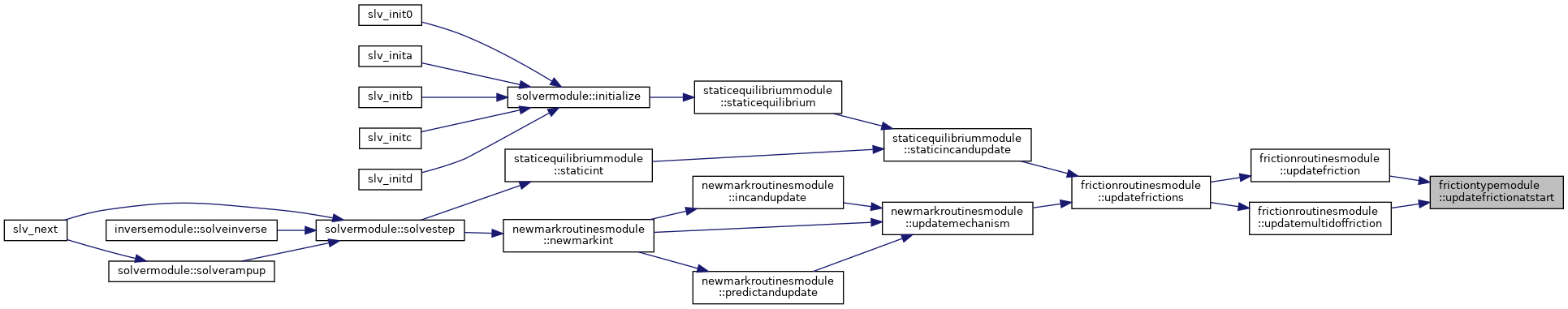

Here is the caller graph for this function:

writefrictionparametertype()

subroutine frictiontypemodule::writefrictionparametertype	(	type(frictionparametertype), intent(in)	fricData,
		integer, intent(in)	io
	)

Standard routine for writing an object to io.

Parameters

[in]	fricData	The frictiontypemodule::frictionparametertype object to write
[in]	io	File unit number to write to

Author

Bjorn Haugen

Date

Sep 1999

writefrictiontype()

subroutine frictiontypemodule::writefrictiontype	(	type(frictiontype), intent(in)	friction,
		integer, intent(in)	io,
		integer, intent(in), optional	complexity
	)

Standard routine for writing an object to io.

Parameters

[in]	friction	The frictiontypemodule::frictiontype object to write
[in]	io	File unit number to write to
[in]	complexity	If present, the value indicates the amount of print

Author

Bjorn Haugen

Date

Sep 1999

Variable Documentation

fricforcetol

real(dp), save frictiontypemodule::fricforcetol = 0.0_dp

Zero tolerance for friction forces.

frictype_p

character(len=14), dimension(6), parameter frictiontypemodule::frictype_p = (/ 'ROT_FRICTION ', 'TRANS_FRICTION', 'CAM_FRICTION ', 'BALL_FRICTION ', 'BALL_FRICTION2', 'GENERIC_ENGINE' /)

Friction type names.
