initiatemodule Module Reference

Initialization of model data from the FEDEM solver input file. More...

Functions/Subroutines
subroutine	readsolverdata (chfsi, sys, ctrl, mech, modelFileName, doEnergyInt, err)
	Administers reading of model data from the FEDEM solver input file. More...
subroutine	preprocesssolverdata (sam, sys, ctrl, modes, mech, ipsw, err)
	Administers preprocessing of model data for the dynamics solver. More...

Detailed Description

Initialization of model data from the FEDEM solver input file.

Function/Subroutine Documentation

preprocesssolverdata()

subroutine initiatemodule::preprocesssolverdata	(	type(samtype), intent(out)	sam,
		type(systemtype), intent(inout)	sys,
		type(controltype), intent(in)	ctrl,
		type(modestype), intent(out)	modes,
		type(mechanismtype), intent(inout)	mech,
		integer, intent(in)	ipsw,
		integer, intent(out)	err
	)

Administers preprocessing of model data for the dynamics solver.

Parameters

[out]	sam	Data for managing system matrix assembly
	sys	System level model data
[in]	ctrl	Control system data
[out]	modes	Data for eigenmodes
	mech	Mechanism components of the model
[in]	ipsw	Print switch; the higher value the more print is produced
[out]	err	Error flag

This subroutine builds up the necessary data structures and resolves cross references, etc., after the solver input file has been read.

Author

Knut Morten Okstad

Date

28 May 2002

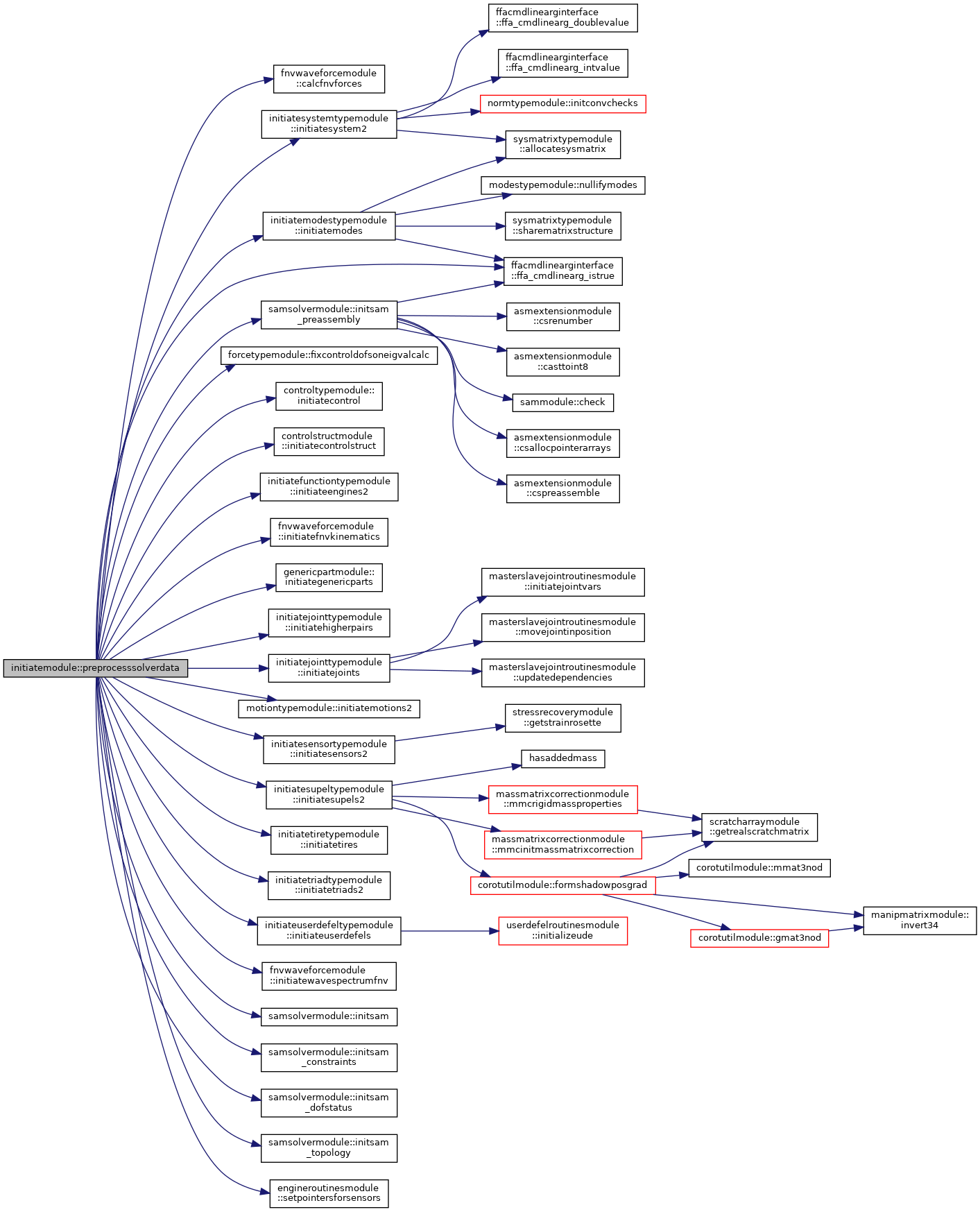

Here is the call graph for this function:

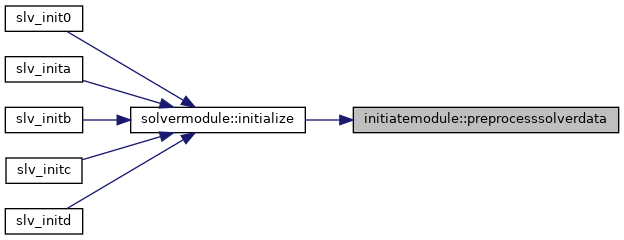

Here is the caller graph for this function:

readsolverdata()

subroutine initiatemodule::readsolverdata	(	character(len=*), intent(in), optional	chfsi,
		type(systemtype), intent(out)	sys,
		type(controltype), intent(out)	ctrl,
		type(mechanismtype), intent(out)	mech,
		character(len=*), intent(out)	modelFileName,
		logical, intent(out)	doEnergyInt,
		integer, intent(out)	err
	)

Administers reading of model data from the FEDEM solver input file.

Parameters

[in]	chfsi	Text string containing the entire solver model
[out]	sys	System level model data
[out]	ctrl	Control system data
[out]	mech	Mechanism components of the model
[out]	modelFileName	Name of the FEDEM model file
[out]	doEnergyInt	If .true., energy integration is requested
[out]	err	Error flag

This subroutine parses the FEDEM solver input file and initializes all solver objects based on it. The name of the solver input file is obtained from the command-line argument -fsifile (and -fsi2file). Alternatively, the model can be initialized by passing the entire input file content through the input variable cfsi.

Author

Knut Morten Okstad

Date

28 May 2002

Here is the call graph for this function:

Here is the caller graph for this function:
