initiatespringtypemodule Module Reference

Initialization of spring objects from the solver input file. More...

Functions/Subroutines
subroutine	initiatespringfailures (infp, springFailures, err)
	Initializes spring failure objects with data from the input file. More...
subroutine	initiatespringyields (infp, engines, springYields, err)
	Initializes spring yield objects with data from the input file. More...
subroutine	initiatesprings (infp, triads, baseSprings, springs, err)
	Initializes spring elements with data from the solver input file. More...
subroutine	initiatebasesprings (infp, engines, functions, springFailures, springYields, springs, err)
	Initializes spring base objects with data from the input file. More...
subroutine	checkspringconnections (springs, stat)
	Deactivates all base springs that are not referred, for consistency. More...

Detailed Description

Initialization of spring objects from the solver input file.

Function/Subroutine Documentation

checkspringconnections()

subroutine initiatespringtypemodule::checkspringconnections	(	type(springbasetype), dimension(:), intent(inout)	springs,
		integer, intent(out)	stat
	)

Deactivates all base springs that are not referred, for consistency.

Parameters

	springs	Array of all spring base objects in the model
[out]	stat	Number of spring base objects that are deactivated

Author

Knut Morten Okstad

Date

5 Jul 2004

Here is the caller graph for this function:

initiatebasesprings()

subroutine initiatespringtypemodule::initiatebasesprings	(	integer, intent(in)	infp,
		type(enginetype), dimension(:), intent(in)	engines,
		type(functiontype), dimension(:), intent(in)	functions,
		type(springfailuretype), dimension(:), intent(in)	springFailures,
		type(springyieldtype), dimension(:), intent(in)	springYields,
		type(springbasetype), dimension(:), pointer	springs,
		integer, intent(out)	err
	)

Initializes spring base objects with data from the input file.

Parameters

[in]	infp	File unit number for the solver input file
[in]	engines	Array of all engines in the model
[in]	functions	Array of all functions in the model
[in]	springFailures	Array of all spring failure objects in the model
[in]	springYields	Array of all spring yield objects in the model
[out]	springs	Array of all spring base objects in the model
[out]	err	Error flag

Author

Bjorn Haugen

Date

Apr 2002

Author

Knut Morten Okstad

Date

1 Jul 2002

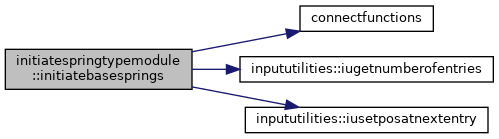

Here is the call graph for this function:

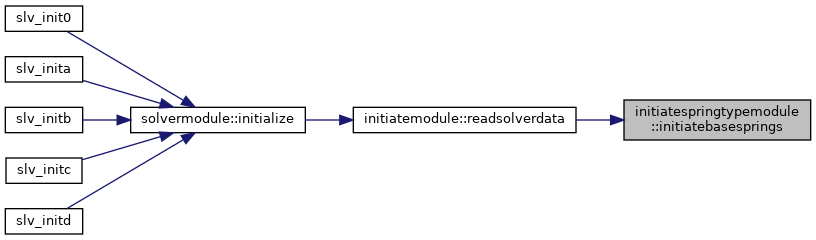

Here is the caller graph for this function:

initiatespringfailures()

subroutine initiatespringtypemodule::initiatespringfailures	(	integer, intent(in)	infp,
		type(springfailuretype), dimension(:), pointer	springFailures,
		integer, intent(out)	err
	)

Initializes spring failure objects with data from the input file.

Parameters

[in]	infp	File unit number for the solver input file
[out]	springFailures	Array of all spring failure objects in the model
[out]	err	Error flag

Author

Bjorn Haugen

Date

Apr 2005

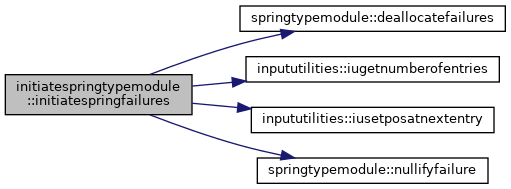

Here is the call graph for this function:

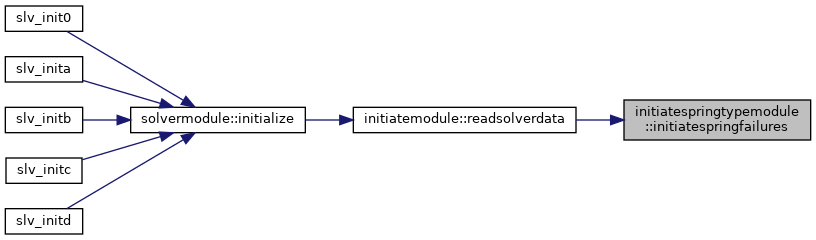

Here is the caller graph for this function:

initiatesprings()

subroutine initiatespringtypemodule::initiatesprings	(	integer, intent(in)	infp,
		type(triadtype), dimension(:), intent(in)	triads,
		type(springbasetype), dimension(:), intent(in)	baseSprings,
		type(springtype), dimension(:), pointer	springs,
		integer, intent(out)	err
	)

Initializes spring elements with data from the solver input file.

Parameters

[in]	infp	File unit number for the solver input file
[in]	triads	Array of all triads in the model
[in]	baseSprings	Array of all spring base objects in the model
[out]	springs	Array of all spring elements in the model
[out]	err	Error flag

Author

Karl Erik Thoresen and Bjorn Haugen

Date

Nov 1998

Author

Knut Morten Okstad

Date

Jul 2002

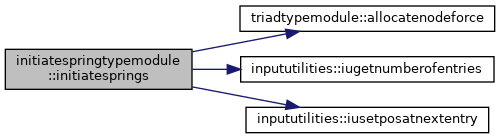

Here is the call graph for this function:

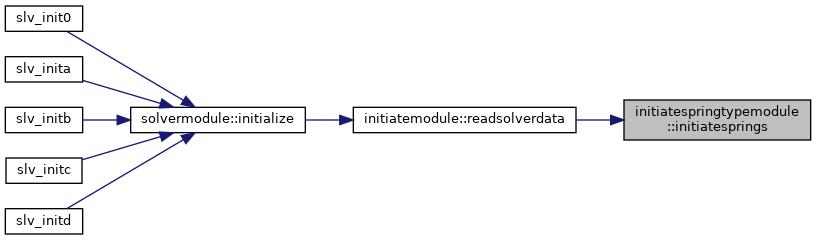

Here is the caller graph for this function:

initiatespringyields()

subroutine initiatespringtypemodule::initiatespringyields	(	integer, intent(in)	infp,
		type(enginetype), dimension(:), target	engines,
		type(springyieldtype), dimension(:), pointer	springYields,
		integer, intent(out)	err
	)

Initializes spring yield objects with data from the input file.

Parameters

[in]	infp	File unit number for the solver input file
[in]	engines	Array of all engines in the model
[out]	springYields	Array of all spring yield objects in the model
[out]	err	Error flag

Author

Bjorn Haugen

Date

Apr 2005

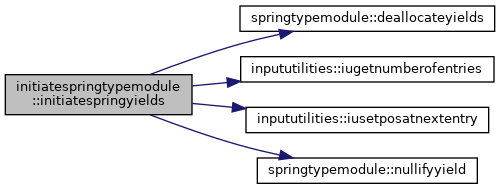

Here is the call graph for this function:

Here is the caller graph for this function:
