Module with subroutines for sea wave evaluation. More...

Data Types
interface	initfunc4
	Initializes parameters of a sea wave function. More...

Functions/Subroutines
subroutine	initfunc4fromfile (FNAME, G, D, RFUNC, IERR, RSEED)
	Initializes wave function parameters from the given file. More...

subroutine	initspectrumof (IOP, H3, T1, Gamma, Omega0, dOmega, g, D, RFUNC, IERR, RSEED)
	Initializes a wave function based on statistical parameters. More...

subroutine	initspectrumdnv (Hs, Tp, Gamma, Omega0, dOmega, g, D, RFUNC, IERR, RSEED, NWdir, SprExp)
	Initializes a wave function based on statistical parameters. More...

real(dp) function, public	wavenumber (omega, g, d)
	Calculates the wave number for finite depth waves. More...

logical function, public	checkdepth (d, k)
	Checks that the finite water depth does not cause cause overflow. More...

subroutine, public	deepwave (RFUNC, g, x, z, t, atSurface, noWheelerStretching, h, u, w, du, dw, p)
	Evaluates the deep water wave profile. More...

subroutine, public	deepwaves (RFUNC, g, x, y, z, t, atSurface, noWheelerStretching, h, u, v, w, du, dv, dw, p)
	Evaluates the deep water wave profile. More...

subroutine, public	finitedepthwave (RFUNC, g, d, x, z, t, atSurface, noWheelerStretching, h, u, w, du, dw, p)
	Evaluates the finite depth wave profile. More...

subroutine, public	finitedepthwaves (RFUNC, g, d, x, y, z, t, atSurface, noWheelerStretching, h, u, v, w, du, dv, dw, p)
	Evaluates the finite depth wave profile. More...

subroutine, public	stokes2wave (RFUNC, g, d, x, z, t, atSurface, noWheelerStretching, h, u, w, du, dw)
	Evaluates the wave profile according to 2nd order Stokes theory. More...

subroutine, public	initfunc7 (H, T, eps, g, D, RFUNC, ierr)
	Computes coefficients for 5th order Stokes waves. More...

subroutine, public	stokes5wave (RFUNC, d, x, z, t, atSurface, h, u, w, du, dw)
	Evaluates the wave profile according to 5th order Stokes theory. More...

subroutine, public	initfunc8 (H, T, eps, g, D, RFUNC, iOrder)
	Solves the streamline wave equation. More...

subroutine, public	streamwave (RFUNC, d, x, z, t, atSurface, h, u, w, du, dw)
	Evaluates the nonlinear wave profile according to streamline theory. More...

subroutine, public	initfunc9 (IOP, NR, NC, H3, T1, Gamma, Omega0, dOmega, g, D, ramp, embSLW, IFUNC, RFUNC, IERR, RSEED)
	Initializes an irregular wave function with embedded streamlines. More...

subroutine, public	embeddedwave (IFUNC, RFUNC, g, d, x, z, t, atSurf, noWS, h, u, w, du, dw)
	Evaluates a wave function with embedded nonlinear components. More...

subroutine, public	userdefinedwave (ikf, IFUNC, RFUNC, g, d, Xt, atSurf, h, u, du, ierr)
	Evaluates the user-defined wave profile. More...

Variables
integer, parameter, public	dp = kind(1.0D0)
	8-byte real (double) More...

real(dp), parameter	pi = 3.141592653589793238_dp
	The value of π. More...

real(dp), parameter, public	twopi = pi+pi
	The value of 2π. More...

Detailed Description

Module with subroutines for sea wave evaluation.

This module contains subroutines for initialization of real parameters for the explicit wave function (explicitfunctionsmodule::func4). It also has subroutines for evaluating the wave function at a given point in time and space. The FUNC4 interface of the explicitfunctionsmodule only yields the free surface level at a given time and x = 0, and infinite water depth, whereas the subroutines herein can be used for any value of x and finite depth. Subroutines returning the corresponding velocity and acceleration for any depth z ≤ 0 are provided as well.

Function/Subroutine Documentation

◆ checkdepth()

logical function, public wavefunctionsmodule::checkdepth	(	real(dp), intent(in)	d,
		real(dp), intent(in)	k
	)

Checks that the finite water depth does not cause cause overflow.

Parameters

[in]	d	Water depth
[in]	k	The wave number

Author: Knut Morten Okstad

Date: 25 Jan 2013

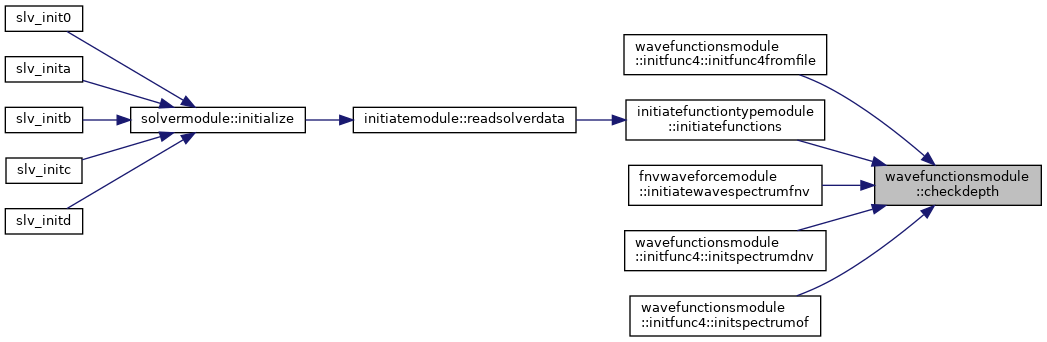

Here is the caller graph for this function:

◆ deepwave()

subroutine, public wavefunctionsmodule::deepwave	(	real(dp), dimension(:,:), intent(in)	RFUNC,
		real(dp), intent(in)	g,
		real(dp), intent(in)	x,
		real(dp), intent(in)	z,
		real(dp), intent(in)	t,
		logical, intent(in)	atSurface,
		logical, intent(in)	noWheelerStretching,
		real(dp), intent(out)	h,
		real(dp), intent(out)	u,
		real(dp), intent(out)	w,
		real(dp), intent(out)	du,
		real(dp), intent(out)	dw,
		real(dp), intent(out), optional	p
	)

Evaluates the deep water wave profile.

Parameters

[in]	RFUNC	Real wave data, output from wavefunctionsmodule::initfunc4
[in]	g	Gravity constant
[in]	x	Current horizontal position
[in]	z	Current vertical position
[in]	t	Current time
[in]	atSurface	If .true., evaluate at water surface instead of z
[in]	noWheelerStretching	If .true., switch off Wheeler stretching
[out]	h	Current wave height (depends on x and t only)
[out]	u	Current particle velocity in local x direction
[out]	w	Current particle velocity in local z direction
[out]	du	Current particle acceleration in local x direction
[out]	dw	Current particle acceleration in local z direction
[out]	p	Current dynamic pressure

This subroutine evaluates the wave profile height and associated particle velocity and acceleration at a given spatial point and time. Assuming deep water waves, i.e., 2*depth > largest wave length. z=0 represents the mean free surface level and z is positive upwards.

Reference:

O. M. Faltinsen, "Sea Loads on Ships and Offshore Structures", Table 2.1, page 16.

Author: Knut Morten Okstad

Date: 25 March 2009

Here is the caller graph for this function:

◆ deepwaves()

subroutine, public wavefunctionsmodule::deepwaves	(	real(dp), dimension(:,:,:), intent(in)	RFUNC,
		real(dp), intent(in)	g,
		real(dp), intent(in)	x,
		real(dp), intent(in)	y,
		real(dp), intent(in)	z,
		real(dp), intent(in)	t,
		logical, intent(in)	atSurface,
		logical, intent(in)	noWheelerStretching,
		real(dp), intent(out)	h,
		real(dp), intent(out)	u,
		real(dp), intent(out)	v,
		real(dp), intent(out)	w,
		real(dp), intent(out)	du,
		real(dp), intent(out)	dv,
		real(dp), intent(out)	dw,
		real(dp), intent(out), optional	p
	)

Evaluates the deep water wave profile.

Parameters

[in]	RFUNC	Real wave data, output from wavefunctionsmodule::initfunc4
[in]	g	Gravity constant
[in]	x	Current horizontal position
[in]	y	Current horizontal position normal to the x direction
[in]	z	Current vertical position
[in]	t	Current time
[in]	atSurface	If .true., evaluate at water surface instead of z
[in]	noWheelerStretching	If .true., switch off Wheeler stretching
[out]	h	Current wave height (depends on x, y and t only)
[out]	u	Current particle velocity in local x direction
[out]	v	Current particle velocity in local y direction
[out]	w	Current particle velocity in local z direction
[out]	du	Current particle acceleration in local x direction
[out]	dv	Current particle acceleration in local y direction
[out]	dw	Current particle acceleration in local z direction
[out]	p	Current dynamic pressure

This subroutine evaluates the wave profile height and associated particle velocity and acceleration at a given spatial point and time. Assuming deep water waves, i.e., 2*depth > largest wave length. z=0 represents the mean free surface level and z is positive upwards. This subroutine also accounts for wave spreading through an outer loop.

Reference:

O. M. Faltinsen, "Sea Loads on Ships and Offshore Structures", Table 2.1, page 16.

Author: Knut Morten Okstad

Date: 15 July 2015

Here is the caller graph for this function:

◆ embeddedwave()

subroutine, public wavefunctionsmodule::embeddedwave	(	integer, dimension(:), intent(in)	IFUNC,
		real(dp), dimension(:), intent(in)	RFUNC,
		real(dp), intent(in)	g,
		real(dp), intent(in)	d,
		real(dp), intent(in)	x,
		real(dp), intent(in)	z,
		real(dp), intent(in)	t,
		logical, intent(in)	atSurf,
		logical, intent(in)	noWS,
		real(dp), intent(out)	h,
		real(dp), intent(out)	u,
		real(dp), intent(out)	w,
		real(dp), intent(out)	du,
		real(dp), intent(out)	dw
	)

Evaluates a wave function with embedded nonlinear components.

Parameters

[in]	IFUNC	Integer wave data from wavefunctionsmodule::initfunc9
[in]	RFUNC	Real wave data, output from wavefunctionsmodule::initfunc9
[in]	g	Gravity constant
[in]	d	Water depth
[in]	x	Current horizontal position
[in]	z	Current vertical position
[in]	t	Current time
[in]	atSurf	If .true., evaluate at water surface instead of z
[in]	noWS	If .true., switch off Wheeler stretching
[out]	h	Current wave height (depends on x and t only)
[out]	u	Current particle velocity in local x direction
[out]	w	Current particle velocity in local z direction
[out]	du	Current particle acceleration in local x direction
[out]	dw	Current particle acceleration in local z direction

This subroutine evaluates the wave profile and the associated particle velocity and acceleration at a given spatial point and time. Assuming finite depth water waves, linear wave theory, with embedded nonlinear streamline waves at user-defined times.

Author: Knut Morten Okstad

Date: 16 May 2012

Here is the call graph for this function:

Here is the caller graph for this function:

◆ finitedepthwave()

subroutine, public wavefunctionsmodule::finitedepthwave	(	real(dp), dimension(:,:), intent(in)	RFUNC,
		real(dp), intent(in)	g,
		real(dp), intent(in)	d,
		real(dp), intent(in)	x,
		real(dp), intent(in)	z,
		real(dp), intent(in)	t,
		logical, intent(in)	atSurface,
		logical, intent(in)	noWheelerStretching,
		real(dp), intent(out)	h,
		real(dp), intent(out)	u,
		real(dp), intent(out)	w,
		real(dp), intent(out)	du,
		real(dp), intent(out)	dw,
		real(dp), intent(out), optional	p
	)

Evaluates the finite depth wave profile.

Parameters

[in]	RFUNC	Real wave data, output from wavefunctionsmodule::initfunc4
[in]	g	Gravity constant
[in]	d	Water depth
[in]	x	Current horizontal position
[in]	z	Current vertical position, positive upwards (z= 0 means free surface level)
[in]	t	Current time
[in]	atSurface	If .true., evaluate at water surface instead of z
[in]	noWheelerStretching	If .true., switch off Wheeler stretching
[out]	h	Current wave height (depends on x and t only)
[out]	u	Current particle velocity in local x direction
[out]	w	Current particle velocity in local z direction
[out]	du	Current particle acceleration in local x direction
[out]	dw	Current particle acceleration in local z direction
[out]	p	Current dynamic pressure

This subroutine evaluates the wave profile and the associated particle velocity and acceleration at a given spatial point and time. Assuming finite depth water waves and linear wave theory.

References:

O. M. Faltinsen, "Sea Loads on Ships and Offshore Structures", Table 2.1, page 16.

Author: Arne Rekdal

Date: 5 Oct 2010

Here is the caller graph for this function:

◆ finitedepthwaves()

subroutine, public wavefunctionsmodule::finitedepthwaves	(	real(dp), dimension(:,:,:), intent(in)	RFUNC,
		real(dp), intent(in)	g,
		real(dp), intent(in)	d,
		real(dp), intent(in)	x,
		real(dp), intent(in)	y,
		real(dp), intent(in)	z,
		real(dp), intent(in)	t,
		logical, intent(in)	atSurface,
		logical, intent(in)	noWheelerStretching,
		real(dp), intent(out)	h,
		real(dp), intent(out)	u,
		real(dp), intent(out)	v,
		real(dp), intent(out)	w,
		real(dp), intent(out)	du,
		real(dp), intent(out)	dv,
		real(dp), intent(out)	dw,
		real(dp), intent(out), optional	p
	)

Evaluates the finite depth wave profile.

Parameters

[in]	RFUNC	Real wave data, output from wavefunctionsmodule::initfunc4
[in]	g	Gravity constant
[in]	d	Water depth
[in]	x	Current horizontal position
[in]	y	Current horizontal position normal to the x direction
[in]	z	Current vertical position, positive upwards (z= 0 means free surface level)
[in]	t	Current time
[in]	atSurface	If .true., evaluate at water surface instead of z
[in]	noWheelerStretching	If .true., switch off Wheeler stretching
[out]	h	Current wave height (depends on x, y and t only)
[out]	u	Current particle velocity in local x direction
[out]	v	Current particle velocity in local y direction
[out]	w	Current particle velocity in local z direction
[out]	du	Current particle acceleration in local x direction
[out]	dv	Current particle acceleration in local y direction
[out]	dw	Current particle acceleration in local z direction
[out]	p	Current dynamic pressure

This subroutine evaluates the wave profile and the associated particle velocity and acceleration at a given spatial point and time. Assuming finite depth water waves and linear wave theory. This subroutine also accounts for wave spreading through an outer loop.

References:

O. M. Faltinsen, "Sea Loads on Ships and Offshore Structures", Table 2.1, page 16.

Author: Knut Morten Okstad

Date: 15 Jul 2015

Here is the caller graph for this function:

◆ initfunc4fromfile()

subroutine wavefunctionsmodule::initfunc4fromfile	(	character(len=*), intent(in)	FNAME,
		real(dp), intent(in)	G,
		real(dp), intent(in)	D,
		real(dp), dimension(:,:), intent(out)	RFUNC,
		integer, intent(out)	IERR,
		integer, intent(in), optional	RSEED
	)

private

Initializes wave function parameters from the given file.

Parameters

[in]	FNAME	Name of file to read wave parameters from.
[in]	G	Gravity constant
[in]	D	Sea depth for finite depth waves
[out]	RFUNC	Real function parameters
[out]	IERR	Error flag
[in]	RSEED	Seed for random value generator

The file may consist of either two, three or four columns of data. The number of columns may be specified on the first line as #ncol <ncol>. If the first line does not contain the keyword #ncol, a two-column file is assumed. The phase shift is then generated randomly. The wave number is calculated internally unless specified in the fourth column.

col #1 : Amplitude   [m]
col #2 : Frequency   [Hz]
col #3 : Phase shift [0,1]
col #4 : Wave number [1/m]

Author: Knut Morten Okstad

Date: 16 Jan 2007

◆ initfunc7()

subroutine, public wavefunctionsmodule::initfunc7	(	real(dp), intent(in)	H,
		real(dp), intent(in)	T,
		real(dp), intent(in)	eps,
		real(dp), intent(in)	g,
		real(dp), intent(in)	D,
		real(dp), dimension(*), intent(out)	RFUNC,
		integer, intent(out)	ierr
	)

Computes coefficients for 5th order Stokes waves.

Parameters

[in]	H	Wave height
[in]	T	Wave period
[in]	eps	Phase shift
[in]	g	Gravity constant
[in]	D	Water depth
[out]	RFUNC	Real function parameters
[out]	ierr	Error flag

The subroutine stokes5 is from the code that was downloaded from the following web-page: http://www.civil.soton.ac.uk/hydraulics/download/downloadtable.htm This web-page no longer exists (January 2015).

Author: Knut Morten Okstad

Date: 23 May 2011

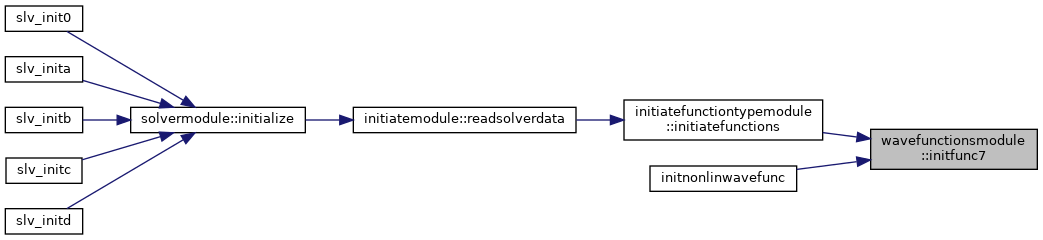

Here is the caller graph for this function:

◆ initfunc8()

subroutine, public wavefunctionsmodule::initfunc8	(	real(dp), intent(in)	H,
		real(dp), intent(in)	T,
		real(dp), intent(in)	eps,
		real(dp), intent(in)	g,
		real(dp), intent(in)	D,
		real(dp), dimension(*), intent(out)	RFUNC,
		integer, intent(out)	iOrder
	)

Solves the streamline wave equation.

Parameters

[in]	H	Wave height
[in]	T	Wave period
[in]	eps	Phase shift
[in]	g	Gravity constant
[in]	D	Water depth
[out]	RFUNC	Real function parameters
[out]	iOrder	Wave theory order (negative on error)

The subroutine cw260 is (a slightly modified version of) the code that was downloaded from this web-page: http://www.civil.soton.ac.uk/hydraulics/download/downloadtable.htm Note: This web-page no longer exists (January 2015).

Author: Knut Morten Okstad

Date: 9 May 2011

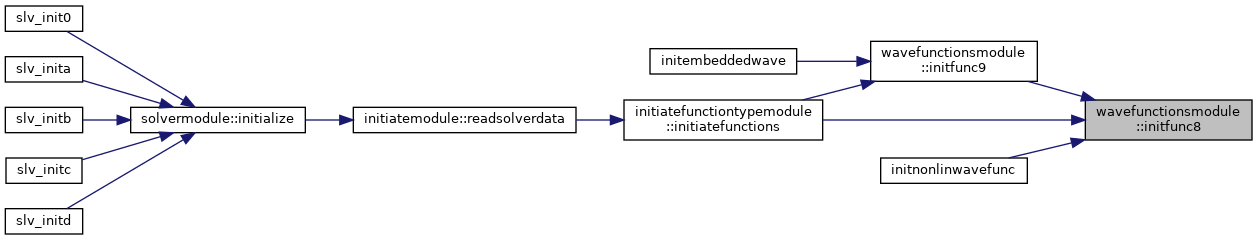

Here is the caller graph for this function:

◆ initfunc9()

subroutine, public wavefunctionsmodule::initfunc9	(	integer, intent(in)	IOP,
		integer, intent(in)	NR,
		integer, intent(in)	NC,
		real(dp), intent(in)	H3,
		real(dp), intent(in)	T1,
		real(dp), intent(in)	Gamma,
		real(dp), intent(in)	Omega0,
		real(dp), intent(in)	dOmega,
		real(dp), intent(in)	g,
		real(dp), intent(in)	D,
		real(dp), dimension(2), intent(in)	ramp,
		real(dp), dimension(:,:), intent(in)	embSLW,
		integer, dimension(:), intent(out)	IFUNC,
		real(dp), dimension(:), intent(out)	RFUNC,
		integer, intent(out)	IERR,
		integer, intent(in), optional	RSEED
	)

Initializes an irregular wave function with embedded streamlines.

Parameters

[in]	IOP	Wave spectrum model: Pierson-Moskowitz with constant frequency intervals Pierson-Moskowitz with random frequency intervals JONSWAP spectrum with constant frequency intervals JONSWAP spectrum with random frequency intervals
[in]	NR	Number of data per irregular wave component
[in]	NC	Number of irregular wave components
[in]	H3	Significant wave height (mean of the one third highest waves)
[in]	T1	Mean wave period
[in]	Gamma	Spectral peakedness
[in]	Omega0	Lowest frequency in wave spectrum
[in]	dOmega	Frequency increment between successive wave components
[in]	g	Gravity constant
[in]	D	Sea depth for finite depth waves
[in]	ramp	Ramping parameters
[in]	embSLW	Streanline data
[out]	IFUNC	Integer function parameters
[out]	RFUNC	Real function parameters
[out]	IERR	Error flag
[in]	RSEED	Seed for random value generator

This subroutine generates and irregular wave function based on statistical parameters (by using wavefunctionsmodule::initfunc4), with embedded streamline wave components at specified time locations.

Author: Knut Morten Okstad

Date: 16 May 2011

Here is the call graph for this function:

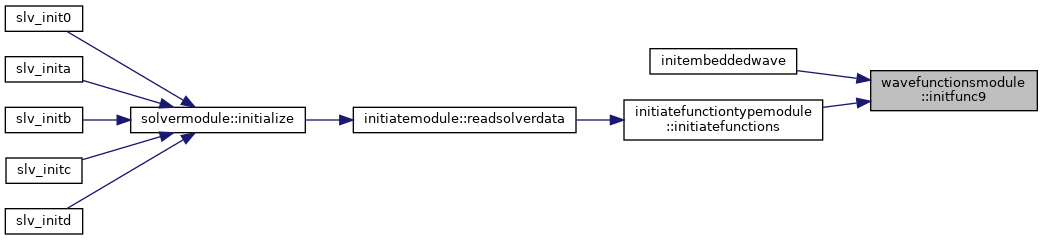

Here is the caller graph for this function:

◆ initspectrumdnv()

subroutine wavefunctionsmodule::initspectrumdnv	(	real(dp), intent(in)	Hs,
		real(dp), intent(in)	Tp,
		real(dp), intent(in)	Gamma,
		real(dp), intent(in)	Omega0,
		real(dp), intent(in)	dOmega,
		real(dp), intent(in)	g,
		real(dp), intent(in)	D,
		real(dp), dimension(:,:), intent(out)	RFUNC,
		integer, intent(out)	IERR,
		integer, intent(in), optional	RSEED,
		integer, intent(in), optional	NWdir,
		integer, intent(in), optional	SprExp
	)

Initializes a wave function based on statistical parameters.

Parameters

[in]	Hs	Significant wave height (mean of the one third highest waves)
[in]	Tp	The wave period corresponding to the peak frequency
[in]	Gamma	Spectral peakedness (see below).
[in]	Omega0	Lowest frequency in wave spectrum (if ≤ 0 use constant frequency intervals)
[in]	dOmega	Frequency increment between successive wave components
[in]	g	Gravity constant
[in]	D	Sea depth for finite depth waves
[out]	RFUNC	Real function parameters
[out]	IERR	Error flag
[in]	RSEED	Seed for random value generator
[in]	NWdir	Number of wave directions
[in]	SprExp	Wave spreading exponent (for Ndir > 1)

This subroutine generates the wave function parameters from a wave spectrum. If Gamma ≤ 1, a Pierson-Moskowitz spectrum is used, otherwise a JONSWAP spectrum depending on Gamma is used.

References:

DNV Recommended practice 205, October 2010.
S. K. Chakrabarti, "Hydrodynamics of Offshore Structures", pp. 113-116.

Author: Paul Anton Letnes

Date: 3 Jan 2013

Author: Knut Morten Okstad

Date: 20 Jul 2015

◆ initspectrumof()

subroutine wavefunctionsmodule::initspectrumof	(	integer, intent(in)	IOP,
		real(dp), intent(in)	H3,
		real(dp), intent(in)	T1,
		real(dp), intent(in)	Gamma,
		real(dp), intent(in)	Omega0,
		real(dp), intent(in)	dOmega,
		real(dp), intent(in)	g,
		real(dp), intent(in)	D,
		real(dp), dimension(:,:), intent(out)	RFUNC,
		integer, intent(out)	IERR,
		integer, intent(in), optional	RSEED
	)

Initializes a wave function based on statistical parameters.

Parameters

[in]	IOP	Wave spectrum model: Pierson-Moskowitz with constant frequency intervals Pierson-Moskowitz with random frequency intervals JONSWAP spectrum with constant frequency intervals JONSWAP spectrum with random frequency intervals
[in]	H3	Significant wave height (mean of the one third highest waves)
[in]	T1	Mean wave period
[in]	Gamma	Spectral peakedness
[in]	Omega0	Lowest frequency in wave spectrum
[in]	dOmega	Frequency increment between successive wave components
[in]	g	Gravity constant
[in]	D	Sea depth for finite depth waves
[out]	RFUNC	Real function parameters
[out]	IERR	Error flag
[in]	RSEED	Seed for random value generator

This subroutine generates the wave function parameters from a wave spectrum depending on the input argument IOP (see above).

References:

O. Faltinsen, Sea Loads on Ships and Offshore Structures, pp. 23-26.

Author: Knut Morten Okstad

Date: 29 Jan 2007

◆ stokes2wave()

subroutine, public wavefunctionsmodule::stokes2wave	(	real(dp), dimension(:,:), intent(in)	RFUNC,
		real(dp), intent(in)	g,
		real(dp), intent(in)	d,
		real(dp), intent(in)	x,
		real(dp), intent(in)	z,
		real(dp), intent(in)	t,
		logical, intent(in)	atSurface,
		logical, intent(in)	noWheelerStretching,
		real(dp), intent(out)	h,
		real(dp), intent(out)	u,
		real(dp), intent(out)	w,
		real(dp), intent(out)	du,
		real(dp), intent(out)	dw
	)

Evaluates the wave profile according to 2nd order Stokes theory.

Parameters

[in]	RFUNC	Real wave data, output from wavefunctionsmodule::initfunc4
[in]	g	Gravity constant
[in]	d	Water depth
[in]	x	Current horizontal position
[in]	z	Current vertical position, positive upwards (z= 0 means free surface level)
[in]	t	Current time
[in]	atSurface	If .true., evaluate at water surface instead of z
[in]	noWheelerStretching	If .true., switch off Wheeler stretching
[out]	h	Current wave height (depends on x, y and t only)
[out]	u	Current particle velocity in local x direction
[out]	w	Current particle velocity in local z direction
[out]	du	Current particle acceleration in local x direction
[out]	dw	Current particle acceleration in local z direction

References:

J. F. Wilson, "Dynamics of Offshore Structures", Table 3.2, page 71.

Author: Knut Morten Okstad

Date: 4 Apr 2011

Here is the caller graph for this function:

◆ stokes5wave()

subroutine, public wavefunctionsmodule::stokes5wave	(	real(dp), dimension(:), intent(in)	RFUNC,
		real(dp), intent(in)	d,
		real(dp), intent(in)	x,
		real(dp), intent(in)	z,
		real(dp), intent(in)	t,
		logical, intent(in)	atSurface,
		real(dp), intent(out)	h,
		real(dp), intent(out)	u,
		real(dp), intent(out)	w,
		real(dp), intent(out)	du,
		real(dp), intent(out)	dw
	)

Evaluates the wave profile according to 5th order Stokes theory.

Parameters

[in]	RFUNC	Real wave data, output from wavefunctionsmodule::initfunc7
[in]	d	Water depth
[in]	x	Current horizontal position
[in]	z	Current vertical position, positive upwards (z= 0 means free surface level)
[in]	t	Current time
[in]	atSurface	If .true., evaluate at water surface instead of z
[out]	h	Current wave height (depends on x and t only)
[out]	u	Current particle velocity in local x direction
[out]	w	Current particle velocity in local z direction
[out]	du	Current particle acceleration in local x direction
[out]	dw	Current particle acceleration in local z direction

Based on code from j.r.c.nosp@m.hapl.nosp@m.in@so.nosp@m.ton..nosp@m.ac.uk See http://www.civil.soton.ac.uk/hydraulics/download/downloadtable.htm Note: This web-page no longer exists (January 2015).

Author: Knut Morten Okstad

Date: 23 May 2011

Here is the caller graph for this function:

◆ streamwave()

subroutine, public wavefunctionsmodule::streamwave	(	real(dp), dimension(:), intent(in)	RFUNC,
		real(dp), intent(in)	d,
		real(dp), intent(in)	x,
		real(dp), intent(in)	z,
		real(dp), intent(in)	t,
		logical, intent(in)	atSurface,
		real(dp), intent(out)	h,
		real(dp), intent(out)	u,
		real(dp), intent(out)	w,
		real(dp), intent(out)	du,
		real(dp), intent(out)	dw
	)

Evaluates the nonlinear wave profile according to streamline theory.

Parameters

[in]	RFUNC	Real wave data, output from wavefunctionsmodule::initfunc8
[in]	d	Water depth
[in]	x	Current horizontal position
[in]	z	Current vertical position, positive upwards (z= 0 means free surface level)
[in]	t	Current time
[in]	atSurface	If .true., evaluate at water surface instead of z
[out]	h	Current wave height (depends on x, y and t only)
[out]	u	Current particle velocity in local x direction
[out]	w	Current particle velocity in local z direction
[out]	du	Current particle acceleration in local x direction
[out]	dw	Current particle acceleration in local z direction

This subroutine evaluates the wave profile and the associated particle velocity and acceleration at a given spatial point and time. Assuming nonlinear streamline wave theory.

Based on code from j.r.c.nosp@m.hapl.nosp@m.in@so.nosp@m.ton..nosp@m.ac.uk See http://www.civil.soton.ac.uk/hydraulics/download/downloadtable.htm Note: This web-page no longer exists (January 2015).

Author: Knut Morten Okstad

Date: 9 May 2011

Here is the caller graph for this function:

◆ userdefinedwave()

subroutine, public wavefunctionsmodule::userdefinedwave	(	integer, intent(in)	ikf,
		integer, dimension(3), intent(in)	IFUNC,
		real(dp), dimension(:), intent(in)	RFUNC,
		real(dp), intent(in)	g,
		real(dp), intent(in)	d,
		real(dp), dimension(4), intent(in)	Xt,
		logical, intent(in)	atSurf,
		real(dp), intent(out)	h,
		real(dp), dimension(3), intent(out)	u,
		real(dp), dimension(3), intent(out)	du,
		integer, intent(out)	ierr
	)

Evaluates the user-defined wave profile.

Parameters

[in]	IKF	Function identifier
[in]	IFUNC	Integer wave data
[in]	RFUNC	Real wave data
[in]	g	Gravity constant
[in]	d	Water depth
[in]	Xt	Current position and time
[in]	atSurf	If .true., evaluate at water surface instead of z
[out]	h	Current wave height (depends on x and t only)
[out]	u	Current particle velocity
[out]	du	Current particle acceleration
[out]	ierr	Error flag

This subroutine evaluates the wave height and associated particle velocity and acceleration at a given spatial point and time, by invoking a user-defined function from a separate plugin.

Author: Knut Morten Okstad

Date: 22 Jun 2016

Here is the caller graph for this function:

◆ wavenumber()

real(dp) function, public wavefunctionsmodule::wavenumber	(	real(dp), intent(in)	omega,
		real(dp), intent(in)	g,
		real(dp), intent(in)	d
	)

Calculates the wave number for finite depth waves.

Parameters

[in]	omega	Angular frequency
[in]	g	Gravity constant
[in]	d	Water depth

Returns: The wave number k

The wave number is calculated by solving a nonlinear equation by Newton-Raphson iterations. If the water depth is zero, infinite depth is assumed and the wave number is calculated explcitly.

Author: Arne Rekdal

Date: 5 Oct 2010

Here is the caller graph for this function:

Variable Documentation

◆ dp

integer, parameter, public wavefunctionsmodule::dp = kind(1.0D0)

8-byte real (double)

◆ pi

real(dp), parameter wavefunctionsmodule::pi = 3.141592653589793238_dp

private

The value of π.

◆ twopi

real(dp), parameter, public wavefunctionsmodule::twopi = pi+pi

The value of 2π.

Data Types

Functions/Subroutines

Variables

Detailed Description

Function/Subroutine Documentation

◆ checkdepth()

◆ deepwave()

◆ deepwaves()

◆ embeddedwave()

◆ finitedepthwave()

◆ finitedepthwaves()

◆ initfunc4fromfile()

◆ initfunc7()

◆ initfunc8()

◆ initfunc9()

◆ initspectrumdnv()

◆ initspectrumof()

◆ stokes2wave()

◆ stokes5wave()

◆ streamwave()

◆ userdefinedwave()

◆ wavenumber()

Variable Documentation

◆ dp

◆ pi

◆ twopi
