Data type representing a control input gradient. More...

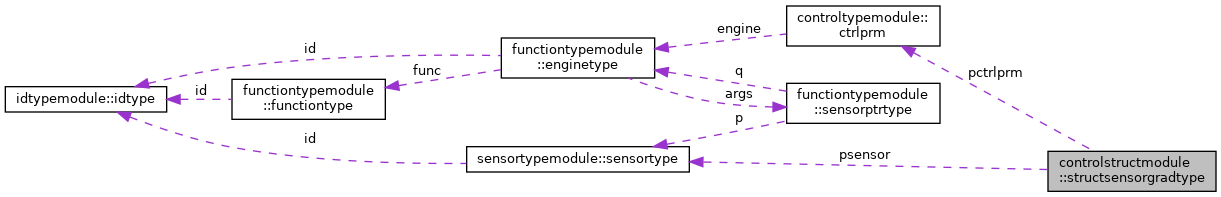

Collaboration diagram for controlstructmodule::structsensorgradtype:
Public Attributes | |
| integer | icin |
| Which control input element this sensor is connected to. More... | |
| integer | whichvreg |
| Which VREG this is connected to (not necessarily equal to j_index) More... | |
| integer, dimension(2) | lnode |
| Local node number for the element matrices. More... | |
| integer, dimension(2) | dofstart |
| Local dof start for this node. More... | |
| integer, dimension(2) | ndofs |
| number of dofs for this node More... | |
| type(ctrlprm), pointer | pctrlprm |
| Pointer to the control parameter which has structural input. More... | |
| type(sensortype), pointer | psensor |
| Pointer to the actual sensor. More... | |
Detailed Description
Data type representing a control input gradient.
Member Data Documentation
◆ dofstart
| integer, dimension(2) controlstructmodule::structsensorgradtype::dofstart |
Local dof start for this node.
◆ icin
| integer controlstructmodule::structsensorgradtype::icin |
Which control input element this sensor is connected to.
- j_index i.e. second (column) index in Jacobi_CinToCout(:,:)
- i_index i.e. first (row) index in Jacobi_SensorToCIn(:,:)
◆ lnode
| integer, dimension(2) controlstructmodule::structsensorgradtype::lnode |
Local node number for the element matrices.
◆ ndofs
| integer, dimension(2) controlstructmodule::structsensorgradtype::ndofs |
number of dofs for this node
◆ pctrlprm
| type(ctrlprm), pointer controlstructmodule::structsensorgradtype::pctrlprm |
Pointer to the control parameter which has structural input.
◆ psensor
| type(sensortype), pointer controlstructmodule::structsensorgradtype::psensor |
Pointer to the actual sensor.
◆ whichvreg
| integer controlstructmodule::structsensorgradtype::whichvreg |
Which VREG this is connected to (not necessarily equal to j_index)
The documentation for this type was generated from the following file:
- src/vpmSolver/controlStructModule.f90
